Semiconductor Heatsink Thermoelectric Cooler Cooling Peltier

Semiconductor Heatsink Thermoelectric Cooler Cooling Peltier
Price: US $ 52-55/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SD-020-12
Name: Semiconductor Heatsink Thermoelectric Cooler Cooli
Max Cooling Capacity: 40W
Max Working Voltage: 27V
Input Power: 90W
Weight: 1.2kg
Working Voltage: 24V
Max Current: 3.8A
Lifespan Of The Fan: 40000h
Fans Species: Single-Speed Fan
Working Temperature: -10 to 50 Degrees Celsius
Type: Cabinet Air Conditioner
Operating Voltage: 230 VAC
Mounting: Wall/Window Mount
Certification: CE
Condition: New

Product Description

Semiconductor Heatsink Thermoelectric Cooler Cooling Peltier
Product descriptioins:

Thermoelectric cabinet coolers are the ideal solution to cool and remove heat from small cabinets, control panels and consoles. It's technology and design make them especially suitable for harsh environments like food industry or traffic engineering.  The cabinet coolers utilize solid state peltier technology and can be operated in vertical orientation. Separation of internal air circulation and ambient external air flow and a hermetical seal at the flange guarantee protection class IP55.

Cooling capacities range from 20 to 400 W (can be customize)

The thermoelectric dehumidifiers create a local condensation surface,  collect and optionally dispose of the condensate to the outside of a cabinet. Condensation causes corrosion and malfunction of electrical switchgear. The thermoelectric dehumidifiers consume only 50 W and have a much higher energy efficiency as compared to conventionally used heaters.



Thermoelectric air conditioner operate by the Peltier effect (which also goes by the more general name thermoelectric effect). The device has two sides, and when DC current flows through the device, it brings heat from one side to the other, so that one side gets cooler while the other gets hotter. The "hot" side is attached to a heat sink so that it remains at ambient temperature, while the cool side goes below room temperature. In some applications, multiple coolers can be cascaded together for lower temperature.

Technical Data:

Model NoCooling capacityOperating voltageWorking currentMax voltageRated power
SD-020-1220W12V7.5A17V45W
SD-030-1230W12V7.5A17V65W
SD-040-1240W12V7.5A17V85W
SD-050-1250W12V7.5A17V105W
SD-060-1260W12V10.5A17V125W
SD-070-1270W12V12.5A17V145W
SD-080-1280W12V12.5A17V165W
SD-090-1290W12V12.5A17V185W
SD-100-48100W48V5.5A52V210W
SD-150-48150W48V7.5A52V315W
SD-200-48200W48V9.5A52V410W

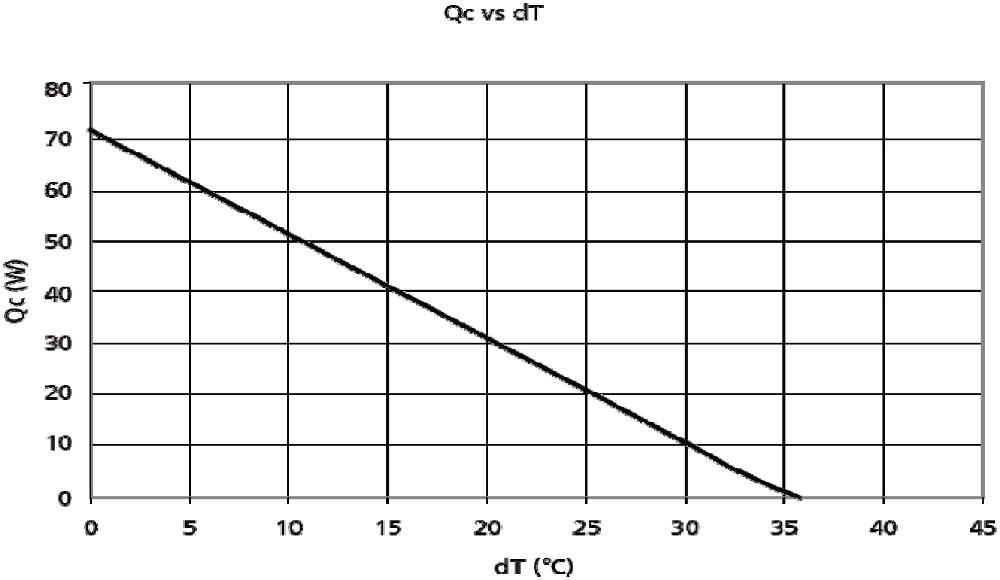

Performance curve:

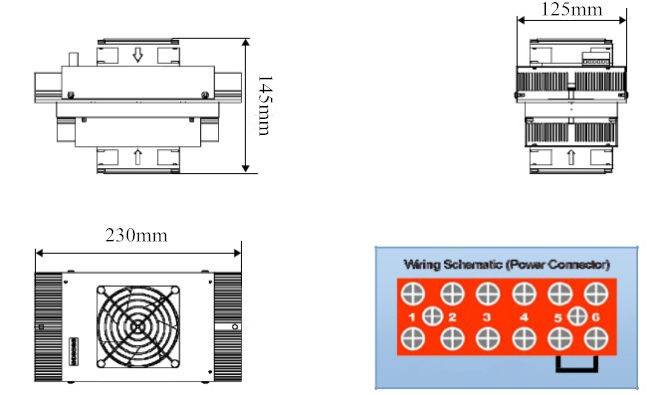

Drawing

Installation:

1. The hot side of the thermoelectric cooler is mounted on the outside of the box

2. Use four M4 screws with flat washers to lock and  fix the air cooler;

3. Products need to be installed vertically(Heat sink fin is vertical;

4. Avoid to external shock and damage.

Fan blades and heat sink need to be kept clean to reduce the risk of heatsink overheating and

cooling power decrease.
Application:

Thermoelectric cooler can be widely developed for enclosed area climate control such as telecom outdoor cabinet, battery cabinet, industry control cabinet, precision instrument, telecommunication parts, medicine equipment, military equipment, etc.
