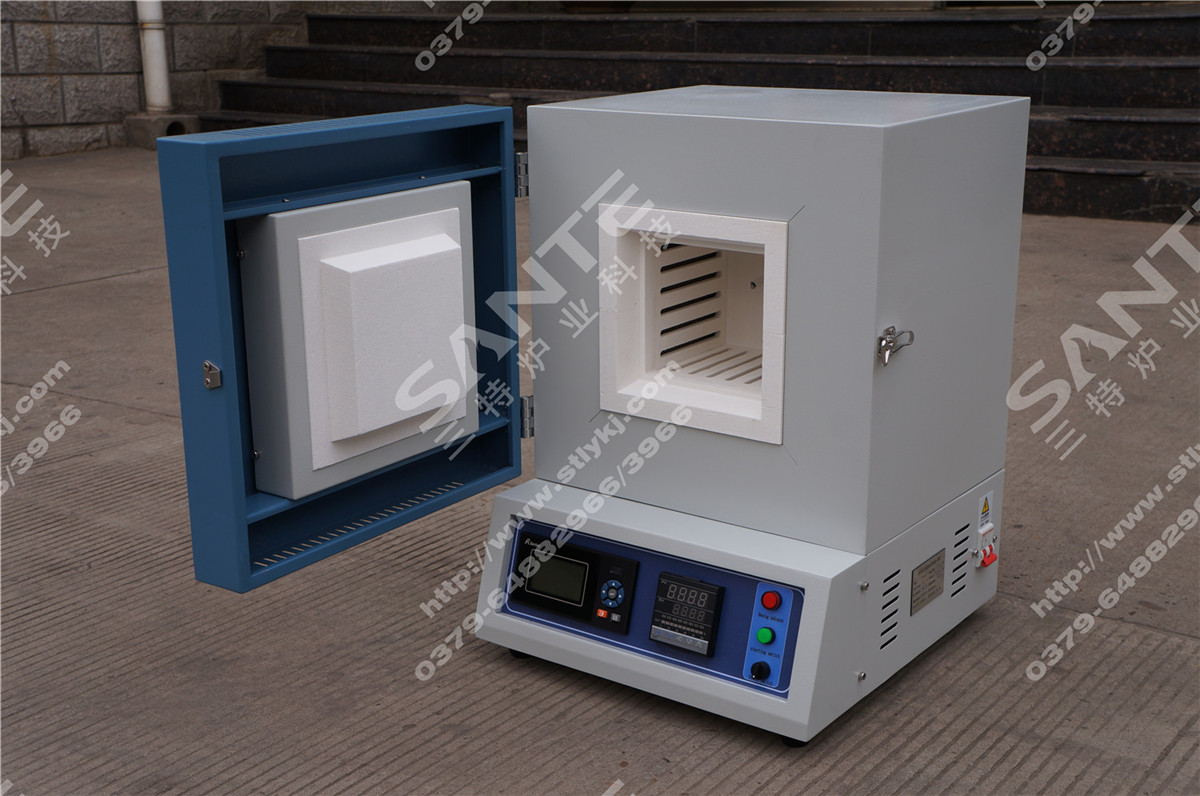

Semiconductor Material Heating Furnace with Sic Rod Embedded Chamber

Prod Model:	STM
Product Name:	Laboratory Furnace
Max.Temperature:	1400c
Operating Temperature:	1350c
Chamber Size:	300X500X300mm
Heating Element:	Silicon Carbide Rod
Thermocouple:	S Type
Heating Rate:	0-30c/Minute

Product Description

Semiconductor Material Heating Furnace with SIC Rod Embedded Chamber


Sante muffle furnaces are applied to Colleges, Universities and Research institutions, process the sintering of cermet material and ceramic material, heat treatment of some monocrystal, refractory material reheat shrinkage researching under high temperature, and used for small batch production.
Main features:
1. Furnace chamber material use vacuum formed Al2O3 ceramic fiber materials, no powder pull off under high temperature, small heat capacity, and energy saving more than 50%.
2. Heavy duty double layer structure. Lower teperature in outside case.
3. Microcomputer PID control module, enabling precise temperature control and constant temperature requirements
4. Temperature control with 2groups/16 segments programmable.
5. Built in over temperature alarm and protection allows for operation without attendant.
Specifications:

Maximum temperature	1300ºC(for short time)
Working temperature	1250ºC (continuous)
Heating rate	10-30ºC/min, it will take 15-30minutes from room temperature to 1300ºC
Chamber size	Chamber size:300*500*300)(L*W*H) capacity:45Liter
Temperature control	16 steps programmable and PID automatic control
Voltage	AC 380V 3Phase,50/60 Hz
Power	12KW
Heating element	silicon carbide rod
Thermocouple	S-type
Standard accessories	high temperature gloves 1 pair, crucible tong 1pc, Al2O3 sample block 1pc,power line 1 pc
Warranty	One year limited warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty.)

Models:

Model	Volume	Chamber size W×L×H	Max. temperature	Operating temp.	Voltage	Power	Heating element	Temp. Precision
STM-3-13	3L	150×150×150mm	1300ºC	1250ºC	220V	2KW	SIC rod	±1ºC
STM-8-13	8L	200×200×200mm	1300ºC	1250ºC	220V	5KW	SIC rod	±1ºC
STM-18-13	18L	250×500×250mm	1300ºC	1250ºC	220V	6KW	SIC rod	±1ºC
STM-36-13	36L	300×400×300mm	1300ºC	1250ºC	380V	10KW	SIC rod	±1ºC
STM-45-13	45 L	300×500×300mm	1300ºC	1250ºC	380V	12KW	SIC rod	±1ºC
STM-3-14	3L	150×150×150mm	1400ºC	1350ºC	220V	2KW	SIC rod	±1ºC
STM-8-14	8L	200×200×200mm	1400ºC	1350ºC	220V	5KW	SIC rod	±1ºC
STM-18-14	18L	250×500×250mm	1400ºC	1350ºC	380V	6KW	SIC rod	±1ºC
STM-36-14	36L	300×400×300mm	1400ºC	1350ºC	380V	10KW	SIC rod	±1ºC
STM-45-14	45 L	300×500×300mm	1400ºC	1350ºC	380V	12KW	SIC rod	±1ºC

Options:
Optional large screen paperless recorder, to achieve real-time temperature curve recorded with a memory card of experimental data analysis and printing.
Optional installation of air intake, can feed into air and inert gas.
Also install an exhaust chimney connecting stainless steel bellows, so that the furnace high temperature volatile toxic gas emissions to a specified location.

Packaging & Shipping
1) Packing:  from the inside to outer packaging, is foam sponge, carton, wooden case.
2) Transport modes: Sea or Air transportation, TNT, DHL express or FedEx.
3) Please make sure the 'shipping address' is your confirmed address.
4) We do check everything in good condition before we ship your parcel out.
5) We will process your order ASAP after payment is confirmed.
About us:
1. We are a leading and professional enterprise that specializes in the manufacture of high temperature muffle Furnaces
2. Our products have a number of technical patents and have passed the ISO9001 quality system certification and CE certificate.
3. Our products covers 1000/1200/1300/1400/1600/1700ºC muffle furnace, tube furnace, vacuum box furnace, dual(multi) zone tube furnace, industrial furnace, elevator/bottom loading muffle furnace, car-type bottom furnace, etc.
4. After ten years of development, take scientific and strict management system and first-class technology strength, Sante Furnace have provided lots of muffle furnaces for colleges and universities, research institutes, petrochemical plants, petroleum, smelting, casting, machinery manufacturing, military industry, and other industries in China and overseas.
