Semiconductor PTC Fan Heater Cr027

Name: Semiconductor PTC Fan Heater Cr027
Brand: all-electronics-online.com
SKU: 782646115
Availability: InStock
Rating: 4.8 (75 reviews)

Price:	US $ 60-72/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CR027
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Heating Element:	Cartridge
Heater Body:	PTC Aluminium
Wide Voltage:	120-240VAC/DC
Fixing:	Variable
IP Class:	IP20
Installation:	Portable
Ventilation:	Without Ventilation

Product Description

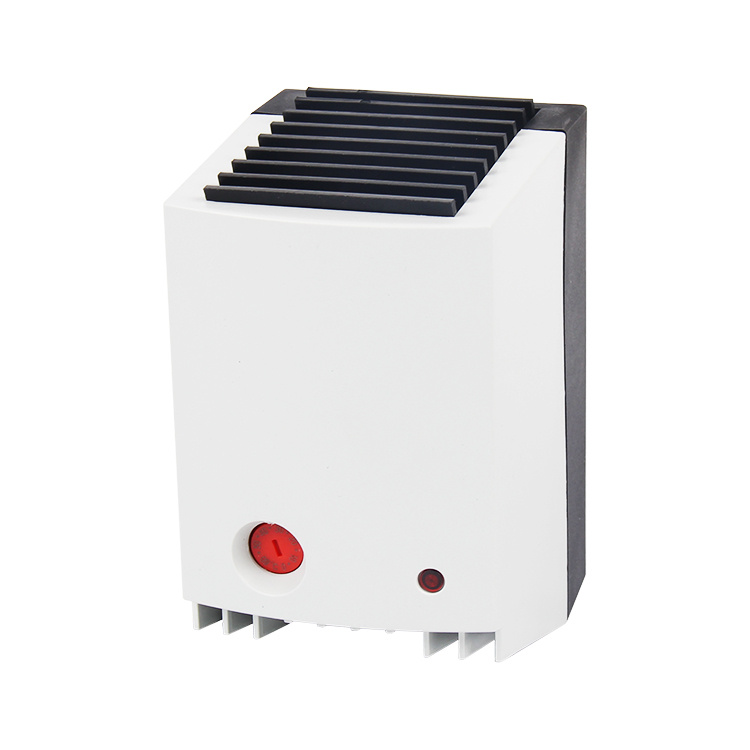

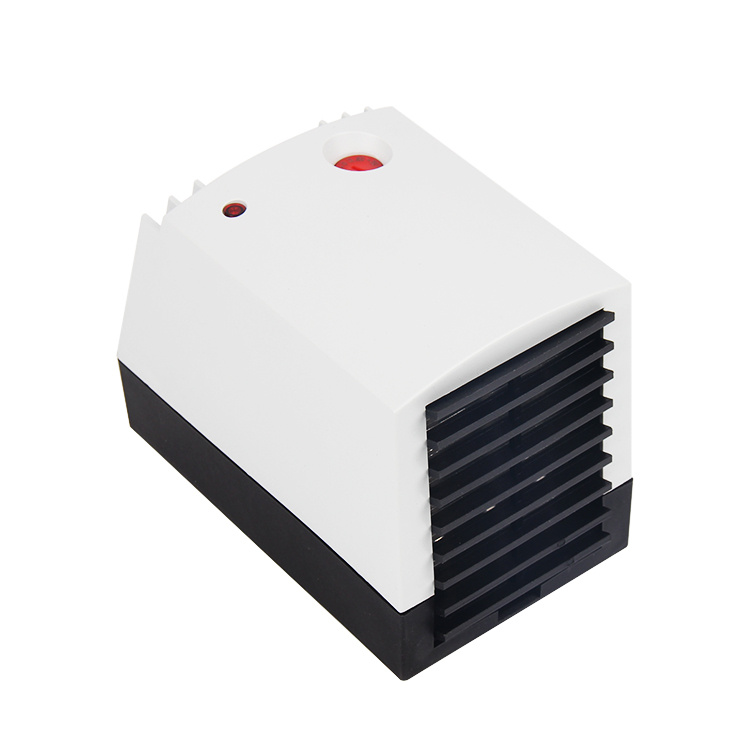

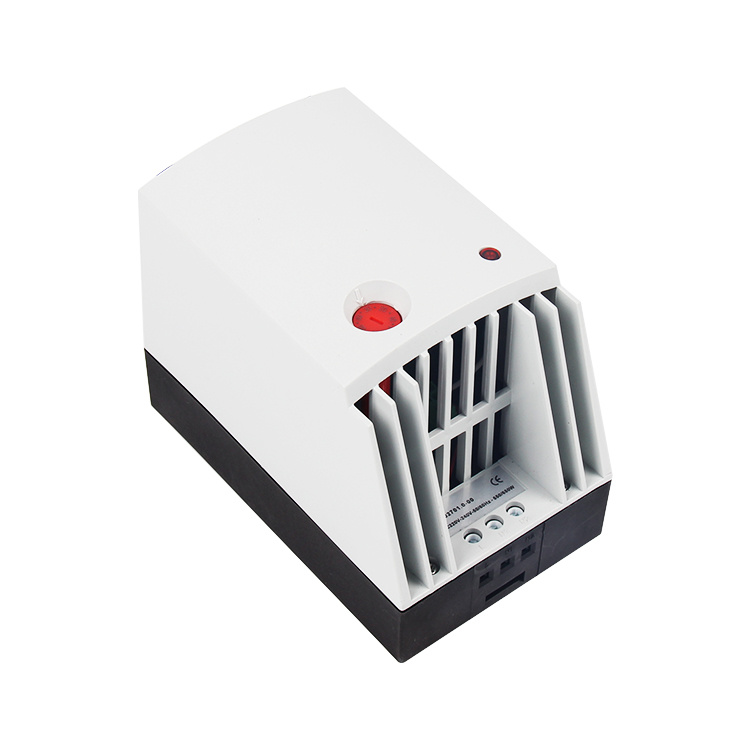

Semiconductor Stego Electric Industrial Fan Heater CR027 Up to 650W

Stego Industrial Fan Heater
1 . Compact Heater
2 . Heating capacity adjust to ambient temperature
3 . Adjustable temperature range
4 . Temperature safety cut-out
5 . Clip Fixing
6. Optical indicator

Semiconductor fan heaters prevent formation of condensation and ensure even temperature in switch and control equipment . The built-in regulator is used to set the desired temperature

Temperature Safety cut-out	To protect against over heating in case of fan failure
Heating Element	High performance cartridge
Heater Body	PTC resistor , self regulating and temperature limiting

Axial fan ball bearing	airflow see table service life 50,000h
Connection Mounting	2-pole screw connector 2.5mm² with clamping torque 0.8Nm max. 35mm DIN Rail , vertical
Storage	-45-70°C (-49 to +158°F)
IP Class	IP20 / II (double insulated)
Optical indicator	Thermostat control lamp

Art No.	Voltage	heating capacity(50hz)	heating capacity(60hz)	Inrush current max	Airflow,free flow	setting range	Weight
02700.0-00	220-240VAC ,50/60Hz	475W	550W	11.0A	35m³/h	0-60ºC	0.9Kgs
02701.0-00	220-240VAC ,50/60Hz	550W	650W	13.0A	45m³/h	0-60ºC	1.1Kgs
02700.9-00	100-120VAC ,50/60Hz	400W	550W	14.0A	35m³/h	32-140ºF	0.9Kgs
02701.9-00	100-120VAC ,50/60Hz	510W	650W	15.0A	45m³/h	32-140ºF	1.1Kgs
