Stego Semiconductor PTC Heater Hg 140

Name: Stego Semiconductor PTC Heater Hg 140
Brand: all-electronics-online.com
SKU: 782322785
Availability: InStock
Rating: 4.8 (114 reviews)

Price:	US $ 5.5-6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HG 140
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Heating Element:	PTC
Heater Body:	Aluminium
Wide Voltage:	120-240VAC/DC
Fixing:	35mm DIN Rail
IP Class:	IP54
Installation:	Portable
Ventilation:	Without Ventilation

Product Description

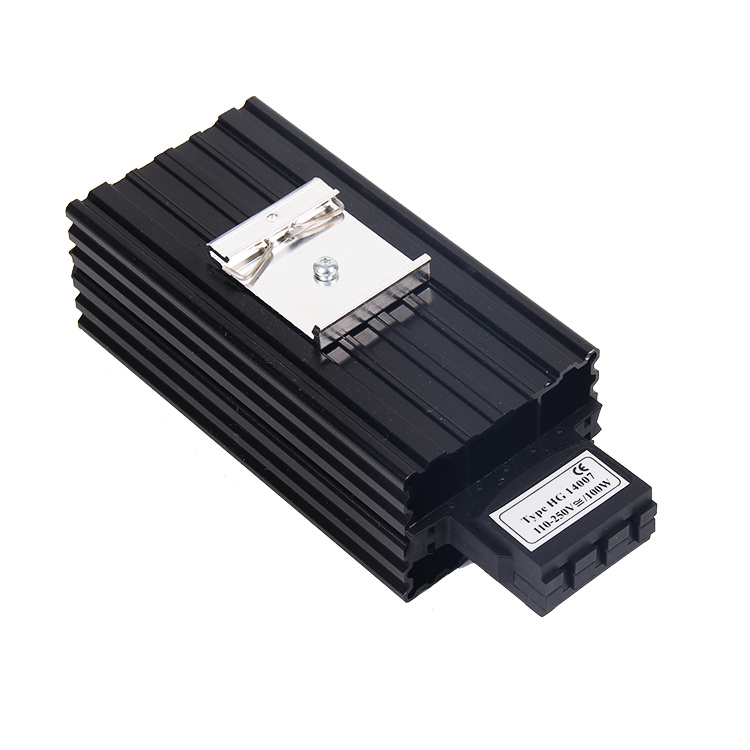

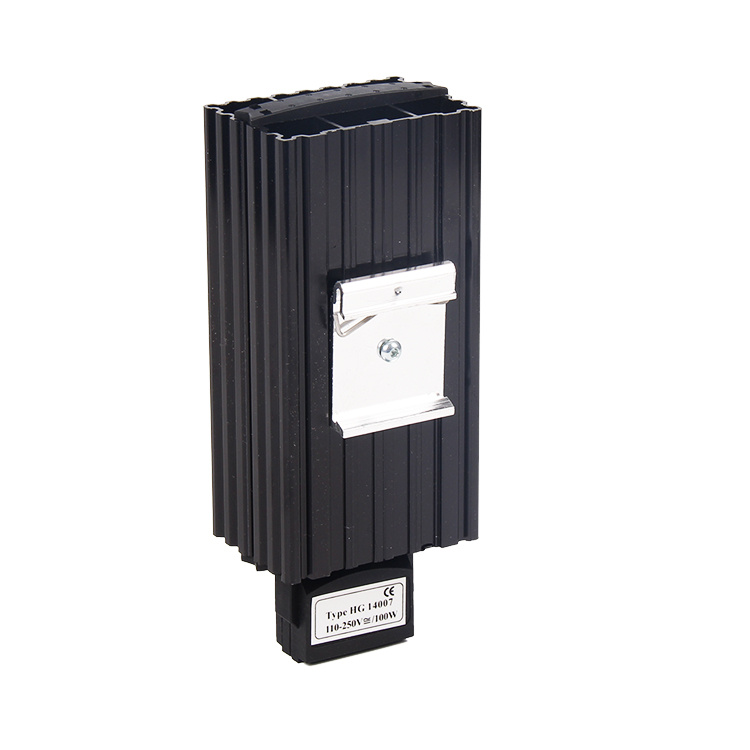

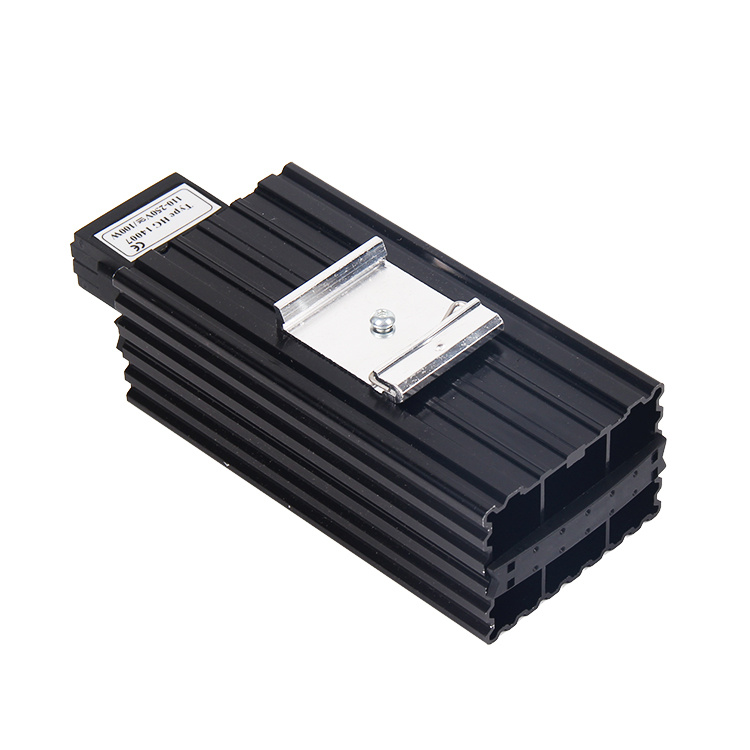

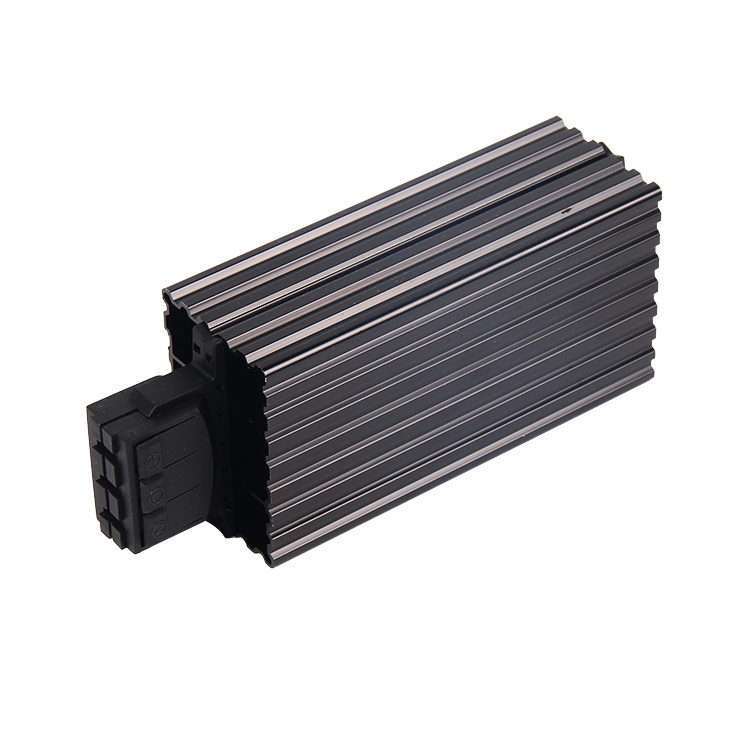

Semiconductor Electric Heater , Stego Industrial Heater For Cabinet HG 140 Series 15W-150W

Stego Industrial Heater
1 . Temperature Limiting
2 . Wide Voltage range
3 . Dynamic heating up
4 . Energy Saving
5 . Clip Fixing
6 . Pressure clamp connectors
7 . Quick Installation

These heaters are used in enclosure where damage from condensation must be prevented or where the temperature may not fall below a mini value . The aluminium porfile heater body design has a chimmey effect and distributes the heater evently . The pressure clamp connectors save time and simplely installation

Operating Voltage	120-240V AC/DC ( Min 110V , Max 265V )
Heating Element	PTC resistor , self regulating and tmperature limiting
Heater Body	Aluminium profile anodised
Connecting	3 pressure clamp for stranded wire 0.5-1.5mm2
Fitting Position	35mm DIN Rail , vertical
Dimensions	length 45mm
Storage	-45-70°C (-49 to +158°F)
IP Class	IP54 / II (double insulated)
Accessories	Screw Fixing

Products Details

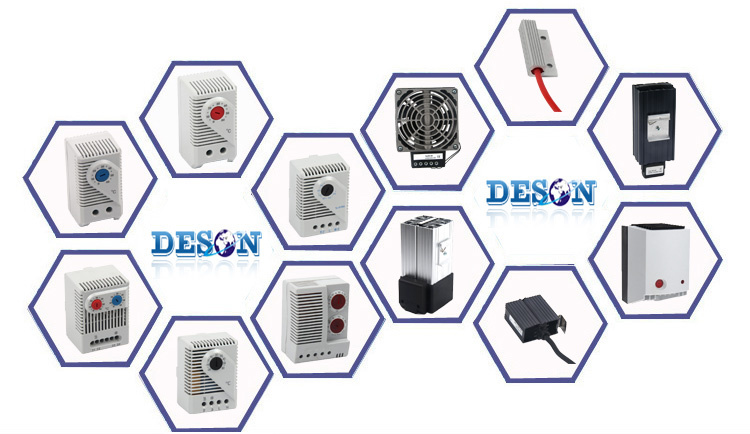

Related Products
