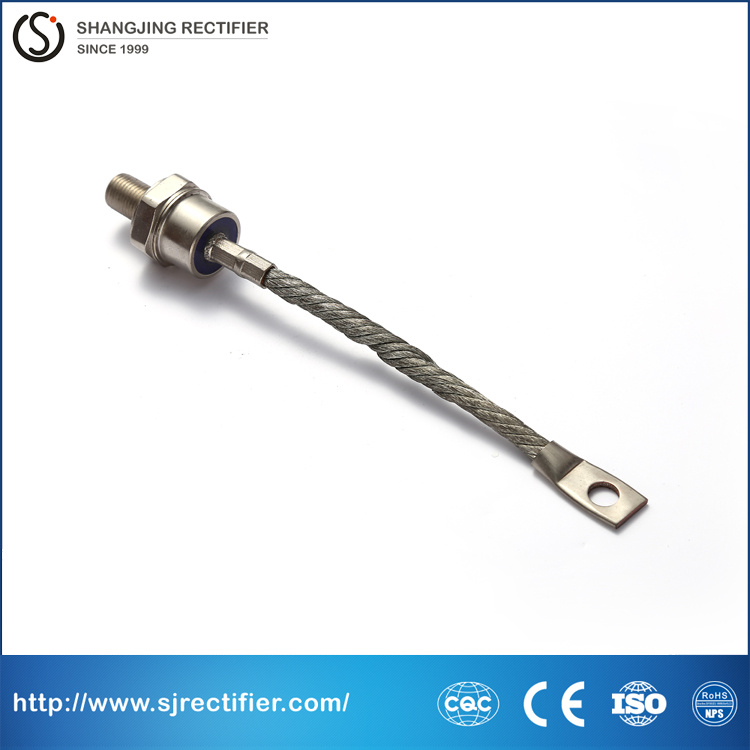

Semikron Type Standard Recovery Diode

Name: Semikron Type Standard Recovery Diode
Brand: all-electronics-online.com
SKU: 663672351
Availability: InStock
Rating: 4.6 (147 reviews)

Price:	US $ 3-38/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SKR240
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm:	200-1800V
Vfm:	1.25V
Irrm:	15mA
Ifm:	720A
If(AV):	240A
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Metal Ceramic Seal
Application:	Machine Tool Controls, Battery Charges,Converters,
Model:	Skr240
Batch Number:	2016+
Brand:	Shangjing

Product Description

Features
High surge current capability
Stud cathode and stud anode version
Wide current range
Inch device available

Typical Applications
Machine tool controls
Battery charges
Converters
Motor control
Welders
Phase control applications in converters
Lighting circuits

Type	I_F(AV)	V_FM/I_FM		I_F(RMS)	V_RRM	I_RRM	R_jc	T_j	M2	Wt	Outline
	T_HS55° C	25° C
	A	V	A	A	V	mA	° C/W	° C	kN	kg
SKN26	25	1.15	75	40	200-1200	≤ 12	≤ 1.2	-40 ~ +125	≤ 1.0	0.010	SKD4
SKR26	25	1.15	75	40	200-1200	≤ 12	≤ 1.2		≤ 1.0	0.010	SKD4
SKN46	45	1.30	135	75	200-1600	≤ 10	≤ 1.0		≤ 2.0	0.025	SKD5
SKR46	45	1.30	135	75	200-1600	≤ 10	≤ 1.0		≤ 2.0	0.025
SKN71	70	1.35	210	115	200-1600	≤ 12	≤ 0.8		≤ 2.0	0.025
SKR71	70	1.35	210	115	200-1600	≤ 12	≤ 0.8		≤ 2.0	0.025
SKN45	45	1.30	135	75	200-1600	≤ 10	≤ 1.0		≤ 2.0	0.050	SKD5L
SKR45	45	1.30	135	75	200-1600	≤ 10	≤ 1.0		≤ 2.0	0.050
SKN70	70	1.35	210	115	200-1600	≤ 12	≤ 0.8		≤ 2.0	0.050
SKR70	70	1.35	210	115	200-1600	≤ 12	≤ 0.8		≤ 2.0	0.050
SKN100	100	1.50	300	160	200-1600	≤ 15	≤ 0.5		≤ 12	0.120	SKD8
SKR100	100	1.50	300	160	200-1600	≤ 15	≤ 0.5		≤ 12	0.120
SKN130	130	1.40	390	210	200-1600	≤ 15	≤ 0.4		≤ 12	0.120
SKR130	130	1.40	390	210	200-1600	≤ 15	≤ 0.4		≤ 12	0.120
SKN240	240	1.25	720	400	200-1800	≤ 15	≤ 0.2		≤ 25	0.240	SKD9
SKR240	240	1.25	720	400	200-1800	≤ 15	≤ 0.2		≤ 25	0.240	SKD9
SKN320	320	1.40	960	210	200-1800	≤ 20	≤ 0.1		≤ 30	0.450	SKD10

China Shangjing Rectifier Co., Ltd. Was co-founded by China DELIXI Group, Shanghai Rectifier Co., Ltd. And Jingtai Electric Co., Ltd. In 1999. As one of the most professional manufacturers of power semiconductors and silicon rectifying whole set equipments, as well as the manufacturer for timer switch ( programmable timer switch, digital timer switch mechanical timer switch ) and circuit breaker ( mini circuit breaker, DPN miniatire circuit breaker, DPNL residual current circuit breaker etc) our company has been devoted to provide the high quality electronicsr products for our customers all over the world.

Shangjing Rectifier Co., Ltd. is located in Liushi Town which is well known as the "Capital of Electric City" in China. We are very close to the Wenzhou Airport and the deep-water sea port, which makes it very easy for us to reach our customers from the whole world.

Our company has been certified by China Industrial Department and we have got CE certificate. Furthermore, our products are compliant to the latest RoHS directions.

We have brought advanced technologies and equipment from abroad and kept improving our management and products quality. We stick the spirit of "Chasing for high quality and Servicing our clients with all our heart and credibility", we have gained a lot of honors like "AAA class China quality & credibility company", "member of China Electric Industry Association", etc. We have been exporting our products to Europe, South and North America, Middle East, Africa and earned a lot of good feedback.

We hope our high quality products and service will be bringing successful future to all our customers.
