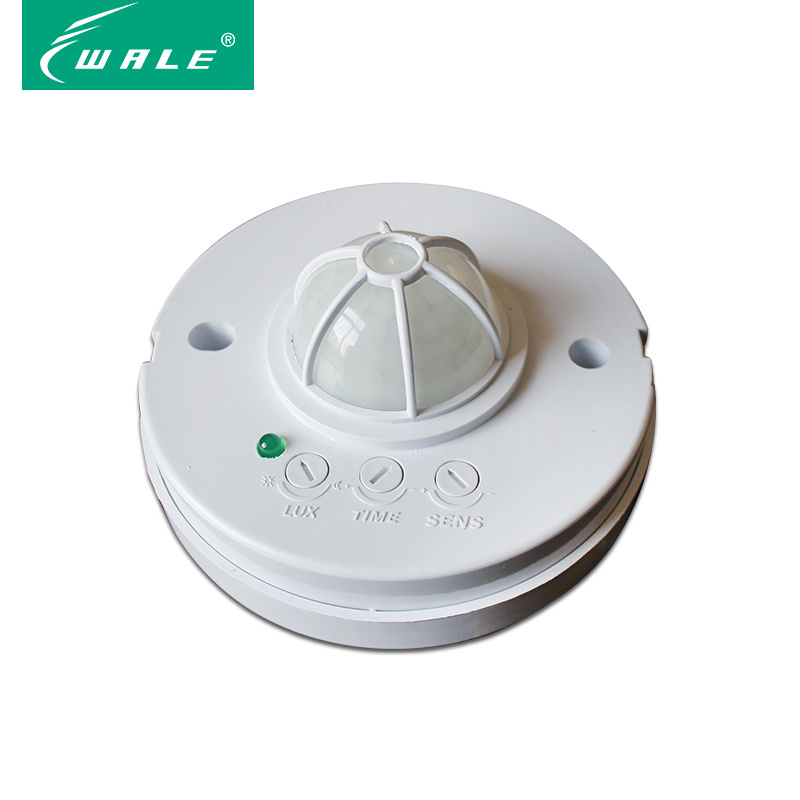

Sensor Infrared Induction Switch for Light (WL-KG-1A)

Name: Sensor Infrared Induction Switch for Light (WL-KG-1A)
Brand: all-electronics-online.com
SKU: 762482815
Availability: InStock
Rating: 5 (56 reviews)

Price:	US $ 4-4.5/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WL-KG-1A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Wl-Kg-1A
Warranty:	3 Years
Detection Distance:	5m Max(<24°c)
Detection Angle:	180 Degree
Power Frequency:	50~60Hz
Type:	Infrared Sensor Switch
Principle:	Infrared
Wires:	Two-Wires
Standard:	Standard
Certification:	CE

Product Description

Technical Specification

Model	KG-1B
Power source	220V/AC-240V/AC, 100V/AC-130V/AC optional
Power Frequency	50-60Hz
Rated Load	800W(100~130V/AC) 1200W(220~240V/AC) 1500W(100~130V/AC) 3000W(220~240V/AC)
Working Voltage	DC9-16V
Working Current	15mA
Detection Angle	360°
Detection Distance	15m
Installation height	1.5-3.5m
Installation mode	Ceiling mounted
Time Delay	5Sec.~9Min.
Detection Motion Speed	0.6-1.5m/s
Anti RF interference	30V/m 10MHz-1GHz
Anti-white light interference	>900LUX
Alarm output	NC , 100mA/DC12V max
Temper output	NC , 100mA/DC12V max
Operating Temperature	-10ºC~ +55ºC
Relative Humidity	≤95% (non-condensing)
Unit size	Φ135*24mm

Established in Shenzhen on July 25, 2006, Shenzhen Wale Group Co., Ltd is a national high-tech enterprise mainly on researching, developing and manufacturing high-tech products for security GSM home alarm, terrorism and violence, quantum detection, and energy environment, as well as a solution provider about industry data analyzing

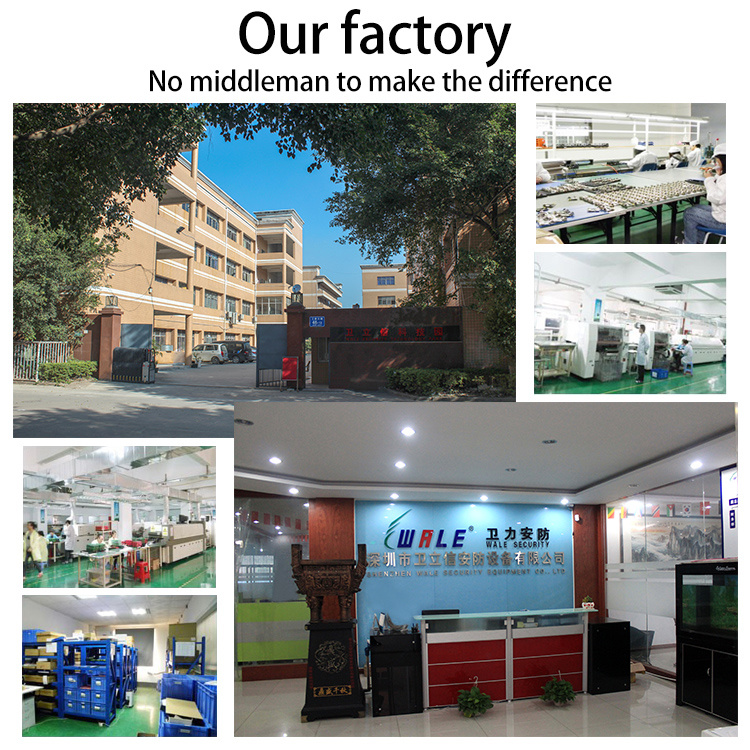

The factory and office are located in Shenzhen, which is near to ports for sea delliver. The factory can support OEM/ODM service for long term cooperation. Our products are welcomed by our forg

Every year, we will going to attend Security Exhibition all over the world, such as USA, Russia, Essen, India, Dubai, etc.

We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
