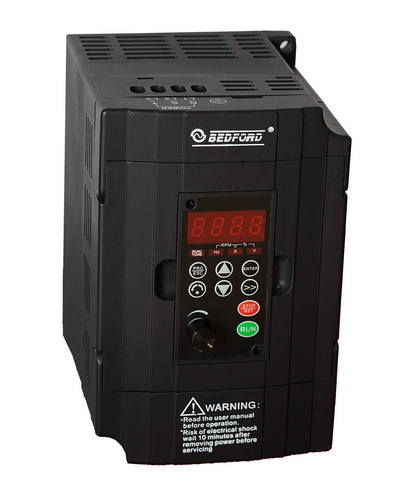

Sensorless Vector Frequency Inverter

Name: Sensorless Vector Frequency Inverter
Brand: all-electronics-online.com
SKU: 709072055
Availability: InStock
Rating: 4.5 (101 reviews)

Price:	US $ 72/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	5/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	B504
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Principle Of Work:	Vector Control Transducer
Main Circuit Type:	Voltage
Output Type:	Triple
Application:	Single or Triple Phase

Product Description

Variable Frequency Drive: Single or 3 phase, PID Control Function, Up to 25 fault protections, Automatic Voltage Regulation (AVR) Function, multi-step speed, multiple torque setting source, output freq. 0.1~600Hz

The combination of multi- modes and switching between different modes can be realized.

B504 Economic sensorless vector control inverter:

Power Range:

Sinle phase 220V 0.5HP~3HP (0.4KW~2.2KW)

Three phase 380V 1HP~3HP (0.75KW~2.2KW)

B 504 series	20005	200 1	200 2	200 3	4 00 1	4 00 2	4 0 03
Volt a ge	1 φ 200V-240V				3 φ 380 V- 440 V
Capacity(KW)	0.4	0.75	1.5	2.2	0.75	1.5	2.2
Rated output vol.(V)	3 φ 220V-240V				3 φ 380V-440V
Rated output curre n t A	3	4. 5	7.0	10	2.5	3.7	5
Control mode	Sensorless Vector Control (SVC), V/F Control
Output frequency range	Maximum 6 00Hz
Frequency resolution	Analog input volume:0.1Hz
Overloading capacity	Rated output current : 150%-1 minute 1 80 %- 10 seconds
Transmitter signal	0~10mA, 4~20mA ,0~20mA
No.of V/F Patterns	Vector curve, Random V/F curve
Location	Indoor(protected from corrosive gases and dust)
Ambient temperature	-10~4 0°C( If beyond the allowable degree,one degree will Derogate 5% output current)
Storage temperature	-40~6 0°C
Environmental temperature	95%(without dew gather)
Vibration	2M/ S 2 (0.2G)
Protection rate	IP 20

Guangzhou Bedford Electric Equipment Co., Ltd. is a high-tech enterprise integrating the R&D, production, sale and service together, specializing in Bedford series frequency inverters, AC Drives, VFD, VSD, intelligent constant pressure water pump controllers, complete water supply equipment, special inverter for injection machine and all kinds of motor savers which are widely used on general industry motor, fans, industry washing machine, packing, printing, textile machine, screw air-compressor and other applications. With a production capacity of 2000PCS/month, achieving ISO9001, ISO14001 since 2009 and the latest standards of GB/T12668.2.2002 and EMC GB 12668.3-2004 Certificate issued by the Nation Quality Supervision and Inspection Center. In addition, we have a group of professional software and hardware developers. We can develop special electric products to meet clients' requirements.

We welcome the customers and friends from both home and abroad to establish long-standing, mutual benefit business relationship with us.
