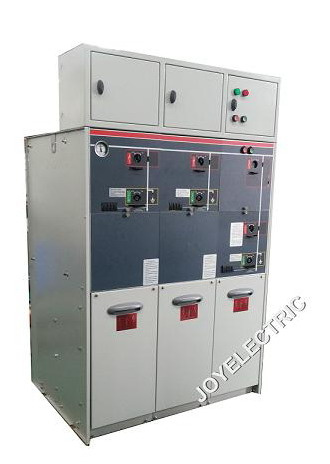

Sf6 Ring Main Unit 12kv/15kv/17.5kv/24kv

Name: Sf6 Ring Main Unit 12kv/15kv/17.5kv/24kv
Brand: all-electronics-online.com
SKU: 835632505
Availability: InStock
Rating: 4.6 (47 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Type:	Power
Brand:	Joyelectric

Product Description

WHR-12~24 RING MAIN UNIT

Applicable standards

IEC 60265: Switching and operations
IEC 60420: Switch-fuse co-operation
IEC 62270-200: Alternating-current metal-enclosed switchgear and controlgear for rated voltages above 1kV and up to and including 52kV
IEC 62271-102: High-voltage alternating current disconnectors and earthing switches
IEC 62271-100: High-voltage alternating current Circuit breakers
GB3804: Alternating-current load switchgear for rated voltages above 3.6kV and up to and including 40.5kV
GB1984: High-voltage alternating current Circuit breakers
GB1985: High-voltage alternating current disconnectors and earthing switches
GB16927: Switch-fuse co-operation
GB3906:Alternating-current metal-enclosed switchgear and controlgear for rated voltages above 3.6kV and up to and including 40.5kV

WHR RMU technical data

	C	F	V
	Cable switch	Switch fuse	Vacuum circuit breaker
Rated voltage	12/15/17.5/24	12/15/17.5/24	12/15/17.5/24
Rated current	630	200	200/630
Short circuit breaking current		Limited by fuse	21/21/16/16
Making capacity	52.5/52.5/40/40	Limited by fuse
Short circuit current 1sec.	**
Short circuit current 3sec.	21/21/16/16		21/21/16/16

*Requires 400 series bolted bushings
**1 sec. rating on request

WHR RMU modules

C-cable switch
C-cable switch
SL-busbar sectionaliser
De-with earthing switch
F-switch fuse disconnector
Sv-with vacuum circuit breaker
Be-busbar earthing
V-vacuum circuit breaker
D-direct cable connection
M-metering

Shaanxi Joyelectric International Co., Ltd. is a specialized company which is dealing with international business mainly covering electric and energy system, supplying products, design & service as well as production/test equipment in the field of power transmission and distribution.

With more than 20 years experiences in this fields, our main products include 12kV-24kV-36kV/40.5kV vacuum circuit breaker, switchgear & SF6 RMU as well as relative main components and accessories. With business development and meet requirement from customers, we also agent and distribute relative production/test equipment.

We had established close long-term cooperation with 10 more overseas customers from Europe, South American, Middle East and Asia due to our professional quality, excellent service and competitive prices.

We are not only your supplier, but also your purchasing consult as well as solution provider.
