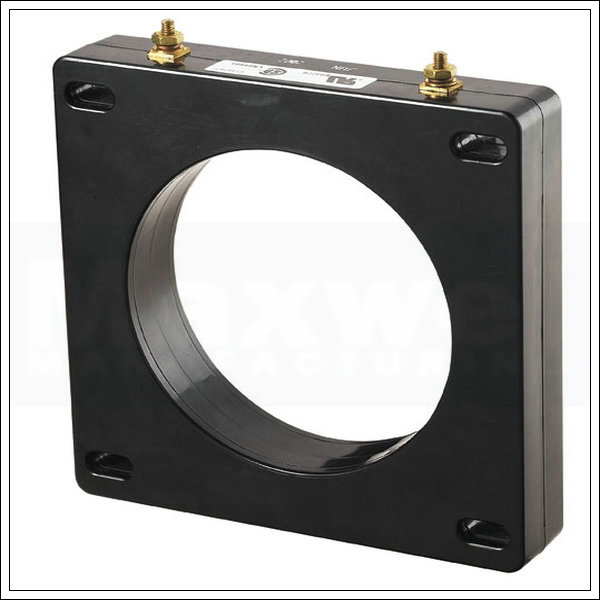

Sft Type Toroidal Current Transformer

Name: Sft Type Toroidal Current Transformer
Brand: all-electronics-online.com
SKU: 824405965
Availability: InStock
Rating: 4.5 (145 reviews)

Price:	US $ 25.8-28.9/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SFT
Colour:	Black
Primary Current:	30A-3000A
Class:	0.5/1.0
Frequency:	50/60Hz
Maximum Voltage:	0.72/3kv
Type:	Transformer

Product Description

SFT CURRNET TRANSFORMER

SFT Series

Primary current: 30A-3000A
Secondary current: 5A,1A
Standard approval: BS 7626,IEC44-1,IEC185
Maximum voltage: 0.72/3kv
Frequency: 50-60Hz
Rated load: 1.25VA-5VA
Class: 0.5,1.0,3.0
Short-time thermal current: 1th=60×1h
Rated security coefficient: Fs<5
Technical data:

Model	Primary/Secondary	Busbar Hole Dimension	Rated Burden(va)	Class	Rated Voltage	Rated Frequency
2SFT	30/5A-300/5A	30	2.5-5VA	1.0	0.72	50/60Hz
5SFT	100/5A-800/5A	40	5-10VA	1.0	0.72	50/60Hz
19SFT	800/5A-3000/5A	110	15VA	1.0	0.72	50/60Hz

Dimension of case(mm):

Model	A	B	C	D	E	F	G
D363	185	84	27	75	87	61	41
D364	185	84	37	37	87	61	41

Product Detail

About Warranty:

At least A year!

Delivery Time:

Whin 15 Days After you place an Order!

FAQ
1: When to get the price?
A: We usually quote within 24 hours after getting your inquiry.
if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.

2: Is sample available and free?
A: Sample is available, but sample should be paid in advance. The cost of sample will be refund after further order.

3. How to pay?
A: T/T will be more appreciated. Parpal or Wester Union
30% deposit before producing, 70% balance before loading by T/T.

4. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.

5. What about the Package?
A: Standard export package and we can make special designed for you if need.
