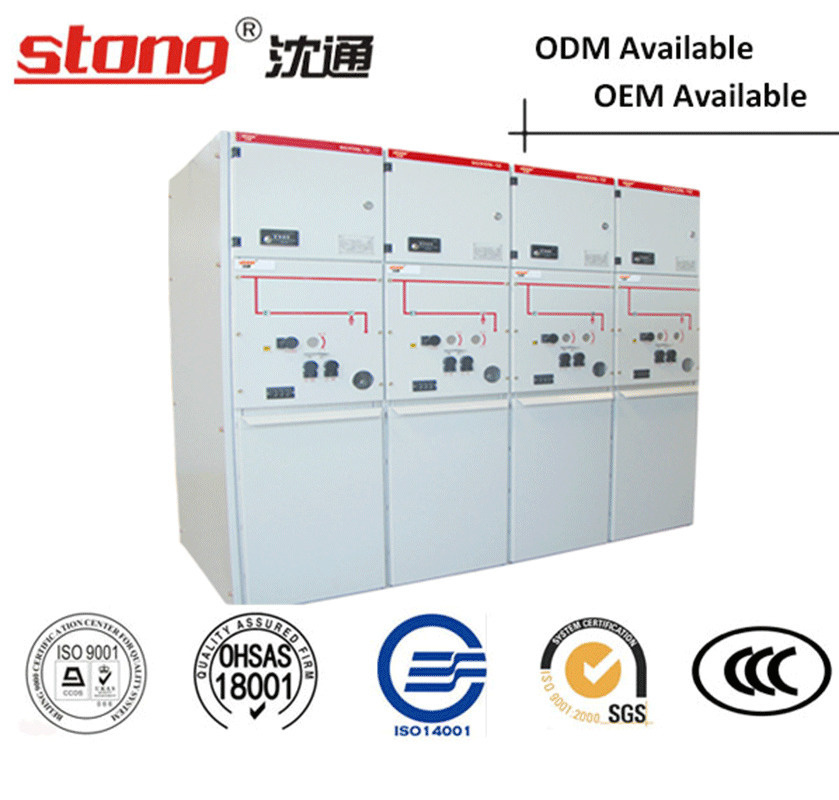

Sgxgn Series Intelligence High Voltage Solid Insulated Ring Net Cabinet
| Price: |
US $ 3000-5000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,Western Union,Paypal |
| Prod Model: |
SGXGN-12 |
| Rated Voltage: |
12kv |
| Rated Frequency: |
50Hz |
| Customized: |
Available |
| Attribute: |
Electric Cabinet |
| Function: |
Power Transmission |
| Main Accessory: |
Vacuum Circuit Breaker Vcb |
| Position: |
Outdoor |
| Effect: |
Transformer |
| Shell Properties: |
IP3X |
| Type: |
Prefabricated |
| Structure: |
Box |
| Brand: |
Shentong |
Product Description
Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM,ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

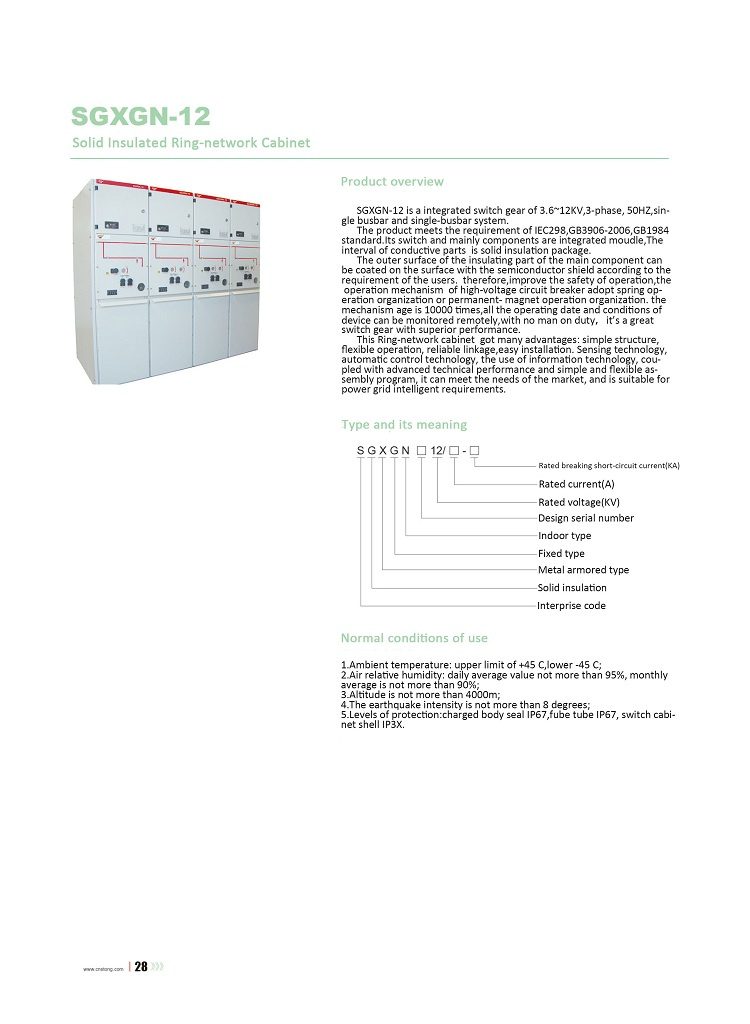

Product overview
SGXGN-12 is a integrated switch gear of 3.6~12KV,
3-phase, 50HZ,single busbar and single-busbar system.
The product meets the requirement of IEC298,
GB3906-2006,GB1984 standard.Its switch and mainly
components are integrated moudle,The interval of
conductive parts is solid insulation package.
The outer surface of the insulating part of the main
component can be coated on the surface with the
semiconductor shield according to the requirement of
the users. therefore,improve the safety of operation,the
operation mechanism of high-voltage circuit breaker
adopt spring operation organization or permanent-
magnet operation organization. the mechanism age is
10000 times,all the operating date and conditions of
device can be monitored remotely,with no man on
duty,it's a great switch gear with superior
performance.
This Ring-network cabinet got many advantages:
simple structure ,flexible operation, reliable linkage,easy
installation.
Sensing technology, automatic control technology, the
use of information technology, coupled with advanced
technical performance and simple and flexible assembly
program, it can meet the needs of the market, and is
suitable for power grid intelligent requirements.
Normal conditions of use
1, Ambient temperature: upper limit of +45 C,
lower -45 C;
2,Air relative humidity: daily average value not more
than 95%, monthly average is not more than 90%;
3, Altitude is not more than 4000m;
4,The earthquake intensity is not more than 8 degrees;
5,Levels of protection:charged body seal IP67,
fube tube IP67, switch cabinet shell IP3X.
PLS FOLLOW MY LINKEDIN | Joimmy Chow / Guanchu Tao |
Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture
Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.
We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.
Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
