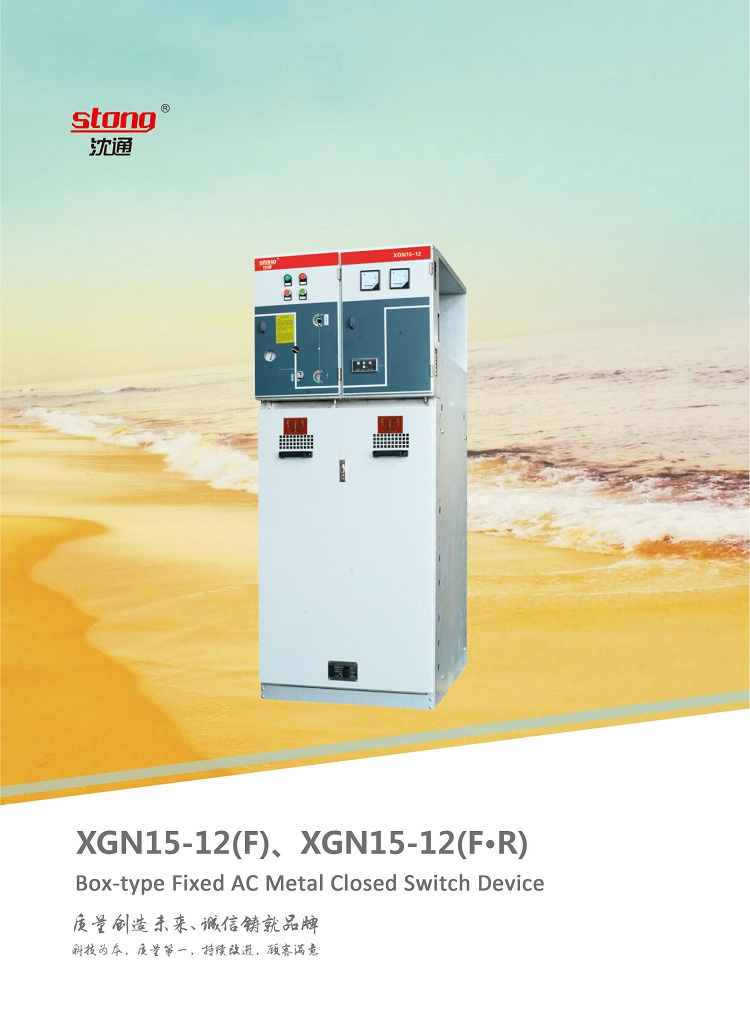

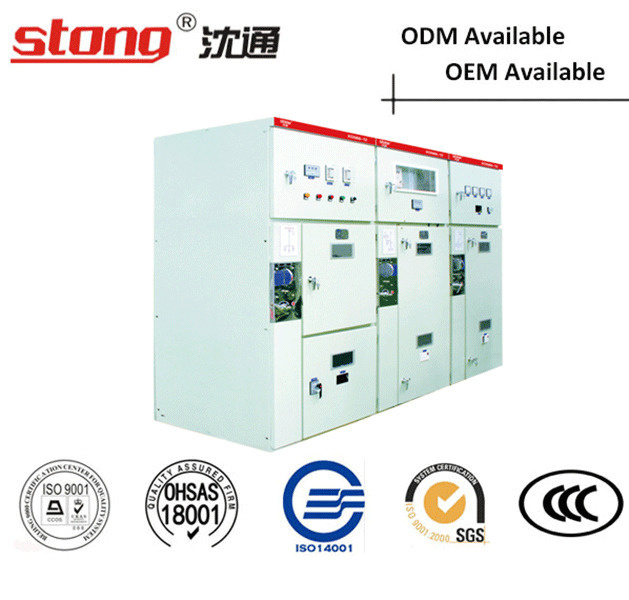

Xgn Series Insulation Fixed Enclosed High Voltage Switch Cabinet
| Price: |
US $ 8000-20000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,Western Union,Paypal |
| Prod Model: |
XGN-12KV |
| Rated Voltage: |
12kv |
| Rated Frequency: |
50Hz |
| Customized: |
Available |
| Attribute: |
Electric Cabinet |
| Function: |
Power Transmission |
| Main Accessory: |
Vacuum Circuit Breaker Vcb |
| Position: |
Outdoor |
| Effect: |
Transformer |
| Shell Attribute: |
IP2X |
| Type: |
Prefabricated |
| Structure: |
Box |
| Brand: |
Shentong |

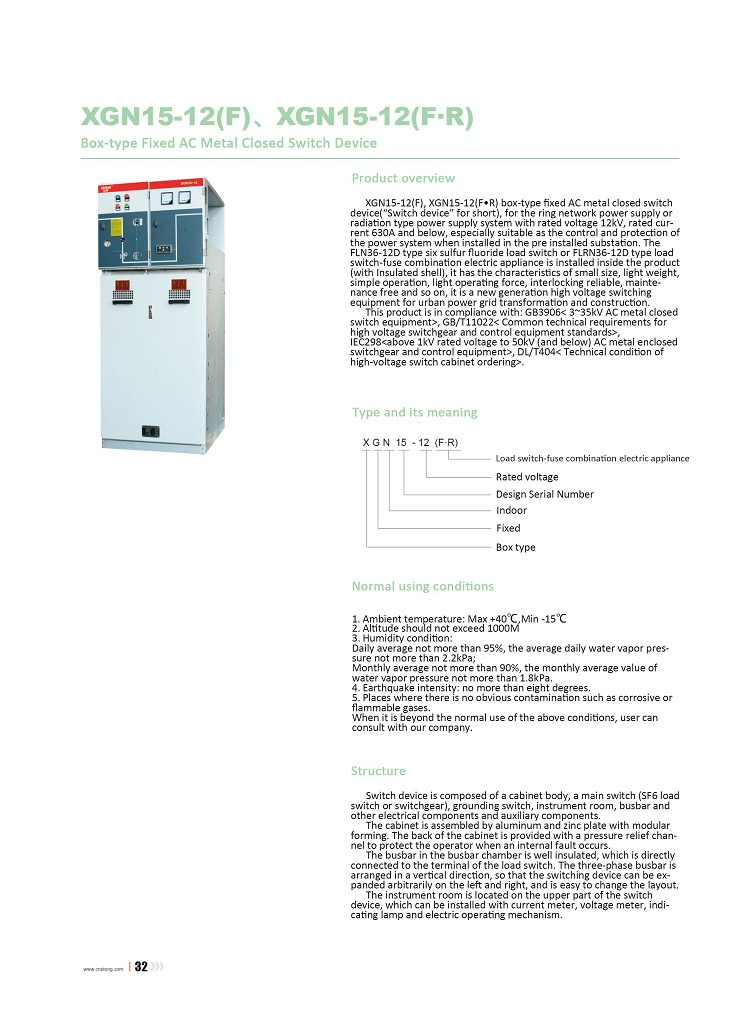

Product Description
Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM,ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

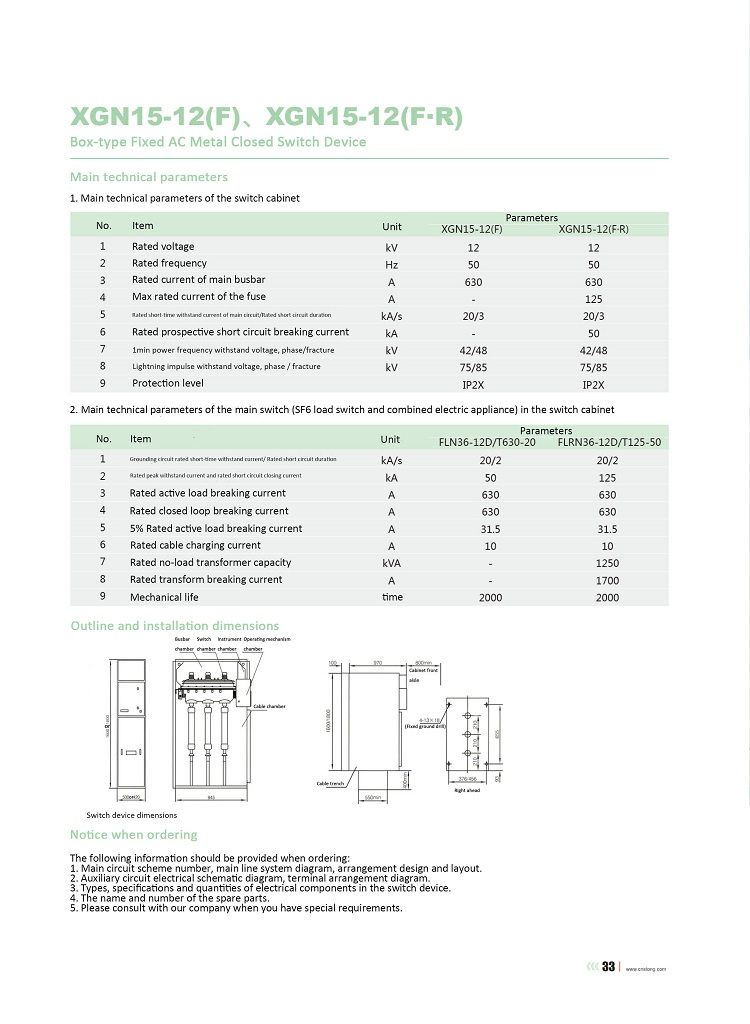

Main Technical Parameter - Main technical parameters and components of switch cabinet
| No. | Item | Unit | Technical parameters |
| 1 | Rated voltage | KV | 3.6,7.2,12 |
| 2 | Rated power frequency withstand voltage | KV | Ground,same:42; fracture:45 |
| 3 | Rated lightning impulse voltage | KV | Ground,same:75; fracture:85 |
| 4 | Rated frequency | HZ | 50 |
| 5 | Rated current | A | 630,1250 |
| 6 | Rated short-circuit breaking current(peak) | KA | 20,25,31.5 |
| 7 | Rated short-circuit current(peak) | KA | 50,63,80 |
| 8 | Rated dynamic current(peak) | KA | 50,63,80 |
| 9 | Lightning heat stable current(effective value) | KA | 20,25,31.5 |
| 10 | Protection level | | IP2X |
| 11 | Outline dimensions (width, depth, height) | mm | 900x1000x2300 |
| 12 | Weight | kg | ≈600 |
- Main technical parameters of ZN63-12 vacuum circuit breaker
| No. | Item | Unit | Technical parameters |
| 1 | Rated voltage | kV | 12 |
| 2 | Rated current | A | 630,1250 |
| 3 | Rated short-circuit breaking current | kA | 20,25,31.5 |
| 4 | Rated short-circuit current | kA | 50,63,80 |
| 5 | Rated short-time withstand current (4s effective value) | kA | 20,25,31.5 |
| 6 | Rated peak withstand current(peak) | kA | 50,63,80 |
| 7 | Mechanical life | time | 10000 |
| 8 | Rated short-time breaking current break time | time | 50 |
| 9 | Rated operating sequence | | Off -0.3s-on-off -180s-on-off |
| 10 | Distance between open contacts | mm | 11±1 |
| 11 | Contact travel | mm | 4±0.5 |
| 12 | Relative center distance | mm | 210 |
| 13 | Split speed | m/s | 1.2±0.2 |
| 14 | Closing speed | m/s | 0.6±0.2 |
| 15 | Split time | ms | ≤60 |
| 16 | Closing time | ms | ≤75 |
| 17 | Three-phase switching cycle | ms | ≤2 |
| 18 | Closing bouncing | ms | ≤2 |
| 19 | Loop resistance | μΩ | ≤45 |
| 20 | Allowable cumulative abrasion thickness of the contacts | mm | 3 |
- Technical parameters of other electrical components refer to their own Instructions.The program that the rated current of the switch cabinet higher than 1600A shall be negotiated with our company.
*Please offer us your wiring diagram for our quotation*

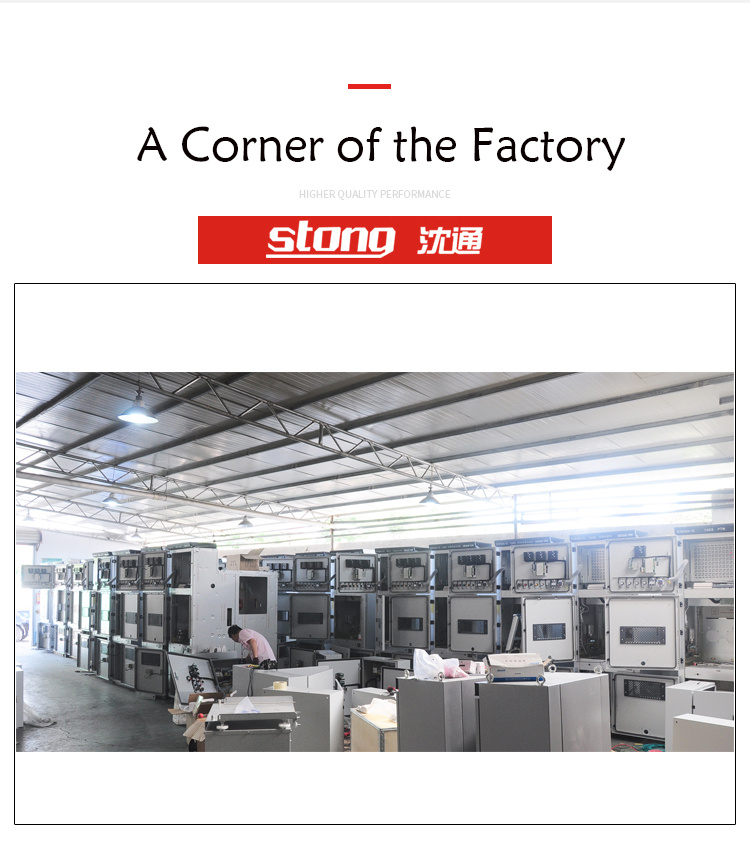

Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture
Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.
We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.
Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
