Sh150ah-12V AGM VRLA Battery

Name: Sh150ah-12V AGM VRLA Battery
Brand: all-electronics-online.com
SKU: 828653355
Availability: InStock
Rating: 4.8 (67 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SH150AH-12V-17
Product Name:	Sh150ah-12V AGM VRLA Battery
Size:	See in The Web
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

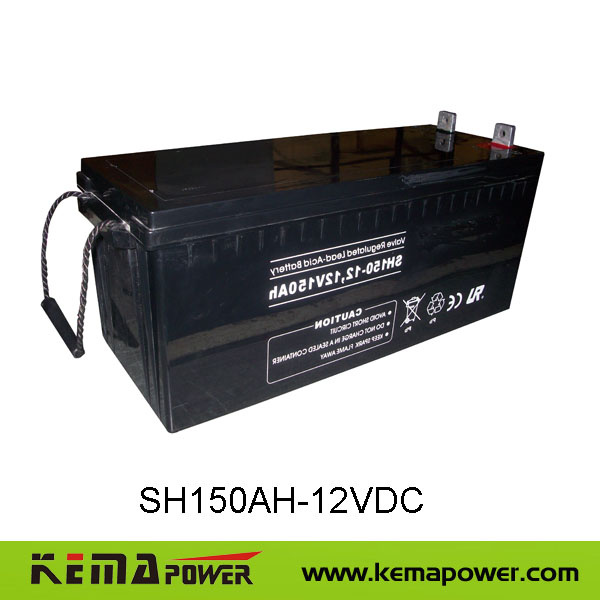

SH150AH-12VDC AGM VRLA BATTERY

The battery is constructed by plates,separators,safety valves and container.
Since the electrolyte is held by a glassmat separator and plates,the battery can use in any direction and position without leakage.

Performance Characteristics
Nominal Voltage .......................... 12V
Number of cell ...............…........…... 6
Design Life ..................…........…. 10 years
Nominal Capacity 77°F(25°C)
10 hour rate(15.0A,10.5V) ..........…....….......150Ah
5 hour rate (25.5A,10.5V) .........…...……........127.5Ah
1 hour rate(97.5A,9.6V) ....................…........97.5Ah
Internal Resistance
Fully Charged battery 77°F(25°C) .......…......……..3mΩ
Self-Discharge
3% of capacity declined per month at 20°C(average)
Operation Temperature Range
Discharge .............................. -20~60°C
Charge .....................….......... -10~60°C
Storage .............................. -20~60°C
Max.Discharge Current 77°F(25°C) ...…...…....... 1500A(5s)
Short Circuit Current .....................….. 4500A
Charge Methods:Constant Voltage Charge 77°F(25°C)
Cycle use .............................…14.5-15.0V
Maximum charging current ................…..…..45A
Temperature compensation .................…. -30mV/°C
Standby use .....................….....…13.4-13.8V
Temperature compensation .........….....…..…-20mV/°C

Dimensions and Weight
Length ( mm / inch )............….………485 / 19.09
Width ( mm / inch ) ............…...…...….171 / 6.73
Height ( mm / inch ) .........….........…...241 / 9.49
Total Height ( mm / inch ).........…......…...241 / 9.49
Approx.Weight( Kg / lbs )...…......…........ 43 / 94.80

Battery Constructionn

COMPONENT	Positive plate	Negative plate	Container	Cover	Safety valve	Terminal	Separator	Electrolyte
RAW MATERIAL	Lead dioxide	Lead	ABS	ABS	Rubber	Copper	Fiberglass	Sulfuric acid

Charging Methods

Application	Charging method	Charging Voltage at 25°C	Temperature compensation coefficient of charging voltage	Max.charging current	Charging time 25°C(h)		Temp (°C)
					100% discharge	50% discharge
For standby power source	Constant voltage & Constant Current Charging (with current restriction)	13.4-13.8V	-20 mV/°C	45A	24	20	0~40 (32~104°F)
For cycle service		14.5-15.0V	-30 mV/°C	45A	16	10

*Temperature compensation of charging voltage is not needed.when using the batteries within 15°C to 35°C range.

Discharge Constant Current (Amperes at 77°F25°C)

F.V/Time	5min	10min	15min	30min	45min	1h	2h	3h	5h	8h	10h	20h
1.60V	700	560	400	231	164	120	70.0	50.5	34.4	22.5	18.8	10.2
1.65V	680	540	380	225	161	118	69.5	50.4	34.1	22.5	18.8	10.2
1.70V	640	500	360	220	160	116	69.1	50.0	34.0	22.4	18.5	10.0
1.75V	560	420	340	208	159	114	68.0	49.5	34.0	22.1	18.5	10.0
1.80V	500	360	320	180	156	110	66.0	48.0	33.6	22.1	18.1	9.81

Discharge Constant Power (Watts/cell at 77°F25°C)

F.V/Time	5min	10min	15min	30min	45min	1h	2h	3h	5h	8h	10h	20h
1.60V	1275	1021	737	445	312	251	135	97.6	66.4	43.9	36.5	20.0
1.65V	1221	980	696	431	308	245	133	97.1	66.0	43.6	36.4	20.0
1.70V	1164	921	663	411	304	245	132	96.5	65.6	43.6	36.4	19.9
1.75V	1020	779	627	385	300	241	131	95.5	65.6	43.1	36.0	19.5
1.80V	911	700	591	335	296	239	127	92.5	65.1	43.1	35.5	19.1
