| Prod Model: |
SH201L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| MCB: |
Mini,Miniature Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Poles Number: |
3 |
| Certification: |
CCC |
| Operation: |
Electric Type |
| Installation: |
Insert |
| Speed: |
High-Speed Circuit Breaker |
Product Description
Packaging & Delivery
Packaging Detail:1. Product Net weight: 95g/pole 2. Packing quantity& Weight: 12 pcs /box, 20 box/carton, 240 pole/carton 3. N.W: 24 KG/carton 4. G.W: 25 KG/carton
Delivery Detail:50000PCS 15days
Specifications
1.Rated Voltage:AC 230V/400V
2.Rated Current:6A-63A
3.Pole:1p 2p 3p 4p +N
5.CE, oem for 5 years
4.Breaking capacity:6KA

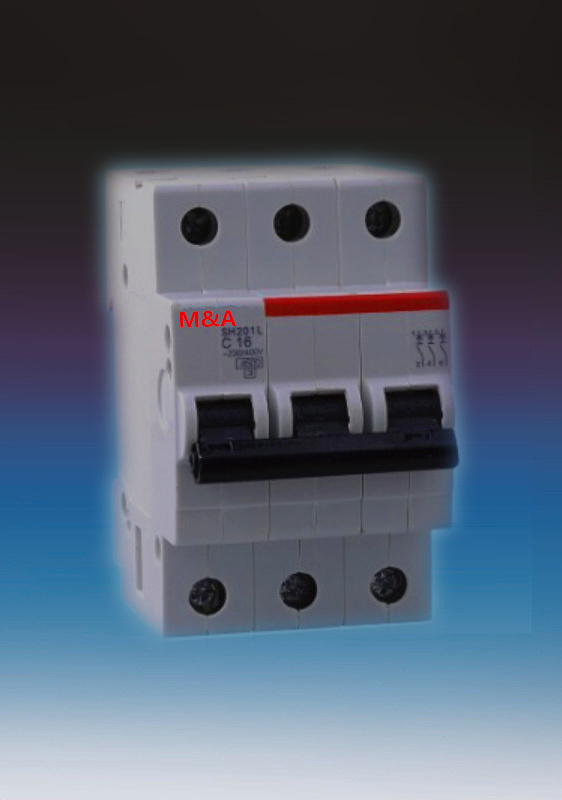

sh201l electrical air circuit breaker 6ka 230/400V
1.Application
SH201L is mainly suitable for overload and short circuit protection.It is especially used for illumination and distribution in industry and commerce.It has pleasing outlook&high breaking capacity etc. Its frame and parts adopts plastics of light weight,reliable performance,high inflammable resistance and shock resistance for long service life.It is mainly used for overload and short circuit protection within the circuit of AC 50/60Hz,rated voltage of single pole 240V,two,three or four pole up to 415V.It can also be used for an unfrequent switch-over of the circuit and illumination under normal conditions.
Standard
|
|
IEC60898
|
Number of poles
|
|
1P,2P,3P,4P
|
Rated current(In)
|
|
6,10,16,20,25,32,40,50,63
|
Rated voltage(Un)
|
|
DC240/415V
|
Rated frequency
|
|
50/60Hz
|
Tripping curve
|
|
B,C,D
|
Release action characteristics
|
Time delay
|
1.13In>1h Non-trip
|
1.45In<1h trip
|
2.55In 1s~60S trip
|
Instantaneous(Curve C)
|
5In >0.1s Non-trip
|
10In<0.1s trip
|
Magnetic releases operate
|
|
B curve:between 3 and 5In
|
C curve :between 5 and 10In
|
D curve: between 10 and 15In
|
Ratedbreaking capacit(Lcn)
|
|
3000A
|
Endurance
|
|
>2500
|
Circumstance temperature
|
|
-5~+40
|
Electrical life
|
|
>6000times
|
Mechanical life
|
|
20000 times
|
Tropical ration
|
|
Treatmen 2(RH95%,at 55°C)
|
Protection degree
|
|
IP20
|
Standard
|
|
IEC60898
|
Number of poles
|
|
1P,2P,3P,4P
|
Rated current(In)
|
|
6,10,16,20,25,32,40,50,63
|
Rated voltage(Un)
|
|
DC240/415V
|
Rated frequency
|
|
50/60Hz
|
Tripping curve
|
|
B,C,D
|
Release action characteristics
|
Time delay
|
1.13In>1h Non-trip
|
1.45In<1h trip
|
2.55In 1s~60S trip
|
Instantaneous(Curve C)
|
5In >0.1s Non-trip
|
10In<0.1s trip
|
Magnetic releases operate
|
|
B curve:between 3 and 5In
|
C curve :between 5 and 10In
|
D curve: between 10 and 15In
|
Ratedbreaking capacit(Lcn)
|
|
3000A
|
Endurance
|
|
>2500
|
Circumstance temperature
|
|
-5~+40
|
Electrical life
|
|
>6000times
|
Mechanical life
|
|
20000 times
|
Tropical ration
|
|
Treatmen 2(RH95%,at 55°C)
|
Protection degree
|
|
IP20
|
Standard
|
|
IEC60898
|
Number of poles
|
|
1P,2P,3P,4P
|
Rated current(In)
|
|
6,10,16,20,25,32,40,50,63
|
Rated voltage(Un)
|
|
DC240/415V
|
Rated frequency
|
|
50/60Hz
|
Tripping curve
|
|
B,C,D
|
Release action characteristics
|
Time delay
|
1.13In>1h Non-trip
|
1.45In<1h trip
|
2.55In 1s~60S trip
|
Instantaneous(Curve C)
|
5In >0.1s Non-trip
|
10In<0.1s trip
|
Magnetic releases operate
|
|
B curve:between 3 and 5In
|
C curve :between 5 and 10In
|
D curve: between 10 and 15In
|
Ratedbreaking capacit(Lcn)
|
|
3000A
|
Endurance
|
|
>2500
|
Circumstance temperature
|
|
-5~+40
|
Electrical life
|
|
>6000times
|
Mechanical life
|
|
20000 times
|
Tropical ration
|
|
Treatmen 2(RH95%,at 55°C)
|
Protection degree
|
|
IP20
|
