Dongguan Blueuniverse Laser Co., Ltd. >> Sharp High Power 638nm Red Laser Diode 700MW (GH0637AA2G)

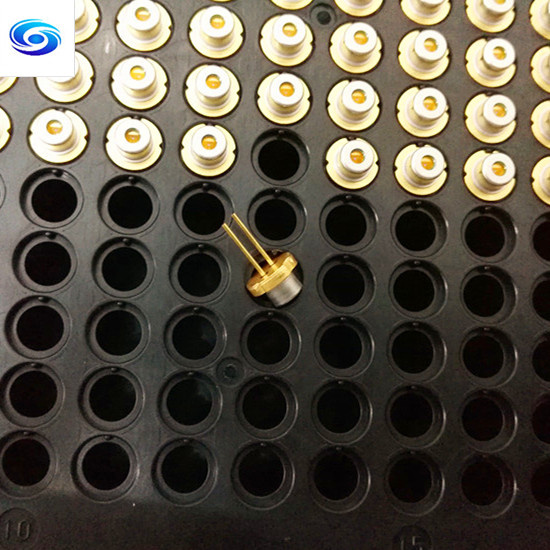

Sharp High Power 638nm Red Laser Diode 700MW (GH0637AA2G)

Sharp High Power 638nm Red Laser Diode 700MW (GH0637AA2G)
Price: US $ 11.5-16/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: GH0637AA2G
Lasing Wavelength: 635nm~643nm
Optical Output Power: 700MW
Can Type: To18-5.6mm
Light Color: Red
Power Characteristic: High Power
Life Time: 10000 Hours
Operating Current: 910mA
Operating Voltage: 2.5V
Ld Reverse Voltage: 2V
Operating Temperature: -10~ +40 Degree

Product Description


Features:
1. Shorter wavelength: 638nm Typ.
2. High optical output power: 700mW
3. Small package: 5.6mm diameter



Absolute Maximum Ratings    (Tc=25ºC)
ItemSymbolRatingsUnit
Optical Output Power(-10~+30ºC)Po(1)700mW
Optical Output Power(+30~+40ºC)Po(2)500mW
Maximum currentImax1A
LD Reverse VoltageVr(LD)2V
Operating TemperatureTpor-10~+40ºC
Storage TemperatureTstg-40~+85ºC
Soldering TemperatureTsld350ºC


Electrical/Optical Characteristics ( Tc=25ºC
ParameterSymbolMinTypMaxUnitTest  Condition
Lasing Wavelengthλp635638643nmPo=700mW
Threshold CurrentIth-120-mA-
Operating CurrentIop-9101000mAPo=700mW
Operating VoltageVop-2.463.0VPo=700mW
Beam Divergence Parallel to the junction-61626°Po=700mW
Beam Divergence Perpendicular to the junction-253545°Po=700mW

Description:

1. Multi transverse mode.

2. TM mode oscillation.

3. Cheap price Sharp GH0637AA2G 638nm 700mw red laser diode for show laser.

4.  Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes.Normally 100pcs in one tray, 10 trays in one bag ,then 10 bags in one carton box.


Welcome Your Inquiry:
Name: Ms. Song
Tel:+ 86 13713250894



FAQ:
How to contact us ?
You can send messages to us on trademessenger directly, or send us a email.

Shipping Policy:
1. Item will be sent out within 1-3 working days after the payment is cleared.
2. it will be shipped by DHL/FedEx/UPS/TNT or other special way, please contact with us to choose the best one.
3. Most package will arrive within 3- 5 working days after it is sent out.

Warranty:
    All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here , please inform us within 3 days of receipt. We can arrange replacement for you if the situation is confirmed.



Dongguan Blueuniverse Laser Co., Ltd. Was started in 2006, and established in 2015, the company is located in Dongkeng Town, Dongguan, Guangdong Province. Which is a collection of research, produce, sales photoelectric enterprise. We specialize in semiconductor laser diodes, laser light source, LED light source as the center and we are still continuously researching and developing the laser peripheral areas.

Main products are included below but not limited:

Semiconductor laser diode, laser module, bicycle rear light, head light, bicycle wheel light, laser fog light, laser power bank.

Since 2006, our company has owned a number of excellent engineers, management department and well-trained staff. According to the modern enterprise management, we have perfect quality testing, monitoring, tracking and feedback system and put scientific management into effect. Further more, we also pursue ISO9001 international quality system, according to the international standard management. Our products also have all kinds of export certification and a number of patent.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in sterilization, physical therapy, stage, measurement, advertisement, outdoor ridding and other industries.

We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!

We devote ourselves to developing good quality products, and supplying better products and services. Our strategy for successes is to follow the advanced and the latest technologies all the time and to make contribution to the optical enterprise.
