Sharp High Power Red Ld 185MW 638nm Laser Diode (GH0631IA2G)

Sharp High Power Red Ld 185MW 638nm Laser Diode (GH0631IA2G)
Price: US $ 13.5-16.5/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: JLD6318ZA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lasing Wavelength: 632nm~644nm
Optical Output Power: 180MW
Can Type/ Diameter: To18-5.6mm
Light Color: Red
Power Characteristic: High Power
Ld Reverse Voltage: 2V
Operating Current: 215mA
Operating Voltage: 2.7V
Life Time: 10000 Hours
Operating Temperature: -5~+60 Degree

Product Description

Features:
1. High Output Poer: 185mw (CW)
2. Visible Light: 638nm (Typ.)

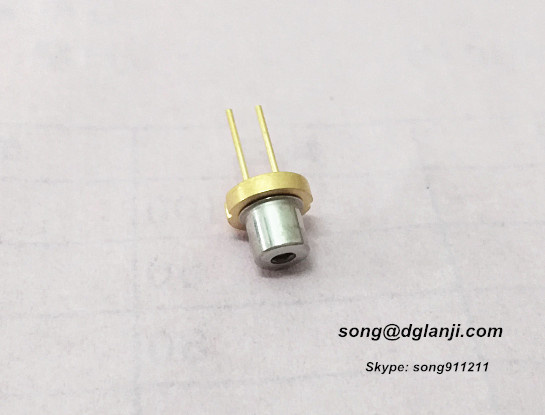

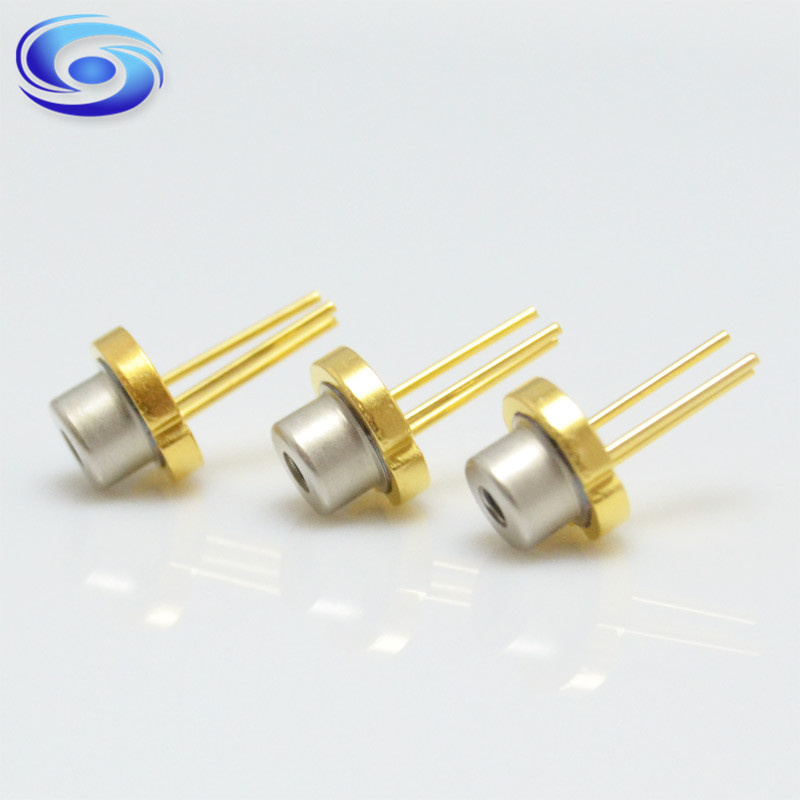

3. TO18-5.6mm package type

Sharp High Power Red Ld 185MW 638nm Laser Diode (GH0631IA2G)

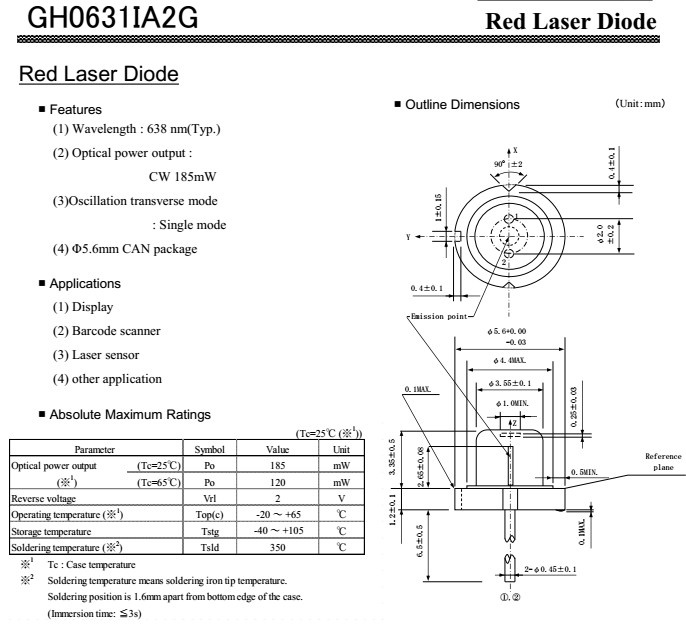

Absolute Maximum Ratings    (Tc=25ºC)
ParameterSymbolRatingsUnit
Optical Output PowerPo( CW)185 (Tc=25ºC))
120(Tc=65ºC)
mW
Reverse Voltage(LD)VRL2V
Operating TemperatureTc-20 to +65ºC
Storage TemperatureTstg-40 to +105ºC


Electrical and Optical Characteristics (Tc=25ºC)
SymbolParameterTest Conditions  MinTyp.Max Unit
IthThreshold CurrentCW-70-mA
IopOperating CurrentCW, Po= 180mW-215-mA
VopOperating VoltageCW, Po= 180mW-2.55-V
 ηSlope EfficiencyCW, Po= 180mW0.81.11.3mW/mA
λdPeak WavelengthCW, Po= 180mW633638643nm
Θ//Beam Divergence Angle
(Parallel)
CW, Po= 180mW4812°
θ⊥Beam Divergence Angle
(Perpendicular)
CW, Po= 180mW81318°





Description:
1. Oscillation transverse mode: Single mode

2. Cheap price Sharp original GH0631IA2G 638nm 185mw red laser diode for Display systems.

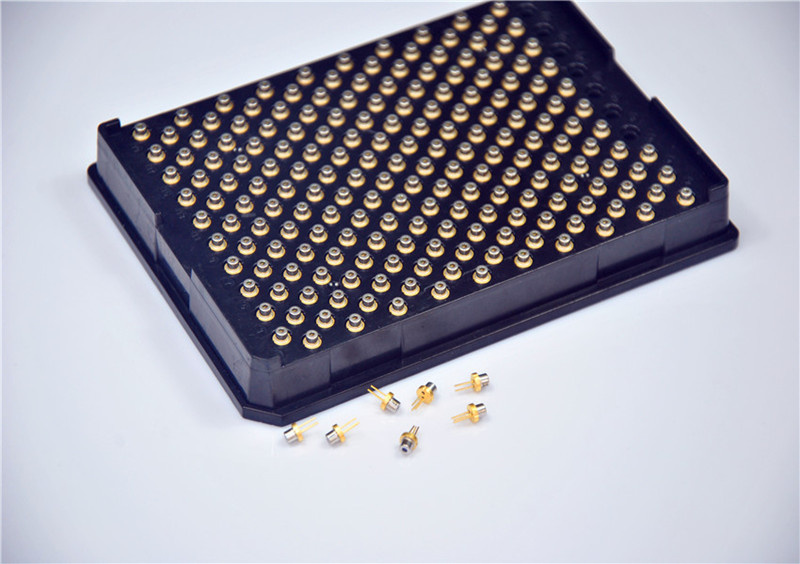

3.  Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes.Normally 200pcs in one tray, 10 trays in one bag ,then 10 bags in one carton box.
