Shen Zhen Mysun High Temperature Silicone Electrical Wire

Name: Shen Zhen Mysun High Temperature Silicone Electrical Wire
Brand: all-electronics-online.com
SKU: 839538595
Availability: InStock
Rating: 4.4 (134 reviews)

Price:	US $ 0.2-2/Meter
Min Order:	6100/Meter
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3135
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	Silicone Rubber
Certification:	CSA,Iatf16949
Application:	Home Application,LED Lamp, Oven,Machine
Conductor Material:	Tinned Copper
Sheath Material:	Silicone Rubber
Range Of Application:	Home Application,LED Lamp, Oven,Machine
Brand:	Mysun

Product Description

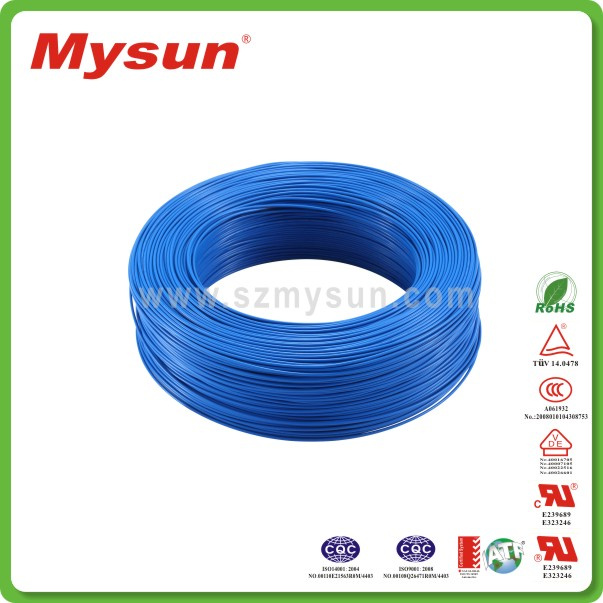

Shen Zhen Mysun high temperature Silicone Electrical Wire

Specifications:

Nominal voltage: 600V

Temperature range: 200C

Standard: UL 758

Conductor: Tinned copper wire

Insulation: Silicone Rubber

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
26	7/0.16	0.48	0.78	2.04	143	305/1000
24	7/0.20	0.61		2.17	89.3
22	7/0.254	0.77		2.33	56.4
20	7/0.31	0.94		2.50	35.2
18	7/0.39	1.19		2.75	22.2
16	7/0.49	1.49		3.05	14
24	11/0.16	0.61		2.17	89.3
22	17/0.16	0.76		2.32	56.4
20	26/0.16	0.94		2.50	35.2
18	41/0.16	1.18		2.74	22.2
16	26/0.254	1.49		3.05	14
14	41/0.254	1.87		3.43	8.78
12	19/0.47	2.36		3.92	5.53
0.30mm²	12/0.18	0.71		2.27	59.78
0.50mm²	20/0.18	0.92		2.48	40.1
0.75mm²	30/0.18	1.13		2.69	26.7
1.00mm²	40/0.18	1.31		2.87	20
1.25mm²	50/0.18	1.46		3.02	14.35
2.00mm²	41/0.254	1.87		3.43	8.78
2.50mm²	50/0.254	2.08		3.64	7.16

Service:

Shipment:

1. by express

2. by sea

Payment terms:

LC, TT, Western Union, Money Gram and PayPal

Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
