| Prod Model: |
short boot connector |
| Catalogue: |
Patch Cables |
| Name: |
Fiber Optic Patch Cables |
| General Names: |
Fiber Optic Jumpers |
| Cable Length: |
1m.3m.5m or Customized |
| Operating Temperature: |
-40c~+80c |
| Fiber Mode: |
Single Mode or Multi-Mode |
| Cable Diameter: |
0.9mm, 2.0mm, 3.0mm |
| Operation Wavelenghth(Nm): |
1310/1550nm |
| Export Markets: |
Global |
| Type: |
Single Mode or Multi-Mode |
| Connection Structure: |
Sc/LC/FC/St/Mu/MTRJ/MPO/E2000 |
| Material Shape: |
Round Wire |
| Allowed Lateral Pressure: |
100（N/100mm） |
| Allowed Tensile Strength: |
100N<1000N |
| Core: |
Simplex Duplex Quard |
| Certification: |
VDE, CE, RoHS, ISO9001, CCC, UL |
| Sheath Material: |
PVC, LSZH |
| Brand: |
Takfly |
| Application: |
Art, Sensor, Communication, Medicine, FTTH, FTTB, LAN, CATV |
Product Description

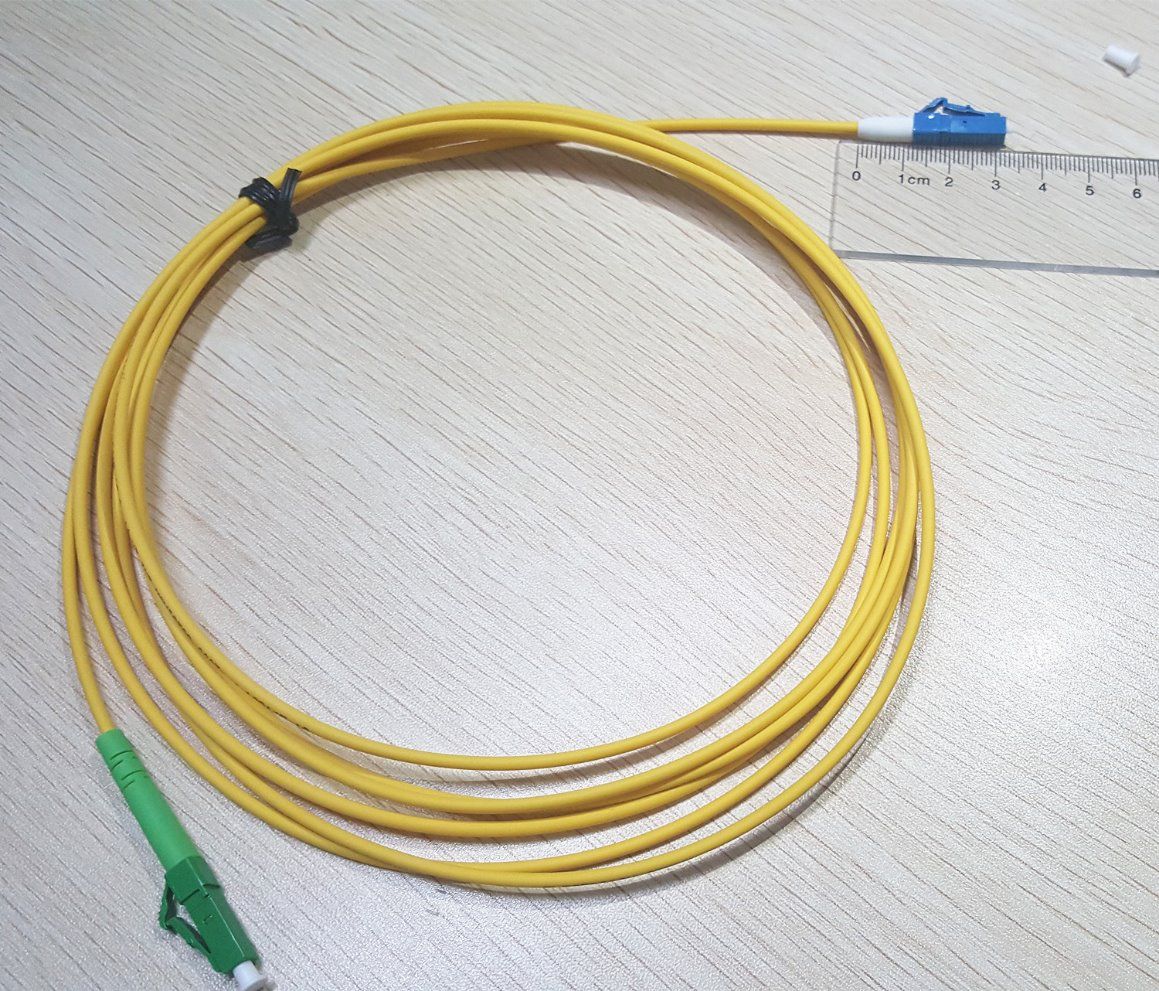

short boot connector/LC-SC fiber optic patch cord (short boot)
1. Details:
connector avaliable: LC/SC/FC/ST/MTRJ/E2K/MPO
2. Features:
Low insertion loss, high return loss
Small, light, high dense connection
Standard exact plastic material
High credibility and stability
Good in repeatability and exchangeability
3. Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
4,Parameter
| Parameter | Unit | FC, SC, LC/ Armoured fiber patch cord | ST, MU | MT-RJ, MPO | E2000 |
| SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insertion loss(typical) | dB | ≤ 0.3 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.2 | ≤ 0.3 | ≤ 0.2 | ≤ 0.2 | ≤ 0.3 | ≤ 0.3 |
| Return loss | dB | ≥ 45 | ≥ 50 | ≥ 60 | ≥ 30 | ≥ 45 | ≥ 50 | ≥ 30 | ≥ 45 | ≥ 50 | ≥ 35 | ≥ 55 | ≥ 75 |
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 |
| Exchangeability | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 |
| Vibration | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 |
| Operating temperature |
| -40~75 | -40~75 | -40~75 | -40~75 |
| Storage temperature |
| -45~85 | -45~85 | -45~85 | -45~85 |
| Cable diameter | mm | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 |
5. Why contact Takfly Communications Co., Ltd?
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator,
optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications,
broadband, broadcast, CATV and network industry.
1. Fast delivery
2. Competitive price
3. Professional product and technical support
4. Prompt answer for any question or inquiry
5. Reliable quality, OEM service available
6. Longtime warranty
7. Value-added service:
Except good products, we can provide good services on logistic and other help you may need.
For any question, pls feel free to contact us. Your inquiry is expected! Warmly welcom you to inquiry us for this product
