Sic Heating Element Is a Type of Non-Metal High Temperature Electric Heating Device

Name: Sic Heating Element Is a Type of Non-Metal High Temperature Electric Heating Device
Brand: all-electronics-online.com
SKU: 691068132
Availability: InStock
Rating: 4.6 (37 reviews)

Price:	US $ 10-200/Piece
Trade Terms:	FOB,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Rod, U, W, Spiral
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Source:	Electric
Model Number:	U, W, H, Sprial
Dimension(LWH):	1800X20X20mm
Weight:	3kgs
Voltage:	220V
Power(W):	5kw
Color:	Gray
Temperature:	1400-1500 C
Structure Material:	Non-Metallic Material
Heat Transfer Surface:	Tubular Heat Exchanger
Principle:	Resistance Heating

Product Description

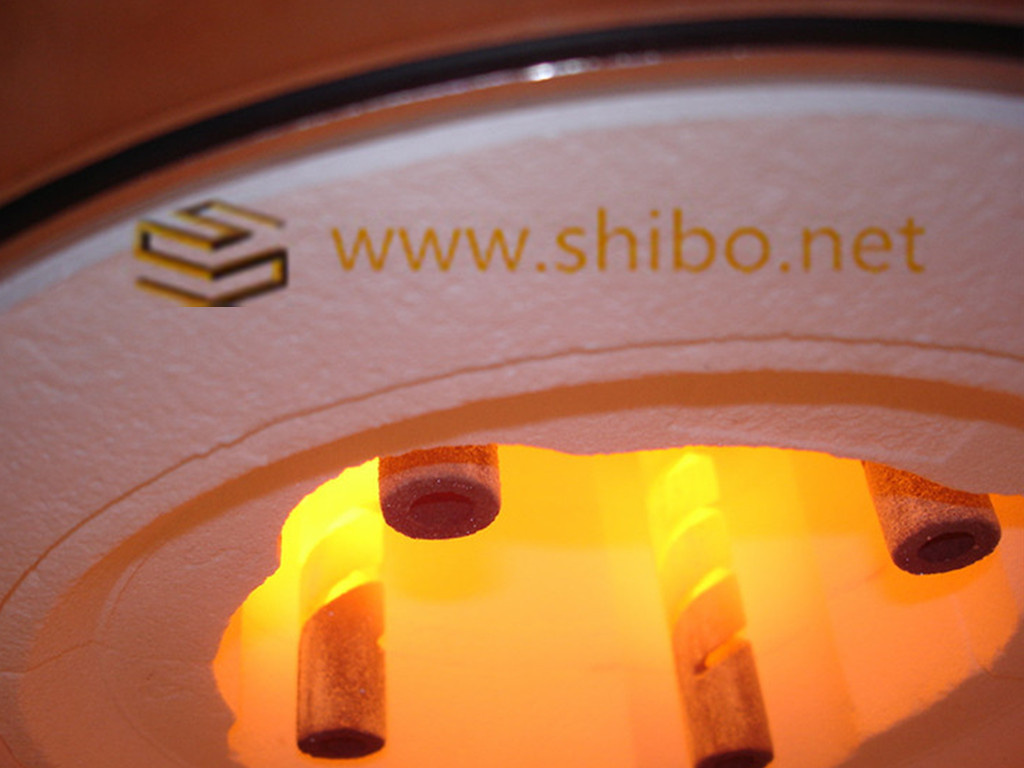

High quality&best price Silicon carbide heater supplier SiC heating elements

Specification
Working temperature: 600-1400degree
Order sample: Od=20mm Hz=300, CZ=300MM, OL=600MM. Resistance: 2.2ohms
Please specify as: Dia20*Le300*Lu150*2.2ohms

When you inquiry, Please inform us
A. Outer diameter (OD)
B. Length of Hot zone (Hz)
C. Length of Overall (OL)
D. Resistance (at 1050C +/-50C)

Features
1withstands as high as 1400° C
2high strength and excellent shock resistance
3heat source is free of noise and air pollution
4anti-oxidization, anti- corrosion
5easy to installation and maintenance

Outer Diameter (OD, mm)	Hot zone (HZ, mm)	Cold zone (CZ, mm)	Overall length (OL, mm)	Range of resistance (ohms)
8	100-300	60-200	240-700	2.1-8.6
12	100-400	100-350	300-1100	0.8-5.8
14	100-500	150-350	400-1200	0.7-5.6
16	200-600	200-350	600-1300	0.7-4.4
18	200-800	200-400	600-1600	0.7-5.8
20	200-800	250-600	700-2000	0.6-6.0
25	200-1200	250-700	700-2600	0.4-5.0
30	300-2000	250-800	800-3600	0.4-4.0
35	400-2000	250-800	900-3600	0.5-3.6
40	500-2700	250-800	1000-4300	0.5-3.4
45	500-3000	250-750	1000-4500	0.3-3.0
50	600-2500	300-750	1200-4000	0.3-2.5
54	600-2500	300-750	1200-4000	0.3-3.0

Zhengzhou Shibo Nonferrous Metals Products Co., Ltd., is the High & New technology Enterprise specially engaged in developing, manufacturing and selling nonferrous metals products, electric heating elements, furnace and fire-proof material products.

Zhengzhou Shibo locates at Zhongyuan Industry Area, Zhengzhou City, Henan Province, where is a hub of communications, commercial and trading center in China. Holding the enterprise spirit of "Unity, Hard-working, Innovation, Efficiency", Zhengzhou Shibo enjoys high reputation for its high quality products and knight service in domestic and abroad, at the same time, the Company grows very fast with a total area of about 25, 000 square meters and 103 employees. The products are exported to USA, Europe, Middle East, South East Asia, Russia, Japan and Korea and so on owing to the keen consciousness of quality and commercial reputation.

Products of Zhengzhou Shibo are widely used in the applications of glass, Chinaware, lighting, magnetism materials, fluorescent materials, false crystal, Machinery, Electro Vacuum materials, industrial apparatus etc. There are four main categories of Products: Electric heating elements, Nonferrous metals products, Furnace and fire-proof material.

Zhengzhou Shibo values product quality and keeps pursuing excellent quality. Holding the concept of "Creating the value for customers and seeking for development with mutual benefit", Zhengzhou Shibo will sincerely serve the customers at home and abroad with quality products for a better future.

We sincerely welcome all the friends at home and abroad to visit our company.
