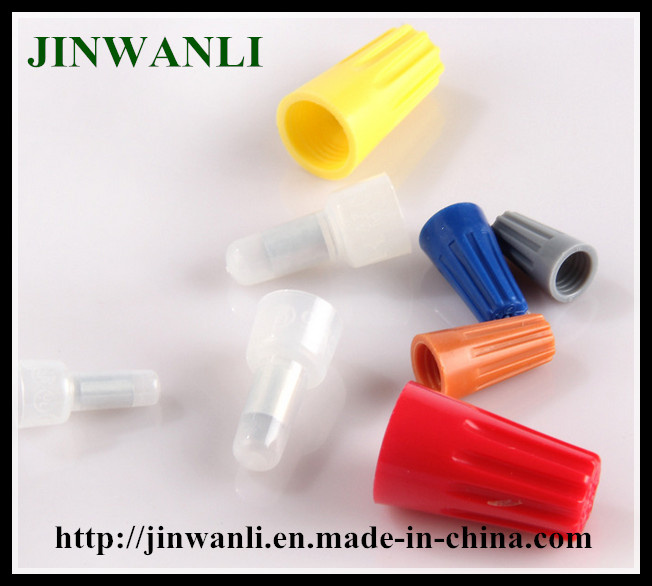

Signal Wing Screw Wire Connector Joints

Name: Signal Wing Screw Wire Connector Joints
Brand: all-electronics-online.com
SKU: 764405535
Availability: InStock
Rating: 4.9 (43 reviews)

Price:	US $ 0.008-0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Single Hole Terminals
Material:	Copper
Application:	Transmission of Electrical Signals

Product Description

Specifications

1.Wire Joint have PVC and Nylon material, insert is steel.

2.Wire Joint is dedicated to wire fastening hinged connection device.

3.Conventional pressing line hat all use PA66 (polyamide) injection production is made, Internal attached copper tube (or spring) in order to achieve the purpose of cable clamp.

4.Wire Joint series we have five types. They are P1, P2, P3, P4 and P5. And every type has their own colors.

5.How to use: Peel wire coat, insert the wire in, then tighten.

6.Color: Grey, blue, orange, red, yellow.

ITEM.NO.	H(mm)	W(mm)	D(mm)	SUITABLE WIRES	COLOR
P1	15	8.5	6.5	MIN#20×1+#22×1 MAX#16×2	Grey
P2	18	10	7.5	MIN#20×3 MAX#16×3	Blue
P3	20	11.5	9.5	MIN#20×3 MAX#16×3+#18×1	Orange
P4	23.5	13.5	10.8	MIN#14×1+#18×1 MAX#14×4+#18×1	Yellow
P5	23.5	15.5	12.7	MIN#14×2 MAX#10×2+#12×2	Red

Detail Information of Cable Spiral Wire Joint

Material	steel spring
Plating	Tin
Insulation	PP
Color	Natural, natural, red , yellow, and other cutomized
Working Temp	-40 to +105°C
Cable Range	A.W.G.:22-16 (0.5-1.5mm²),16-14(1.5-2.5mm²), 14-12(2.5-4mm²), 12-10(4-6mm²), 8(6-10 mm²), 6(10-16 mm²), 4( 16-25mm²)
MOQ	Small orders accepted
Payment Term	A.L/C,T/T (Bank Transfer, Wire Transfer)
	B.Western Union
	C.Paypal (For samples fee & Courier cost)
	Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc
Delivery Time	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
Supply Ability	2 x 20 feet containers per week
Packaging Details	A.Common Packing:100pcs + polybag + label + inner box+ export carton
Packaging Details	B.Customized Packing:OEM Label,Inner Box,Blister,etc
HS Code	8536900000
Origin Country	Zhejiang, China
Test Report	REACH, ROHS.
