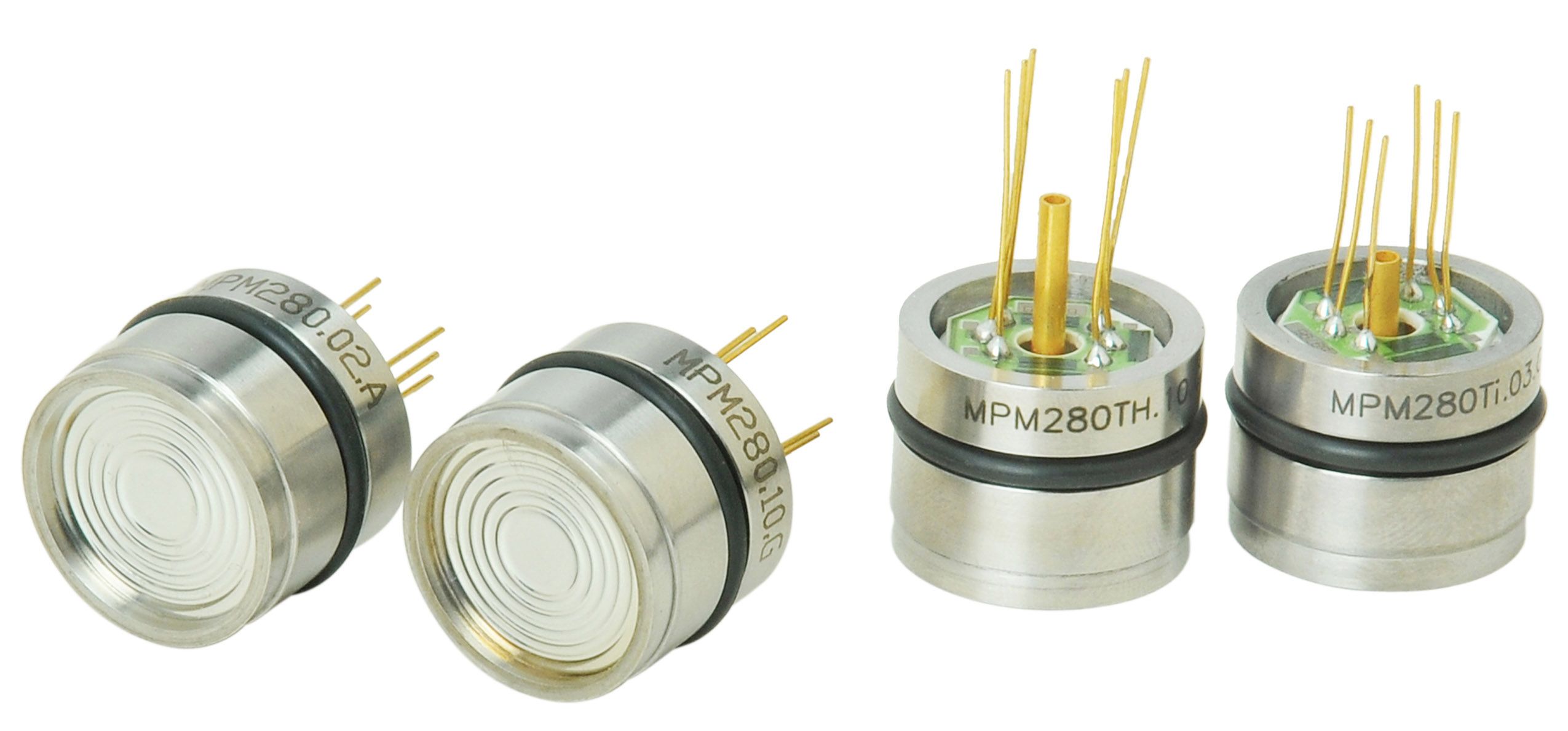

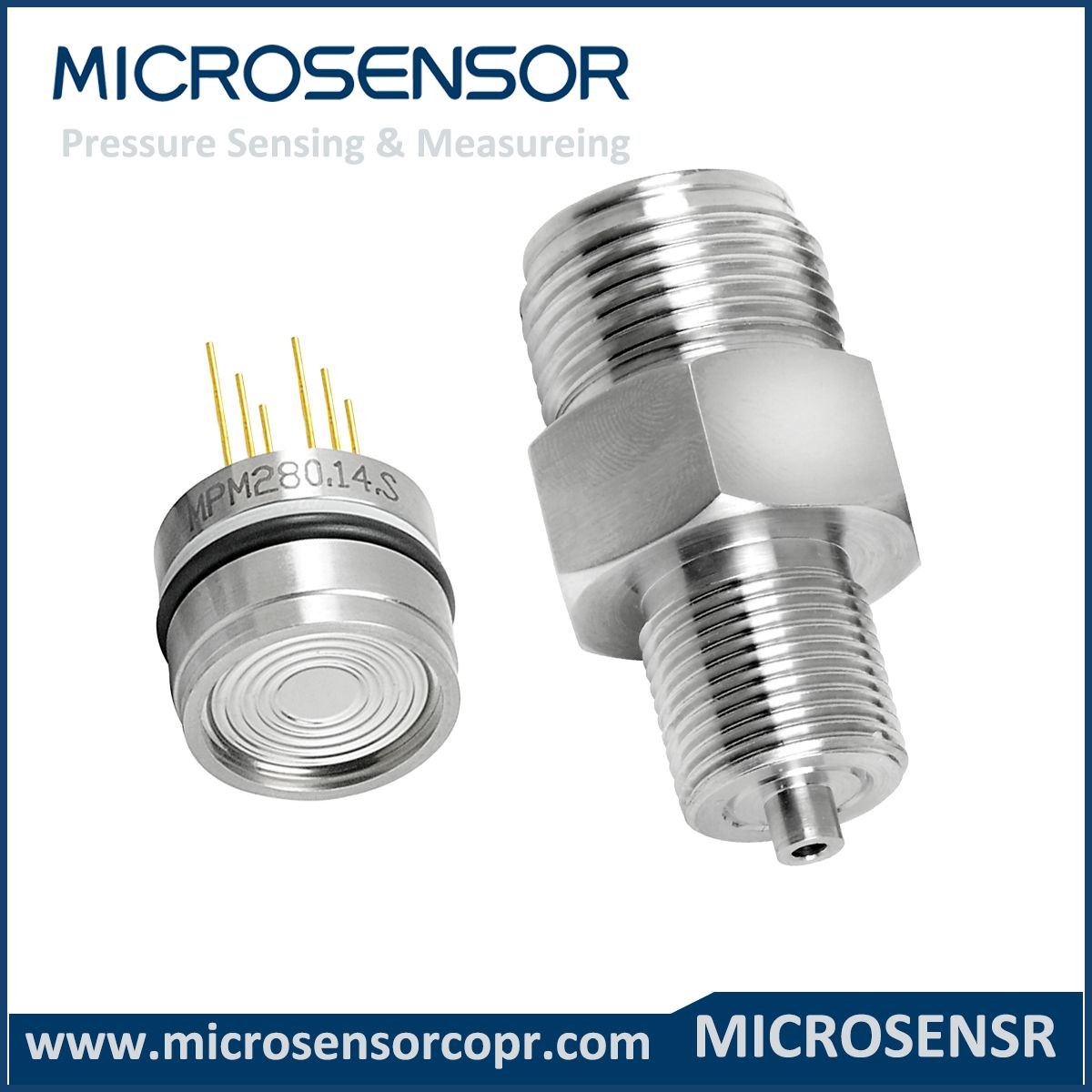

                                             Silicon Oil-Filled Pressure Sensor Mpm280

Features

Pressure range 0~20kPa...35MPa;
Gauge, absolute and sealed gauge;
Constant current power supply;
Isolated construction to measure various media
Φ 19mm OEM pressure element
Tantalum diaphragm or titanium construction for option;
Different male thread connection optional


Introduction
The outline, instalation dimension and sealing method of the general MPM280 is easily interchangable. It can be used for measuring pressure which is compatible with stainless steel and Viton;

MPM280 pressre sensor provides vacuum measurement, and the lowest pressure can be -100kPa.


Electric Connection
Power supply:  ≤2.0mADC
Electric connection:  Kovar pin or 100mm silicon rubber flexible wires
Common mode voltage output: 50% of input (typ.)
Input impedance: 3kΩ~8kΩ
Output impedance: 3.5kΩ~6kΩ
Response (10%~90%): <1ms
Insulation resistor: 100MΩ, 100VDC
Overpressure: 1.5 times FS


Construction Specification
Diaphragm: Stainless steel 316L    Titanium TA1 (MPM280 Ti)      Tantalum Ta (MPM280 TH)
Housing:     Stainless steel 316L     Titanium TC4 (MPM280 Ti)     Hastelloy C (MPM280 TH)
Pin:   Kovar
O-ring: Viton
New weight: ~ 23g     (General)
                    ~ 50g     (Flush diaphragm)
                    ~ 125g   (Assembled)
                    ~ 13.5g  (MPM280 Ti)



Environment Condition
Position effect: deviate 90°  from any orientation, zero change ≤0.05%FS
Shock:  no change at 10gRMS, (20~2000)Hz
Impact: 100g, 11ms
Media compatibility: the gas or liquid which is compatible with construction material and Viton


Working Condition
Media temperature: (25±1)°C
Environment temperature: (25±1)°C
Shock: 0.1g (1m/s/s) Max
Humidity:  (50%±10%) RH
Local air pressure:  (86 ~ 106) kPa
Power supply: (1.5±0.0015)mADC


  Item*Min.Typ.Max.Units
Linearity ± 0.15± 0.25%FS, BFSL
Repeatability ± 0.05± 0.075%FS
Hysteresis ± 0.05± 0.075%FS
Zero output ± 1 v2mVDC
FS output**70  mVDC
Zero thermal error ± 0.75± 1.0%FS, @25C
FS thermal error ± 0.75± 1.0%FS, @25C
Compensated temp. range0~50C
Working temp. range-40~125C
Storage temp. range-40~125C
Stability ± 0.2± 0.3%FS/year
*  testing at basic condition
**0AG, FS output ≥ 60mV
    0BG, FS output ≥ 45mV
    02A, 03A, 02GY, 03GY, FS output ≥ 50mV
  07A, 08A, 07GY, 08GY,   FS output ≥ 60mV
Reference Condition:
Media temperature: (25± 1)C
Environment temperature: (25± 1)C
Shock: 0.1g (1m/s/s)
Max Humidity: (50%± 10%)RH
Local air pressure: (86~106)kPa
Power supply: (1.5± 0.0015)mADC
