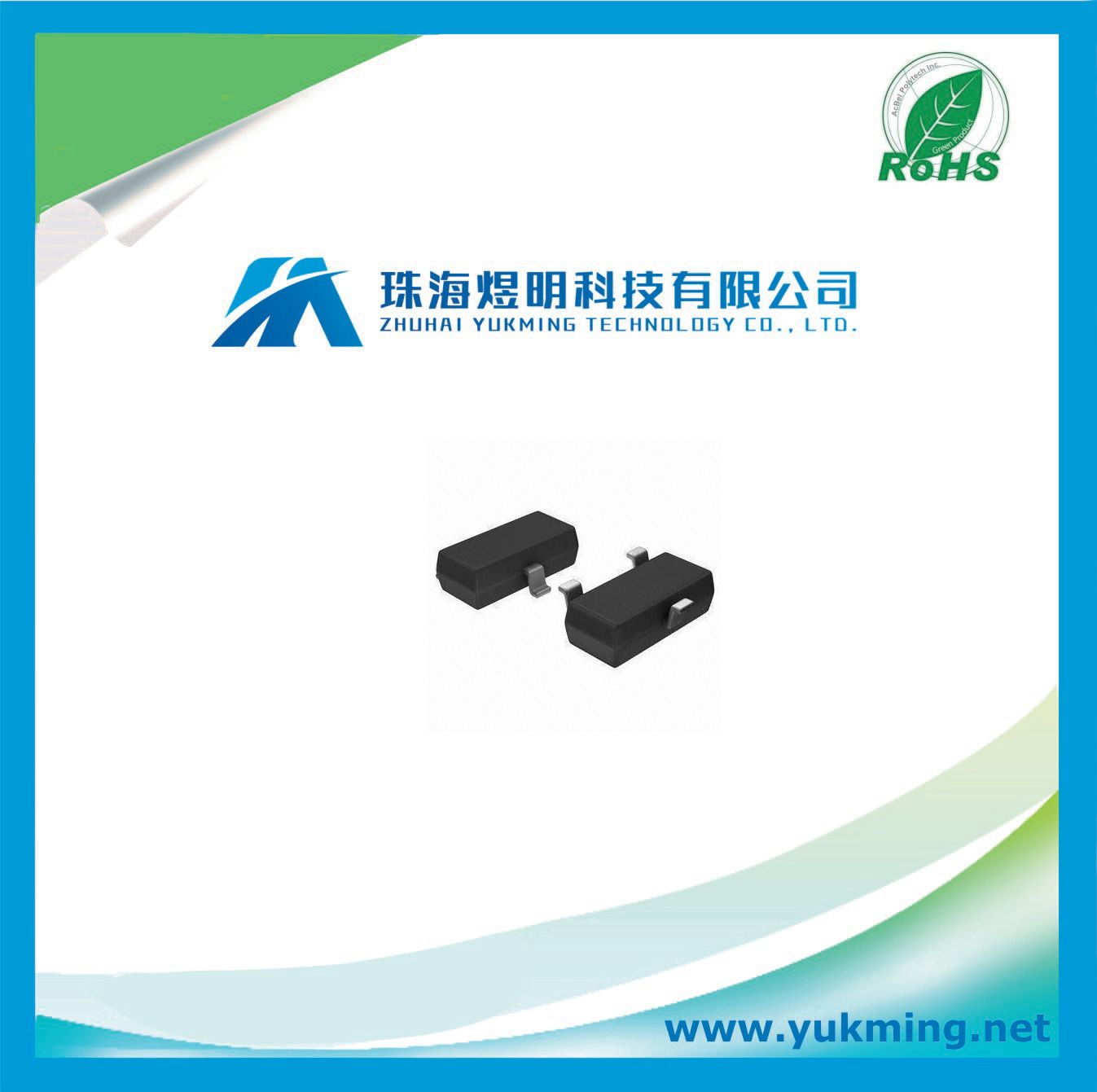

Silicon Planar Power Zener Diodes of Electronic Component

Name: Silicon Planar Power Zener Diodes of Electronic Component
Brand: all-electronics-online.com
SKU: 804558765
Availability: InStock
Rating: 4.9 (146 reviews)

Price:	US $ 0.026/Piece
Min Order:	3000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZX84-C2V4
Application:	Electronic Products
Encapsulation Structure:	SOD23

Product Description

Zener Diodes

Features
• Silicon Planar Power Zener Diodes
• The Zener voltages are graded according to the
international E 24 standard. Standard Zener voltage
tolerance is ±5%. Replace "C" with "B" for ±2%
tolerance. Other voltage tolerances and other
Zener voltages are available upon request.
• These diodes are also available in other case
styles and other configurations including: the
SOD-123 case with type designation BZT52 series,
the dual zener diode common anode configuration
in the SOT-23 case with type designation AZ23
series and the dual zener diode common cathode
configuration in the SOT-23 case with type
designation DZ23 series

Mechanical Data
Case:
SOT-23 Plastic Package
Weight:
Approx. 0.008g
Packaging Codes/Options:
E8/10K per 13" reel (8mm tape), 30K box
E9/3K per 7" reel (8mm tape), 30K box

Category	Discrete Semiconductor Products
Family	Diodes - Zener - Single
Manufacturer	NXP USA Inc.
Series	-
Packaging	Digi-Reel®
Part Status	Active
Voltage - Zener (Nom) (Vz)	2.4V
Tolerance	±5%
Power - Max	250mW
Impedance (Max) (Zzt)	100 Ohm
Current - Reverse Leakage @ Vr	50µA @ 1V
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Operating Temperature	-65°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23 (TO-236AB)

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
