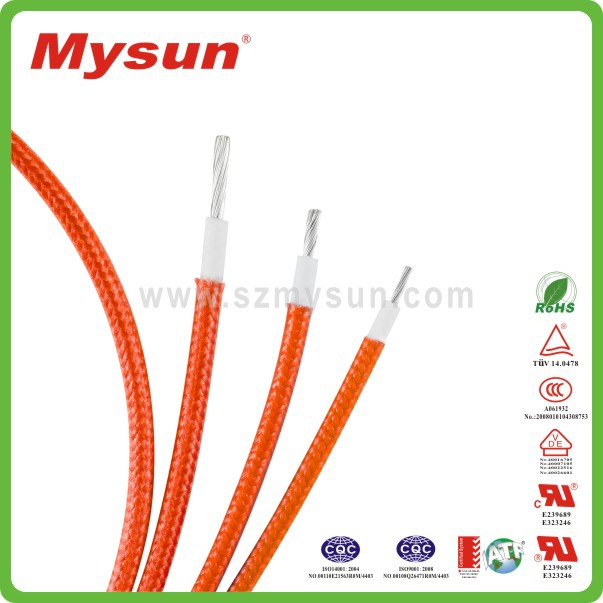

Silicone Cable UL3122 Fiberglass Braided Wire

Name: Silicone Cable UL3122 Fiberglass Braided Wire
Brand: all-electronics-online.com
SKU: 830185445
Availability: InStock
Rating: 4.5 (111 reviews)

Price:	US $ 0.064-0.709/Meter
Min Order:	6100/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL3122
Rated Voltage:	300V
Rated Temp:	200c
Color:	White, Black, Red, Brown, Yellow, Blue etc
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	RoHS
Application:	Internal Wire
Sheath Material:	Fiberglass
Range Of Application:	FT2
Brand:	Mysun

Product Description

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
26	7/0.16	0.48	0.60	1.68	143	305/1000
24	7/0.20	0.61		1.81	89.3
22	7/0.254	0.77		1.97	56.4
20	7/0.31	0.94		2.14	35.2
18	7/0.39	1.19		2.39	22.2
16	7/0.49	1.49		2.69	14
24	1/0.50	0.50	0.65	1.80	89.3	305/1000
22	1/0.65	0.65		1.95	56.4
20	1/0.81	0.81		2.11	35.2
18	1/1.02	1.02		2.32	22.2
16	1/1.20	1.20		2.50	14
24	11/0.16	0.61	0.60	1.81	89.3	305/1000
22	17/0.16	0.76		1.96	56.4
20	26/0.16	0.94		2.14	35.2
18	41/0.16	1.18		2.38	22.2
16	26/0.254	1.49		2.69	14
0.30mm²	12/0.18	0.71	0.60	1.91	59.78	305/1000
0.50mm²	20/0.18	0.92		2.12	40.1
0.75mm²	30/0.18	1.13		2.33	26.7
1.00mm²	40/0.18	1.31		2.51	20
1.25mm²	50/0.18	1.46		2.66	14.35

Service
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
