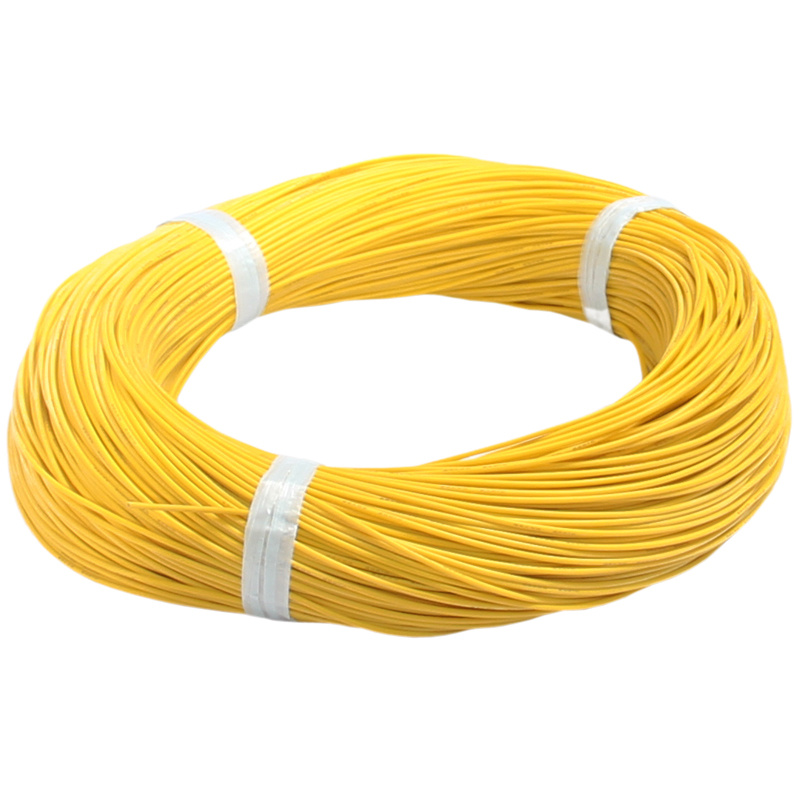

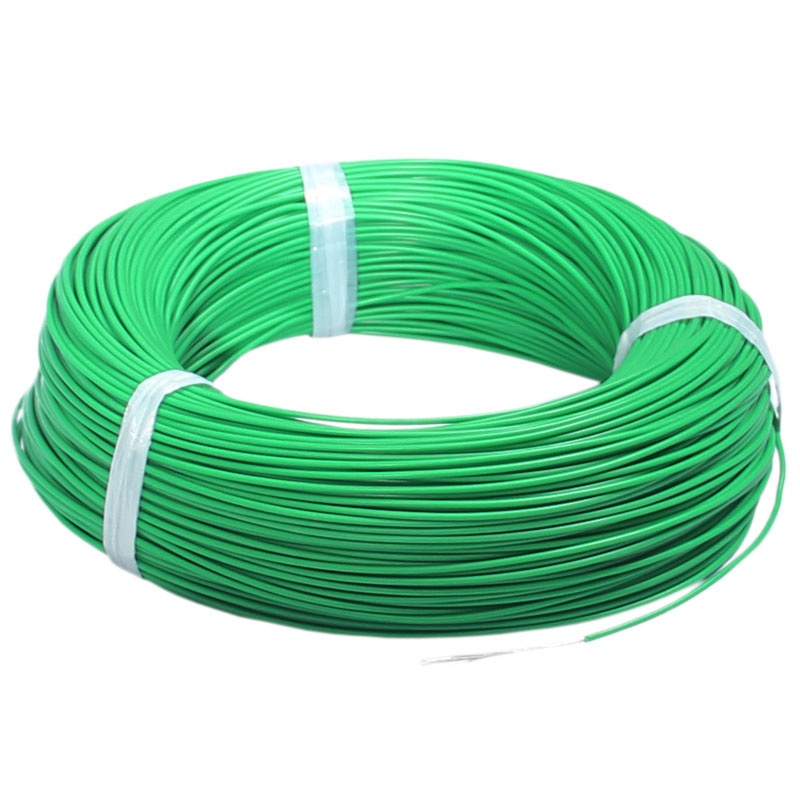

Silicone Rubber Cable Flexible Wire 24AWG with 006

Name: Silicone Rubber Cable Flexible Wire 24AWG with 006
Brand: all-electronics-online.com
SKU: 745310705
Availability: InStock
Rating: 4.7 (32 reviews)

Price:	US $ 0.198-2.39/Meter
Trade Terms:	FOB,EXW
Min Order:	3000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	006--24AWG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	RoHS
Sheath Material:	Silicone Rubber

Product Description

Silicone rubber flexible cable --006(24#)
Nominal voltage: 300V or 600V
Temperature range: -60º C-+200º C
O. D. Tolerance: ± 0.1mm
Testing voltage: 2000V
Conductor: Tinned, nickeled, silver plated, gold plated copper, bare copper
Insulator: Silicone rubber.
Color: White-blue-red-black-brown-yellow-green-yellow/green
Construction of the conductor: 80/0.06
The diameter: 0.58mm
Thickness of insulator: 0.50mm
Over diameter: 1.6mm
The packing: 500/coils
They are the same with the inner fixed wire for airplane model, ship model, vehicle model, home appliance, electrical machine, toy and so on

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
