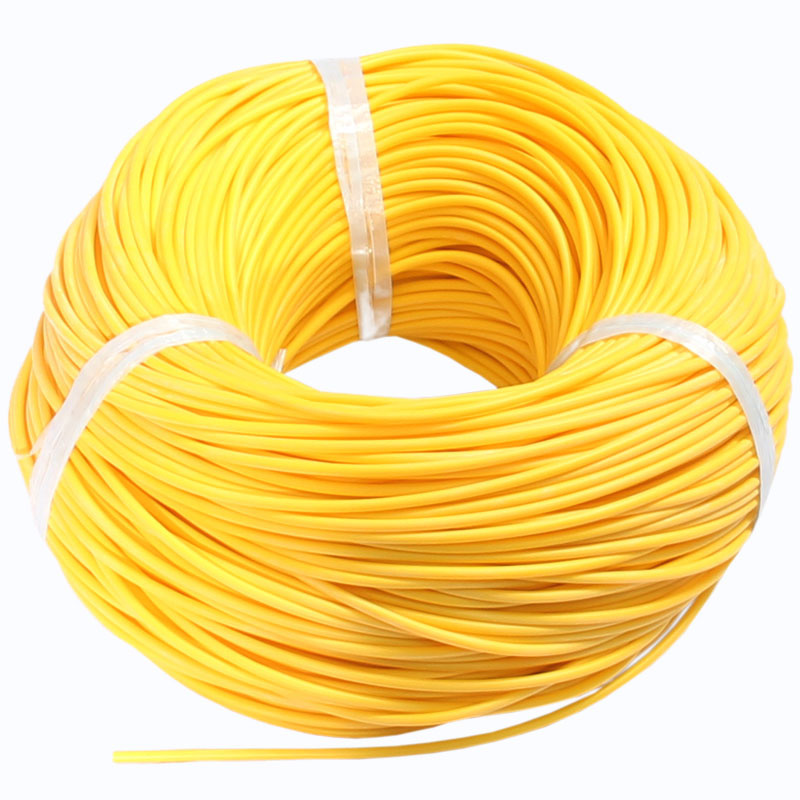

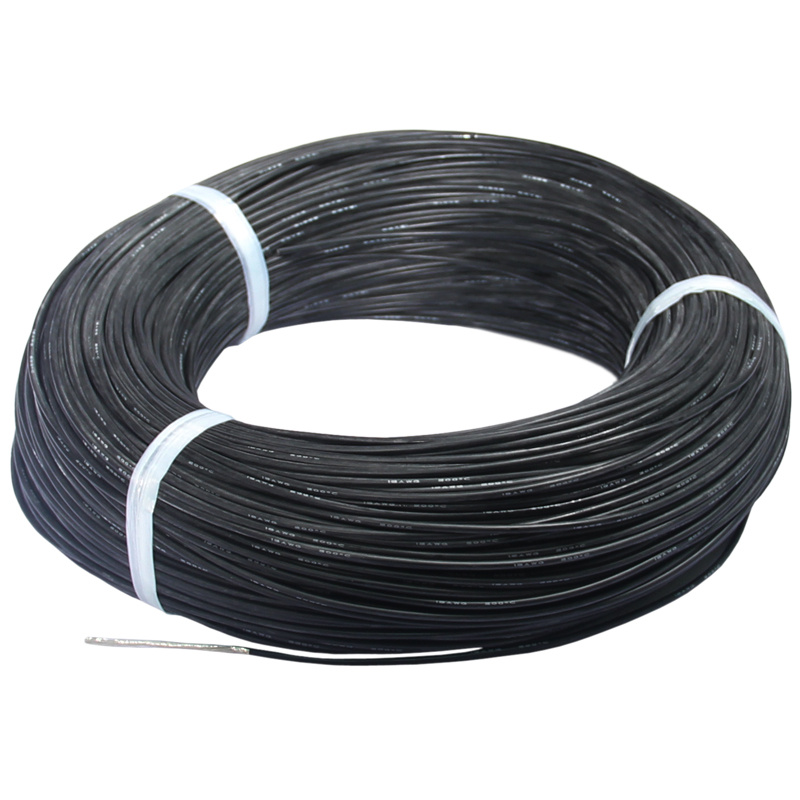

Silicone Rubber Electrical Wire 26AWG with UL3132

Name: Silicone Rubber Electrical Wire 26AWG with UL3132
Brand: all-electronics-online.com
SKU: 809210145
Availability: InStock
Rating: 4.6 (133 reviews)

Price:	US $ 0.122-8/Meter
Min Order:	3000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Silicone Rubber Cable:	(UL3132--26#)
Type:	Insulated
Conductor Type:	Solid
Application:	Underground
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	RoHS
Sheath Material:	Silicone Rubber Cable
Brand:	High Temperature

Product Description

Silicone Insulated Cable 26AWG with UL3132
Nominal Voltage: 300v
Temperature Range: -60º C---+150º C
O. D. Tolerance: ± 0.10mm
Testing Voltage: 1500V
Conductor: Tinned, nickeled, silver plated, gold plated copper
Isulator: Silicone rubber
Colors; White-blue-red-black-brown-yellow-green-yellow/gree-transparent
Construction of conductor: 7/0.16
Diameter: 0.46mm
Thickness of Insulator: 0.33mm
Over Diameter: 1.22mm
Conductor Resistance: 145, 65Ohm/km
Permissible Ampacity 2.16
Packing: 305/610m/coil

They are the sme with the inner fixed wires for headlamp, home appliance, mechanical and electrical machine, ect

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
