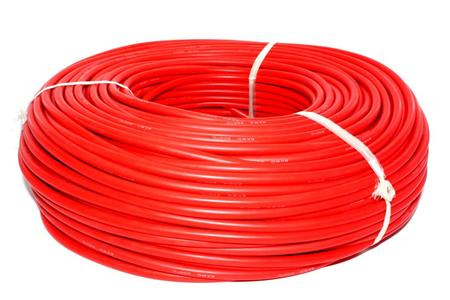

Silicone Rubber Electrical Wire with UL3132

Name: Silicone Rubber Electrical Wire with UL3132
Brand: all-electronics-online.com
SKU: 809208135
Availability: InStock
Rating: 4.6 (145 reviews)

Price:	US $ 0.26-8.6/Meter
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL3132
Silicone Rubber Cable:	(UL3132)
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	RoHS
Brand:	Dewei

Product Description

Silicone Insulated Cable with UL3132
Nominal Voltage:300V
Temperature Range:-60ºC to 150ºC
Conductor:Nickel&Silver&Tinned copper
Insulator:silicone rubber
O.D.Tolerance:±0.10mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect

size(AWG)	con.of conductor.(NO/mm)	Diameter (MM)	Thickness of insulator(MM)	over diameter (MM)	Packing(M/COIL)
28	7/0.127	0.37	0.38	1.03	610/305
26	7/0.16	0.46	0.38	1.12	610/305
24	7/0.20	0.61	0.38	1.27	305
22	12/0.18	0.79	0.38	1.45	305
20	21/0.18	0.92	0.38	1.68	305
18	34/0.18	1.19	0.38	1.95	305
16	52/0.18	1.53	0.38	2.29	305

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
