Silicone Rubber Heating Wireul3066

Name: Silicone Rubber Heating Wireul3066
Brand: all-electronics-online.com
SKU: 685633815
Availability: InStock
Rating: 5 (39 reviews)

Price:	US $ 0.5-2.5/Piece
Trade Terms:	FOB,others
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SR-30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:	1 mm to 3mm
Color:	White
Usage:	Heat
Control Type:	Digital
Control Method:	Electronic Type
Operating Principle:	Conduct
Brand:	Senphus

Product Description

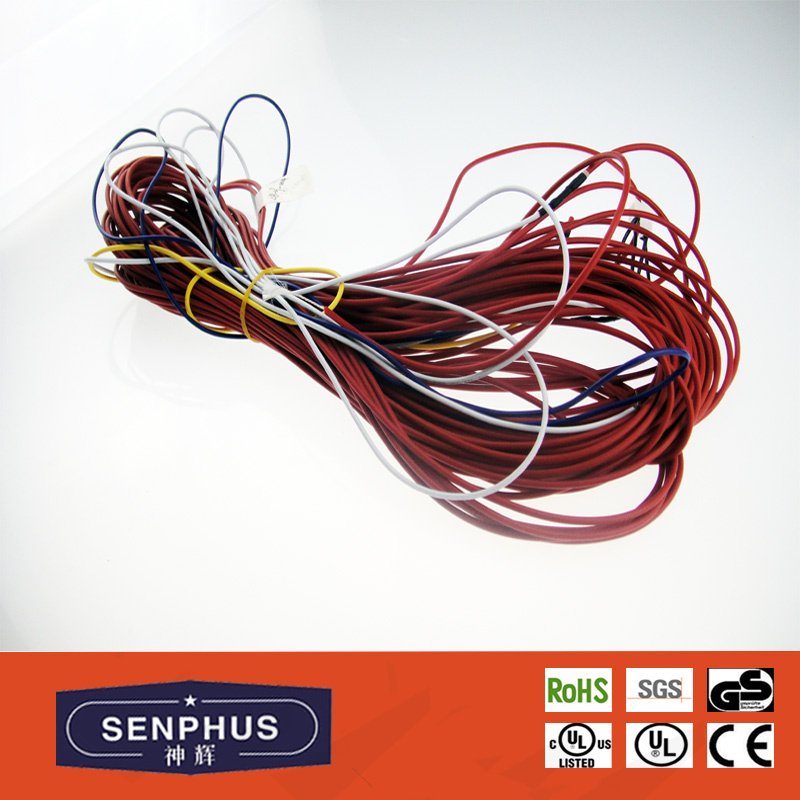

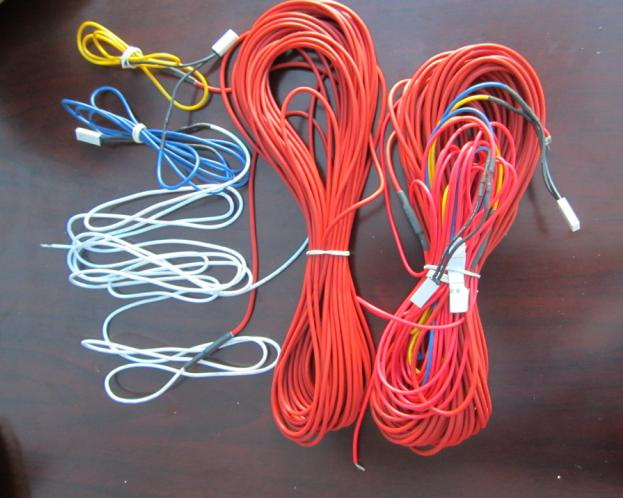

Silicone Rubber Heating WireUL3066

Product Description
External diameter of cover: 1.2~6 mm
Wire Dia: 1* 0.75
Conductor: Ni-Cr, constantan
Temperature Rating: 200C degree
Color: White, black, red, grey, etc
Insulator: Silicone rubber
Isulation voltage: 3000V
Rated voltage: 600V
Resister range: 0.1-20000Ω /m
Diameter range: 1.2-6.0mm
Product life: More than 10000h

Voltage	Watt	Length
V	W	M
220-240/110	15	3
220-240/110	15	3.5
220-240/110	15	4
220-240/110	25	3.5
220-240/110	25	4.3or4.5
220-240/110	50	6
220-240/110	50	7
220-240/110	80	9
220-240/110	100	12
220-240/110	110	15
220-240/110	250	20

Apply:
Refrigeratory, air-conditioner, electric cooker, defrost, electric blanket, electric oven, teapot, flowerpot, anti-icing, etc

Structure&test
1. Core: Glass fiber or polyester fiber
2. Heating thread: Constantan, nickel-chromium, iron chromium, copper nickel
3. Insulator: Silicon rubber of different thickness
5. Bend test: 5000 times (according to UL/IEC standard)
5. Circumnutating test: 250000 times ( according to UL/ IEC standard)

Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.

We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.

Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.

Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.

Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!

OEM is welcome! !
