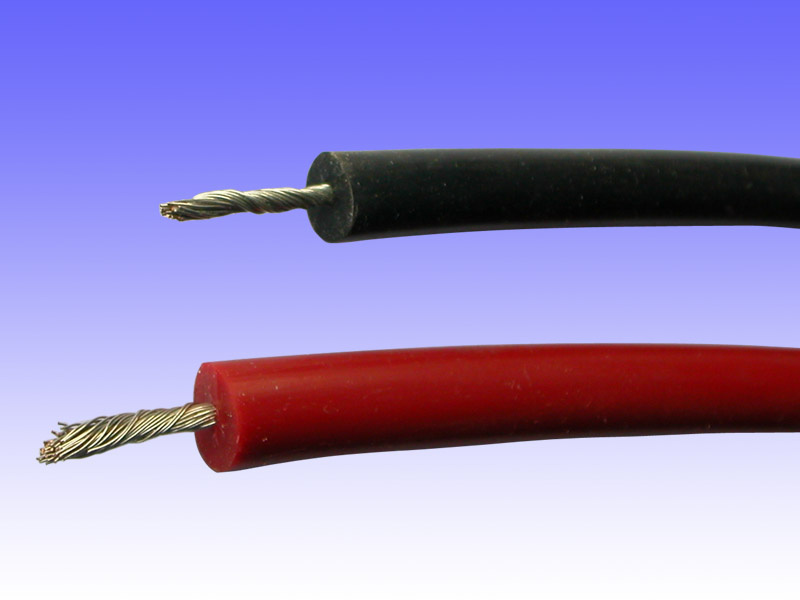

Silicone Rubber High Voltage Wire with UL3239

Name: Silicone Rubber High Voltage Wire with UL3239
Brand: all-electronics-online.com
SKU: 764231775
Availability: InStock
Rating: 4.3 (37 reviews)

Price:	US $ 0.211-9.87/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL 3239
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Silicone Rubber Wire:	with High Voltage
Type:	Insulated
Conductor Type:	Stranded
Application:	Military Series
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	RoHS
Sheath Material:	Silicone Rubber
Range Of Application:	Household Appliance,Electric Machines
Brand:	Dewei

Product Description

Nominal Voltage:3KV,6KV,10KV,20KV,30KV
Temperature Range:-60ºC~200ºC
Conductir:28 to 14AWG Tinned copper
Isulation:Silicone
O.D Allowance:±0.10mm
Colours:Black-brown-red-orange-yellow-green-blue-grey-white-violet-greeb/yelow etc
Apply to Household appliance,Iliumination&Lighting&Headlamp,electric machines,temperature sensor,Military series,Metallurgy Chimical series,Motor cars&Ships Electrical Installation.

Conductor			Insulation										Packing
Conductor			3000V		6000V		10000V		20000V		30000V		Packing
AWG	Conductor constructionNO*ømm	Diameter	Insulation Thinckness(mm)	Over Diameter(mm)	Insulation Thickness(mm)	Over Diameter(mm)	Insulation Thickness(mm)	Over Diameter(mm)	Insulation Thickness(mm)	Over Diameter(mm)	Insulation Thickness(mm)	Over Diameter(mm)	Mt/coils
28	7*0.127	0.38	0.5	1.37	0.7	1.77	1.0	2.37	1.3	2.97	1.7	3.77	305
26	7*0.16	0.48	0.5	1.49	0.7	1.89	1.0	2.49	1.3	3.09	1.7	3.89	305
24	7/0.2	0.60	0.5	1.60	0.7	2.00	1.0	2.60	1.3	3.20	1.7	4.00	305
22	22*0.14	0.76	0.5	1.76	0.7	2.16	1.0	2.76.	1.3	3.36	1.7	4.16	305
20	21/0.18	0.91	0.5	1.91	0.7	2.31	1.0	2.91	1.3	3.51	1.7	4.31	305
18	34/0.18	1.17	0.5	2.17	0.7	2.57	1.0	3.17	1.3	3.77	1.7	4.57	305
16	52*0.18	1.50	0.5	2.50	0.7	2.90	1.0	3.50	1.3	4.10	1.7	4.90	200
14	41/0.254	1.83	0.6	3.03	0.8	3.03	1.2	4.23	1.5	4.83	1.7	5.83	100

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
