Silicone Rubber Waterproof Flexible Heating Element

Name: Silicone Rubber Waterproof Flexible Heating Element
Brand: all-electronics-online.com
SKU: 806023735
Availability: InStock
Rating: 4.5 (101 reviews)

Price:	US $ 1.68-2.36/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BM300
Working Temperature:	-60-+250 Deg C
Dimension(LWH):	Customized
Max. Power Density:	5 W/Sq Cm Depending on Application
Resistance Tolerance:	About +/- 5%
Voltage:	1.5V--800V
Length Of Cord:	1 Meter
Power Source:	Electric
Flammability:	Flame Retardant
Thickness:	1.5-4 mm
Power(W):	0.3W/Cm2

Product Description

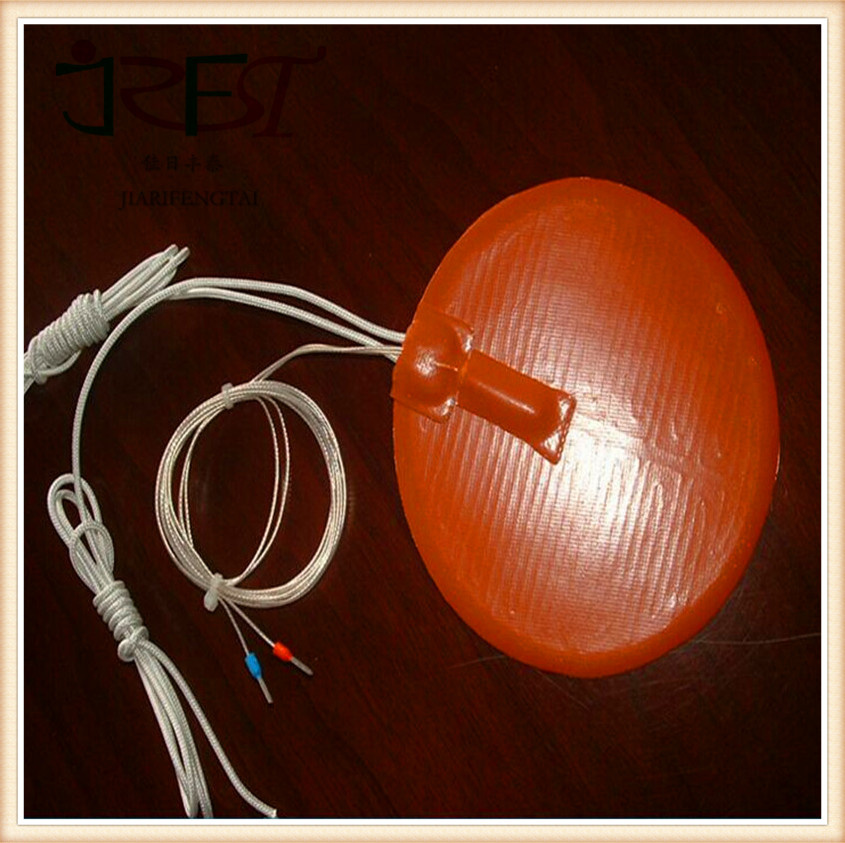

Silicone Rubber Waterproof Flexible Heating Element

Specifications
1.Silicone rubber material
2.Any size and shape available
3.The lowest price for wholesale
4.One year guarantee time

Description:

Product	Model NO.		Material	Hardness
Silicone Heater	XD-H-0917		Orange High Temperature Silicone	60±3
Shape			Data
Size: mm			Rated Voltage	Customize
			Rated Wattage	00.07-1/cm2
			Static Resistance	Customize
			Max Temperature can bear	250C
			Max Used Temperature	180-200C
			Compressive Strength	≥3KV
			Insulation Resistance	≥100MΩ
			Tensile Strength	≥8.0Mpa/M2
			Elongation at Break	≥4%
Length: Customize	Cable	300mm(standard)	Peel Strength	≥2500N/M2
Width: Customize	Specification of the cable	AWG16/18/22	Compressive Stress	>15kg/cm2
Thickness: 1.5mm	Colour of Cable	Orange or white	Heating Wire	Nickel-chromium wire
Parts	Adhesive	Thermostat	Thermistors

Technical Data:

Model	BM300	Length of wire	Depend on your requirment
Size	Any size can custom-made	Working temp	-60~+250Deg C /-76~+482Deg F
Description:	1. Silicon Rubber Heating Pad/Sheet has advantages of thinness, lightness, sticky and flexibility. 2. It can improve heat transfer, accelerate warming and decrease power under the process of operation. 3. They are heating fast and thermal conversion efficiency high.
Features:	(1) Heating fast and long time using (2) Flexible and customization (3) Waterproof and non-toxic
Before purchasing, Please confirm the size first(Iengthwidethickness)

Gas Container Heater:

Specification	Size	Voltage	Waltage	Temperature
Gas Container 15kg	1509301.5mm	220V	215W	0-100°C
Gas Container 50kg	20012001.5mm	220V	370W	0-100°C

RDB type Cupboard Heaters:

Part No.	RDB-50	RDB-100	RDB-150
Dimension(mm)	90*150	120*185	150*200
Rated Wattage(W)	50	100	150

Drum Heaters:

Specification	Drum heater 200l(55G)	Drum heater 20l(5G)	Drum heater 200l(55G)
Size	250*1740	200*860	125*1740
Electrical data	2000W	800W	1000W
Temperature range	30-150°C
Weight	2.5kg	1.3kg	1.7kg

Main applications:
1) Thermal transfer equipment;
2)  Composite bonding processes
3)  Airplane engine heaters and aerospace industry
4) Drums and other vessels and viscosity control and asphalt storage
5) Curing of plastic laminates
6) Computer peripherals such as laser printers, duplicating machines
