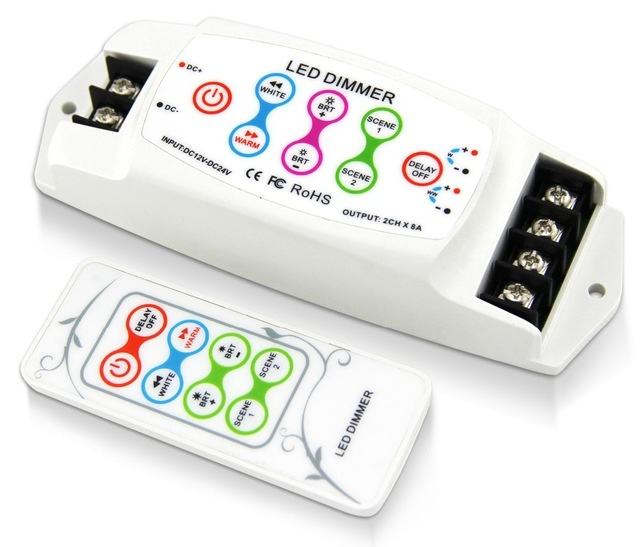

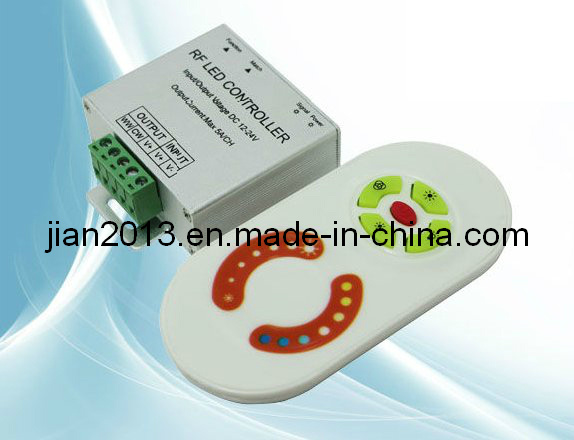

Simple New Design Professional Color-Temperature Touch Light Controller

Name: Simple New Design Professional Color-Temperature Touch Light Controller
Brand: all-electronics-online.com
SKU: 689244962
Availability: InStock
Rating: 4.4 (109 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JARF302
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Load Power:	288W
Warranty:	2
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button

Product Description

Specifications

Touch light controller
1 high precision capacitance touch control technology
2 more powerfull
3 CE/ROHS
4 a year warranty

Technical parameters

Controller
Working temperature: -20-60° C
Supply voltage: DC12V-24V
Output: 2 channels
Connection mode: Common anode
External dimension: L84 W64 H23mm
Packing size: L200 W146 H36mm
Net weight: 75g
Gross weight: 197g
Static power consumption: <1W
Output current: <5A (each channel)
Output power: 12V: <120W, 24V: <240W

Touch Remote Control
Working temperature: -20-60° C
Power supply mode: AAA * 3
Supply voltage: 1.5V * 3
Transmission frequency: 433.92 Mhz
Standby power consumption: 0.015mW
Standby current: 3uA
Working current: 200uA
Emission current: 10mA
Remote distance: About 30m
Standby time: 6 months
Remote control weight: 85g

Summarization

Five key touch light controller is wireless small volume controller which newly introduced by our company, touch remote control adopts high precision capacitance touch control technology, you can select the color temperature proportion and brightness you need by one button. It is convenient and easy. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass wall light etc. It has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.

Model Number: JA-RF302

Supply voltage: DC12-24V

Output: 2 channels

Output power: 12V:<120W, 24V:<240W

working temperature: -20-60°C

static power consumption: <1W

output current: <5A (each channel)

remote distance: about 30m

net weight: 75g

gross weight: 197g
