Simple PCB 2 Layer Copper Board with Blue Mask
| Price: |
US $ 1.01/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1024R2.4 |
| Surface Finish: |
HASL Lead Free |
| Copper Thick: |
1 Oz |
| Copper Thickiness: |
1.6mm |
| Legend Color: |
White |
| Solder Mask Color: |
Blue |
| Minimum Trace and Space: |
20mil/17mil |
| Minimum/Maximum Holes: |
0.7mm/3.85mm |
| Via: |
Via Tented |
| Board Plating: |
0.0030" |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

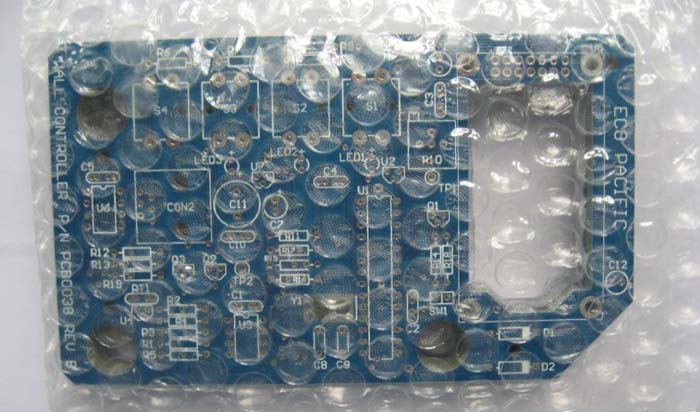

Double Sided PCB HASL Printed Circuit Board Lead Free With Blue Mask Applied In
Analogue Repeater
Commodity Introduction

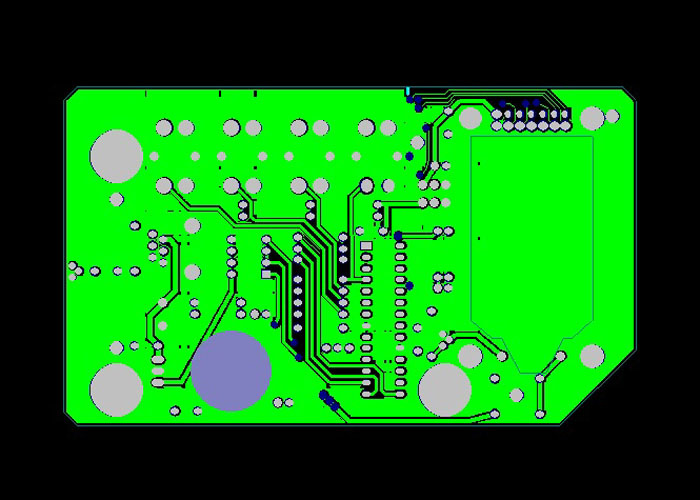

This is a type of FR-4 PCB for the application of Analogue Repeater. It's a 2 layer board at 1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Kuang Shun and Taiyo.
It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| PCB SIZE | 128 x 76mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB, 2 Layer PCB |
| Surface Mount Components | No |
| Through Hole Components | Yes |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| FR-4 core 1.5mm |
| copper ------- 18um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 20mil/17mil |
| Minimum / Maximum Holes: | 0.7mm/3.85mm |

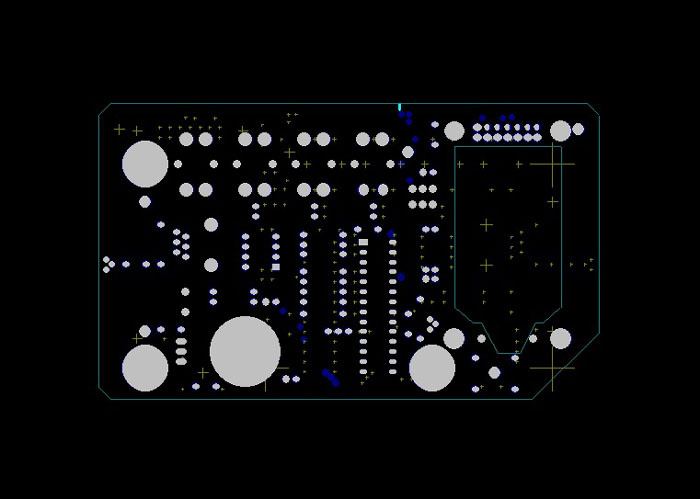

| Number of Different Holes: | 6 |
| Number of Drill Holes: | 315 |
| Number of Milled Slots: | 1 |
| Number of Internal Cutouts: | no |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140 TG>135, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Hot Air Soldering Leveling(HASL),
lead free, Sn>=2.54µm |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum |
| Solder Mask Color: | Blue, KSM-S6189BL04, Kuangshun supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Analogue repeater, POS System
Led Driver
Alarm System
12V Power Supply
Embedded Systems |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Specifications of Laminates FR-4
When ordering a copper clad laminate board, the FR-4 thickness and the copper foil thickness
must be specified separately.
FR-4 thickness is specified in thou or inches, and common thicknesses range from 10 thou (0.010
in, 254 µm) to 3 inches (76 mm).
Copper foil thickness is specified in units of ounces per square foot (oz/ft2), commonly referred to
simply as ounce. Common thicknesses are 1 oz/ft2 (300 g/m2), 2 oz/ft2 (600 g/m2), and 3 oz/ft2
(900 g/m2).These work out to thicknesses of 34.1 µm (1.34 thou), 68.2 µm (2.68 thou), and 102.3
µm (4.02 thou), respectively. Some PCB manufacturers refer to 1 oz/ft2 copper foil as having a
thickness of 35 µm (may also be referred to as 35 μ, 35 micron, or 35 mic).
1/0 - denotes 1 oz/ft2 copper one side, with no copper on the other side.
1/1 - denotes 1 oz/ft2 copper on both sides.
H/0 or H/H - denotes 0.5 oz/ft2 copper on one or both sides, respectively.
2/0 or 2/2 - denotes 2 oz/ft2 copper on one or both sides, respectively.
Due to the development needs of electronic product installation technology and PCB technology,
the high Tg (Glass temperature) FR-4 products was born.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
