Simplex Single Mode Sc/Upc to Sc/Upc Optical Fiber Patch Cord

Name: Simplex Single Mode Sc/Upc to Sc/Upc Optical Fiber Patch Cord
Brand: all-electronics-online.com
SKU: 826322525
Availability: InStock
Rating: 4.8 (34 reviews)

Price:	US $ 0.5/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fiber Patch Cord
Place Of Origin:	China (Mainland)
Brand Name:	Tw-Scie or OEM
Model Number:	2.0 or 3.0mm Patch Cord
Installation:	Indoor
Brand Of Fiber:	Customized
Loose Tube:	PBT
Waterblocking Material:	Water Blocking Tape
Outer Sheath Material:	MDPE / HDPE / LSZH
Outer Sheath Color:	Black
Armour Material:	Corrugated Steel Tape
Application:	Communication
Certification:	ISO9001
Type:	Fiber Optics
Connection Structure:	Patch Cord
Sheath Material:	LSZH

Product Description

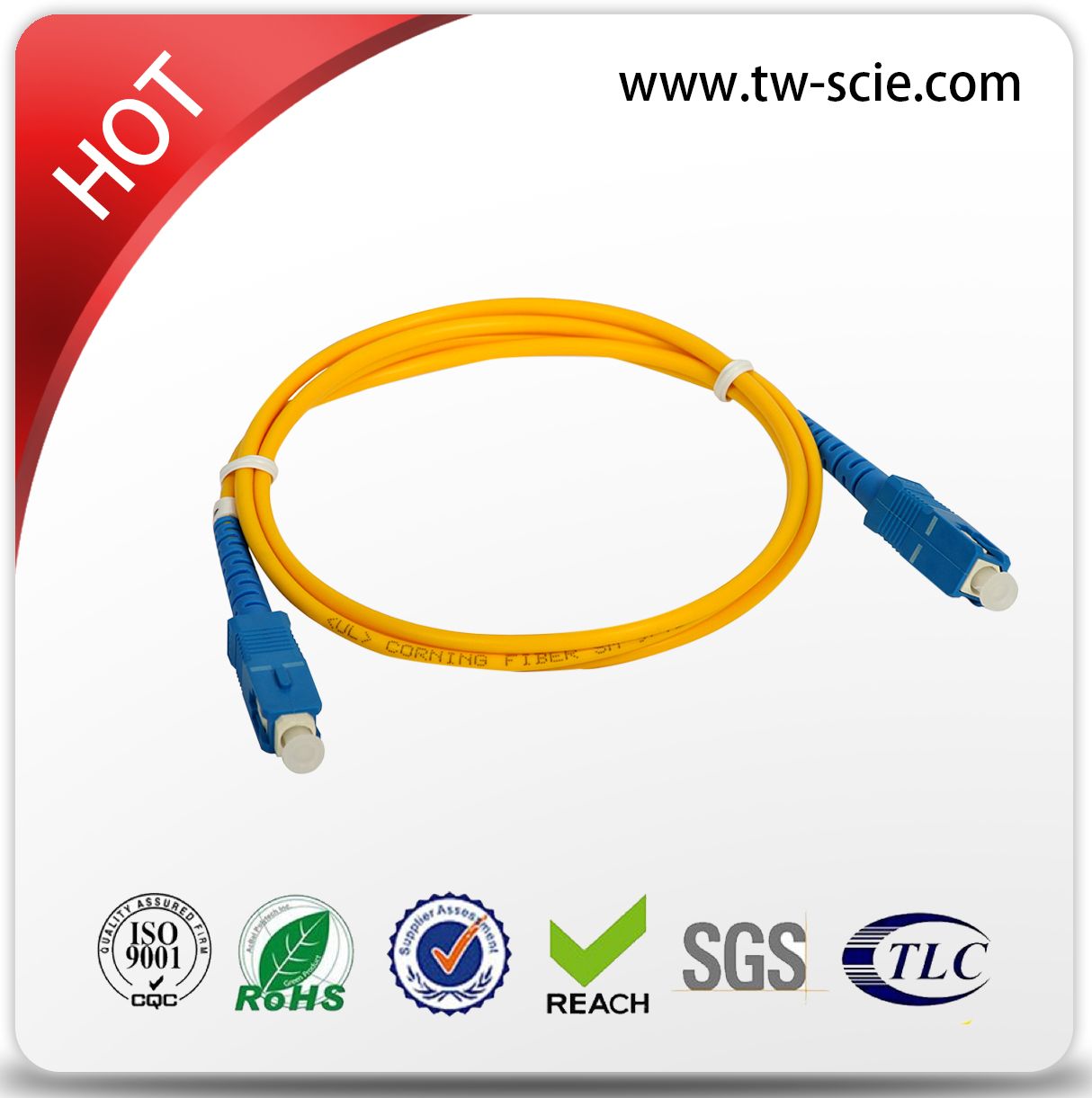

Simplex Single Mode SC/UPC to SC/UPC Optical Fiber Patch Cord

Features:

(1) Ceramic Ferrule;

(2) High return loss;

(3) Low insertion loss;

(4) Good repeatability and and exchangeability;

(5) Excellent Polished and 100% tested;

(6) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.

Performance Index

Item	SM(Single Mode)			MM(Multimode)
Fiber Cable Type	652D/G657A			OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125			62.5/125	50/125
Cable OD (mm)	0.9/1.6/1.8/2.0/2.4/3.0
Endface Type	PC	UPC	APC	UPC	UPC
Typical Insertion Loss (dB)	<0.2	<0.15	<0.2	<0.1	<0.1
Return Loss (dB)	>45	>50	>60	/
Insert-pull Test (dB)	<0.2		<0.3	<0.15
Interchangeability (dB)	<0.1		<0.15	<0.1
Anti-tensile Force (N)	>70
Temperature Range (ºC)	-40~+80

Applications:

Local Area Network (LAN)

Data communication network

Telecommunication optical transmission network

Optical access network(OAN)

Active device termination

Fiber optics data transmission(FODT)

Test Equipment

CATV

Packaging & Delivery:
Packaging Details
1pc/PE bag
according to customer's request.
Delivery Time
Shipped in 10 days after payment

Why choose us :

1.Competitive price
2. Fast delivery
3.Free sample provided
4.Longtime warranty
5.Reliable quality, OEM service available

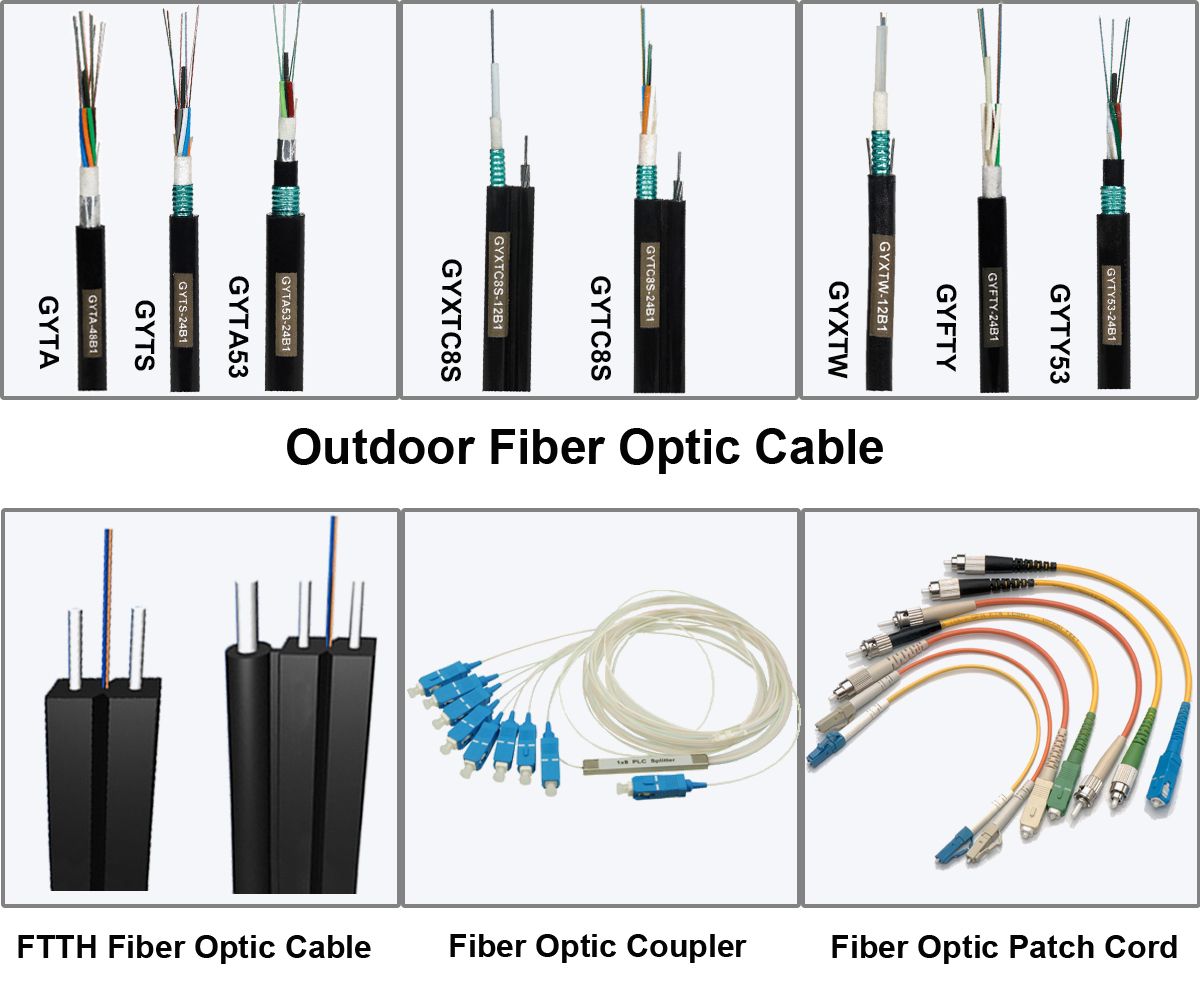

More Products:

If you have any questions or request,please let me know,i will reply you within 2 hours

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
