Single Core Cable 16mm/16mm Electrical Cable Price/Copper Core Cable 16mm

Name: Single Core Cable 16mm/16mm Electrical Cable Price/Copper Core Cable 16mm
Brand: all-electronics-online.com
SKU: 731937632
Availability: InStock
Rating: 4.9 (116 reviews)

Price:	US $ 1/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BV, VV, YJV.
Product Name:	16mm Power Cable/16mm2 Cable/16 Gauge Copper Wire
Number Of Cores:	Single/2/3/4/5/6/7/8/10/16 Core...
Rated Voltage:	0.6/1kv,1.8/3kv,3.6/6kv,6/6(10)Kv,8.7/10(15)Kv,12/
Cross Section Area/Measure:	3.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300/4
Standard:	IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 5023-
Conductor:	Stranded/Solid/Flexible Copper/Aluminum Conductor
Insulation:	XLPE/PVC/PE/Pur
Aplication:	Electric, House Wire, Building Wire...
Shield:	Copper Wire Screen(Cws), Aluminium Wire Screen(Aws
Armoured:	Steel Tape Armoured (Sta) or Steel Wire Armoured (
Type:	Insulated
Conductor Type:	Stranded
Application:	Electric, Power...
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	VDE
Brand:	Chang Qing Teng

Product Description

16mm power cable/16mm2 cable/16 gauge copper wire

Product Description

Standard

IEC 60502: Power cables with extruded insulation and their accessories for rated voltages from 1kV (Um=1.2kV) up to 30 kV (Um=36kV).

Conductor
Plain circular, compacted or shaped stranded copper or aluminum conductor, conform to IEC 60228 class 2.

Insulation

XLPE (cross-linked polyehtylene) rated at 90ºC.

Colors for core idendification

Single core - black or upon request

Two core - red, black

Three core - red, yellow, blue and black

Four core - red, yellow, blue, black and green/yellow

Five core - red, yellow, blue, black and green/yellow

Sheath

PVC type ST2 to IEC 60502, color black.

Application

Power Cables (Armored/Unarmored, PVC/XLPE ) are widely used in power systems of rated voltage 1000V and below such as urban
communities, office buildings, supermarkets, etc. Unarmored cables are designated for general use including burial, where they are not
likely to suffer mechniacal damage.

Specification: Cable Price 16mm 4 Core Armoured Power Cable - IEC 60502

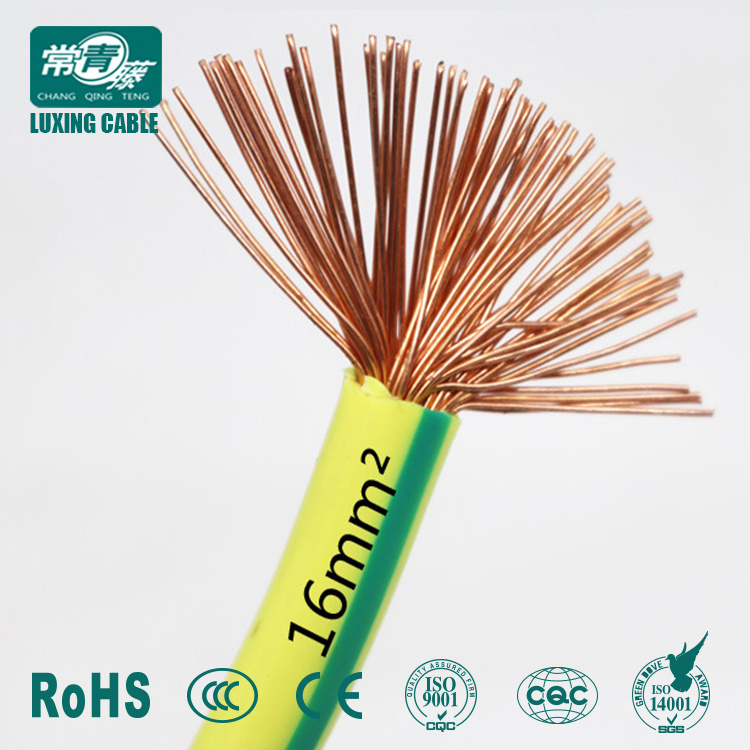

single core cable 16mm/16mm electrical cable price/copper core cable 16mm

Product Description

single core cable 16mm/16mm electrical cable price/copper core cable 16mm

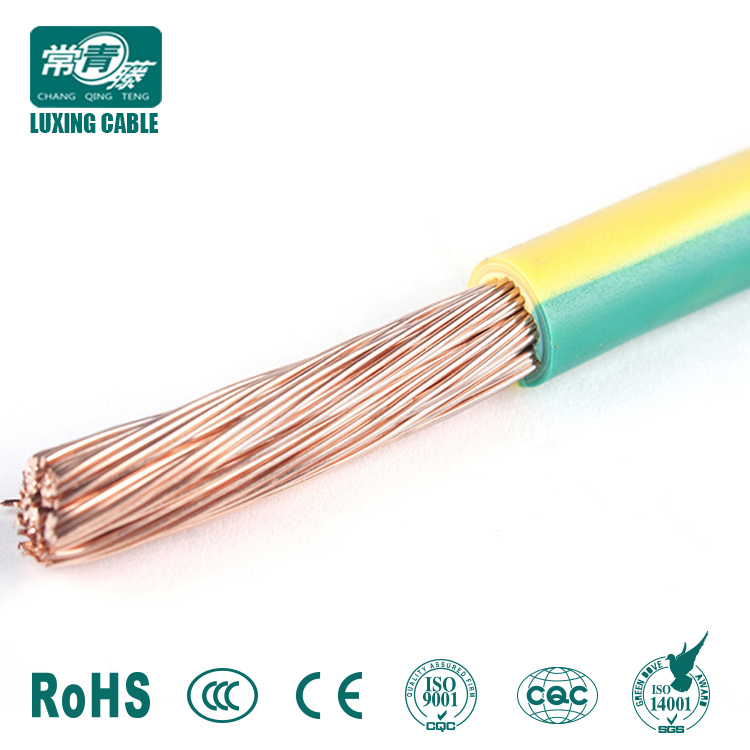

Flexible Electric Pvc Insulated Single Core Copper Cable 16Mm

Nominal Section(mm2)	Conductor Class	Insulation Thickness(mm)	Max. Ave. OD(mm)	Cable Weight(kg/km)	Conductor Max.DC resistance at 20ºC(Ω/km)		Min. Insu. resistance at 70ºC(MΩ.km)
Nominal Section(mm2)	Conductor Class	Insulation Thickness(mm)	Max. Ave. OD(mm)	Cable Weight(kg/km)	Non electroplating	Electroplating	Min. Insu. resistance at 70ºC(MΩ.km)
H07V-K 1.5	5	0.7	3.4	21.3	13.3	13.7	0.010
H07V-K 2.5	5	0.8	4.1	33.8	7.98	8.21	0.0095
H07V-K 4	5	0.8	4.8	50.3	4.95	5.09	0.0078
H07V-K 6	5	0.8	5.3	71.6	3.3	3.39	0.0068
H07V-K 10	5	1.0	6.8	122.1	1.91	1.95	0.0065
H07V-K 16	5	1.0	8.1	184.7	1.21	1.24	0.0053
H07V-K 25	5	1.2	10.2	286.2	0.78	0.795	0.0050
H07V-K 35	5	1.2	11.7	395.5	0.554	0.565	0.0043
H07V-K 50	5	1.4	13.9	539	0.386	0.393	0.0042
H07V-K 70	5	1.4	16	730	0.272	0.277	0.0036
H07V-K 95	5	1.6	18.2	900	0.206	0.21	0.0036
H07V-K 120	5	1.6	20.2	1135	0.161	0.164	0.0032
H07V-K 150	5	1.8	22.5	1410	0.129	0.132	0.0032
H07V-K 185	5	2.0	24.9	1845	0.106	0.108	0.0032
H07V-K 240	5	2.2	28.4	2270	0.0817	0.0817	0.0031

Contact:

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
