Single Core Cu/XLPE/PVC/Awa Armoured /PVC Medium Voltage Power Cable 3.6/6.0kv

Name: Single Core Cu/XLPE/PVC/Awa Armoured /PVC Medium Voltage Power Cable 3.6/6.0kv
Brand: all-electronics-online.com
SKU: 835270215
Availability: InStock
Rating: 4.3 (101 reviews)

Price:	US $ 0.1-30/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Single Core Medium Voltage Power Cable 3.6/6.0KV
Product Name:	Single Core Medium Voltage Power Cable 3.6/6.0kv
Rated Voltage:	0.6- 1kv-35kv
Conductor:	Copper
Insulation:	XLPE / PVC
Sheath:	PVC
Core Number:	1 , 3
Color Color:	Red , Yellow , Blue ,Green or as Your Requirement
Origine:	Shandong , China
Packaging:	Wooden Drum
Shipping:	3-10 Working Days
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Model:	XLPE Power Cable
Brand:	Chan Qing Teng

Product Description

Quality goes first, we pay highly attention to this.

Good quality and competitive price will be your best choice.

Choose what you like, we will offer you the best prices.

Any inquiries or questions, pls contact me freely!

Application

The cable is used for fixed installations such as electric power distribution networks or industrial installations,
which is laid indoors, outdoors, in tunnel, in cable trench, or direct in ground, able to bear external mechanical force, but unable to bear large pulling force.

Technical Information
Conductor Material:	Copper
Conductor Identification:	Coloured tape under screen
Conductor Shape:	Circular
Conductor Flexibility:	Stranded class 2
Material of the Inner Semi-conductor:	Semi-conducting compound
Insulation:	XLPE (Chemical)
Armour Type:	Aluminium wires
Screen:	Copper tape
Outer Sheath:	PVC
Inner Sheath:	PVC
Material of the External Semi-conduct:	Extruded strippable
Colour:	Red
Rated Voltage Uo/U (Um):	6350/11000V to BS6622 & IEC 60502-2
Installation Temperature:	Minimum: 0°C Maximum: 60°C
Installation Type:	Direct burial or in ducts
Operating Temperature:	Minimum: -15°C Maximum: 90°C
Short-circuit Maximum Conductor Temperature:	250°C
Flame Retardant:	Yes, IEC 60332-1
Bending Radius:	15 x Ø

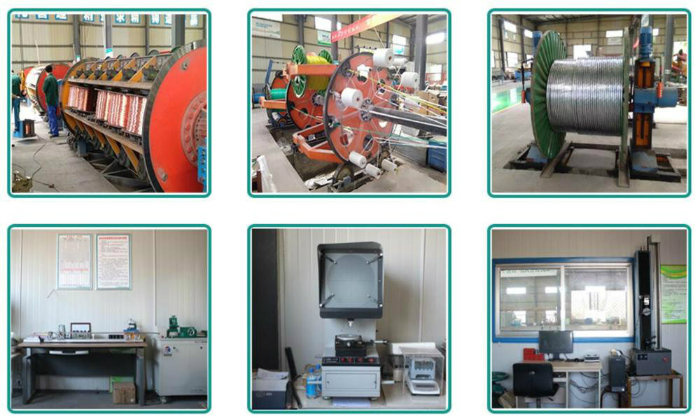

Luxing Factory : our production base

Luxing Cable Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

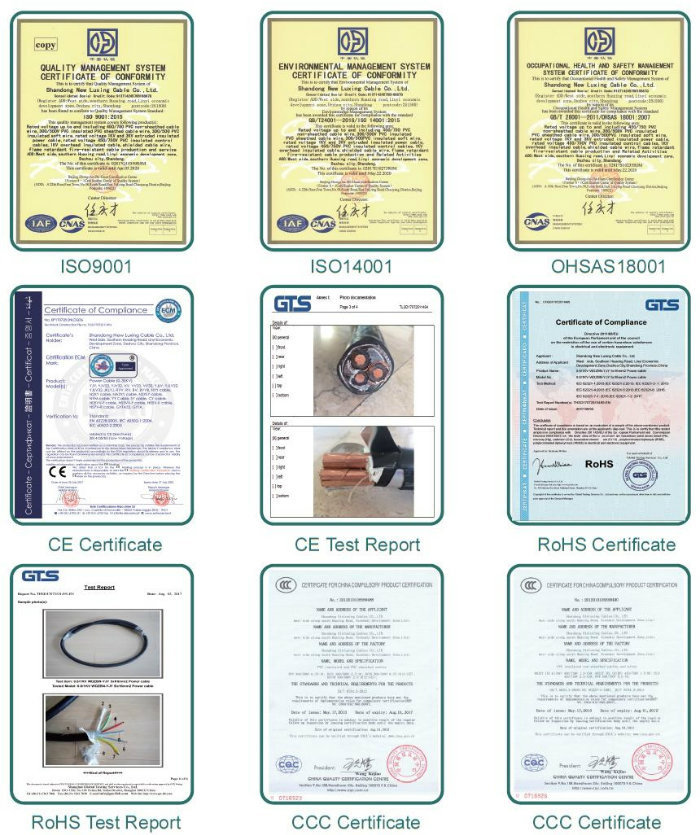

Certificates

Strict Quality Test

Packaging & Shipping

Why choose us

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency

Contact us

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
