Name: Single Core Insulation Copper Wire PVC Electrical Wire
Brand: all-electronics-online.com
SKU: 831031715
Availability: InStock
Rating: 4.3 (38 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	6100/Meter
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	2468
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	PVC
Certification:	CSA, Ts16949
Application:	Home Application,LED Lamp, Oven,Machine
Conductor Material:	Tinned Copper
Range Of Application:	Home Application,LED Lamp, Oven,Machine
Brand:	Mysun

Product Description

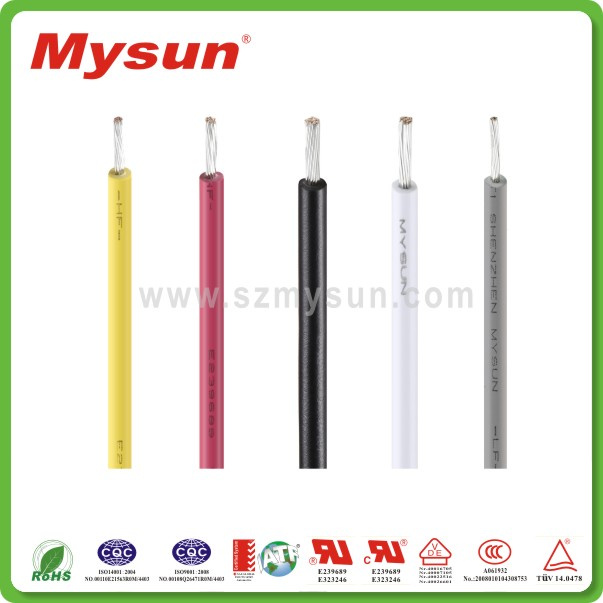

Single core insulation copper wire PVC Electrical wire

Specifications:

Nominal voltage: 300V

Temperature range: 80C

Standard: UL 758

Conductor: Tinned copper

Insulation: PVC

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
32	7/0.08	0.24	0.38	1.00*2.00	542	610/2000
30	7/0.10	0.30		1.06*2.12	347
28	7/0.127	0.38		1.14*2.28	218
26	7/0.16	0.48		1.24*2.48	138
24	11/0.16	0.61		1.37*2.74	85.9	305/1000
22	17/0.16	0.76		1.52*3.04	54.3
20	21/0.18	0.95		1.71*3.42	33.9
18	34/0.18	1.21		1.97*3.94	21.4
16	26/0.254	1.50		2.26*4.52	13.5

Payment terms:

LC, TT, Western Union, Money Gram and PayPal

Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days

About us:

Shenzhen MYSUN Insulation Materials Co. Ltd. is a comprehensive enterprise integrated with manufacture, distribution and trade. We specialize in production of all sorts of wire of high temperature and connecting which have been subjected to test of UL, cUL, VED, CE, CCC and SGS, and supply enterprises such as home appliance, electronics, lighting and so on with connecting wiring harness and processing service.

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
