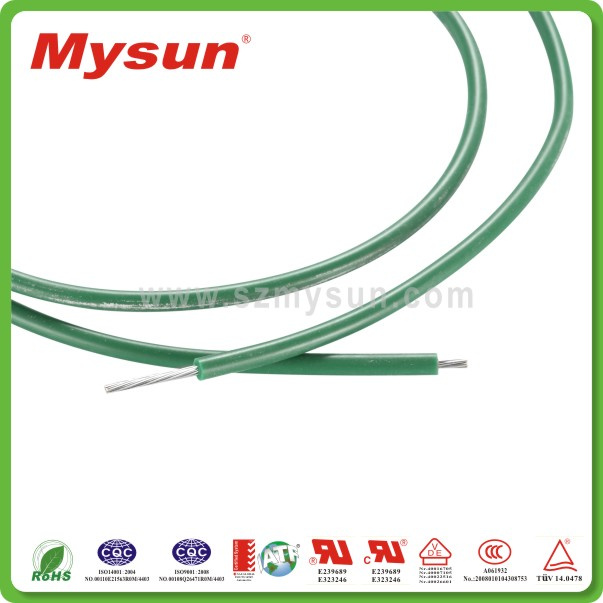

Single Core Low Voltage Insulation PVC electrical Wire

Name: Single Core Low Voltage Insulation PVC electrical Wire
Brand: all-electronics-online.com
SKU: 833063575
Availability: InStock
Rating: 5 (42 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	6100/Meter
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	1569
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	PVC
Certification:	CSA, Iatf16949
Application:	Home Application,LED Lamp, Oven,Machine
Conductor Material:	Tinned Copper
Range Of Application:	Home Application,LED Lamp, Oven,Machine
Brand:	Mysun

Product Description

Single Core low voltage insulation PVC Electical wire

Specifications:

Nominal voltage: 300V

Temperature range: 80/90/105C

Standard: UL 758

Conductor: Tinned copper

Insulation: PVC

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
30	7/0.10	0.30	0.40	1.10	381	610/2000
28	7/0.12	0.37	0.41	1.20	237.25
26	7/0.16	0.48		1.30	150
24	11/0.16	0.61		1.43	94.2
22	17/0.16	0.76	0.42	1.60	59.4
20	21/0.18	0.95	0.43	1.80	36.7
18	41/0.16	1.17	0.47	2.10	23.2
16	26/0.254	1.49	0.46	2.40	14.6	305/1000
14	41/0.254	1.88	0.41	2.70	8.96
12	65/0.254	2.36	0.42	3.20	5.64
10	105/0.254	3.42	0.44	4.30	3.54

Payment terms:

LC, TT, Western Union, Money Gram and PayPal

Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days

About us:

Shenzhen MYSUN Insulation Materials Co. Ltd. is a comprehensive enterprise integrated with manufacture, distribution and trade. We specialize in production of all sorts of wire of high temperature and connecting which have been subjected to test of UL, cUL, VED, CE, CCC and SGS, and supply enterprises such as home appliance, electronics, lighting and so on with connecting wiring harness and processing service.

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
