Single Core PVC Insulated Electric Wire Nya
| Price: |
US $ 0.12-2.5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
NYA |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Sheath Material: |
No Sheath |
| Brand: |
OEM |
Product Description
Application and Description
The NYA conductor is suitable for most current wiring solutions for residential, commercial and industrial
environments. It is used in service entrance, feeders and branch circuits for permanent installations.
NYA conductors in sizes 14 AWG to 1000 Kcmil (MCM) can be installed in conduits and other raceways. The
temperature of installation shall not exceed 75ºC(THW), not exceed 90ºC(THW-2).

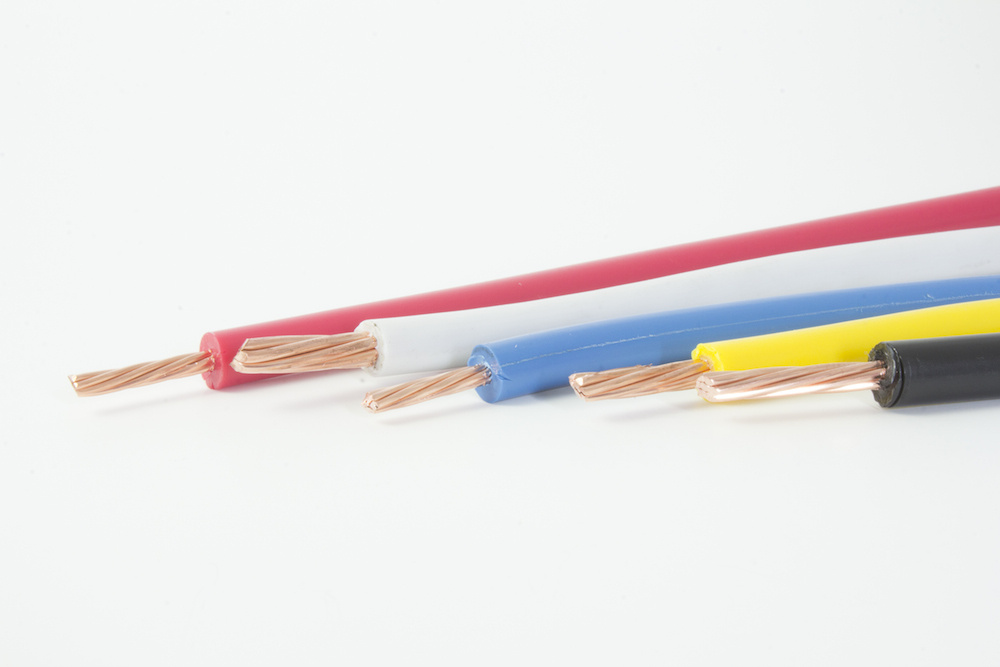

Cable Construction
Conductor:
Bare annealed copper conductor, solid or stranded
Insulation:
PVC 70°C insulation
Color:
upon request, black is preferable
Technical Compliances
- ASTM B3, B8
- IEC60502
- UL 83 - Thermoplastic-Insulated Wires and Cables
- UL 1581 - Electrical Wires, Cables and Flexible Cords
Cable Parameter
| AWG OR KCMIL | STRAND | NOMINAL INSULATION THICKNESS INCH/MM | NOMINL OVERALL DIAMETER INCH/MM | CABLE
WEIGHT
LBS/KFT KG/KM |
|---|
| 14 | 1 | 0.030 | 0.76 | 0.169 |
| 12 | 1 | 0.030 | 0.76 | 0.189 |
| 10 | 1 | 0.030 | 0.76 | 0.213 |
| 8 | 1 | 0.045 | 1.14 | 0.240 |
| 6 | 1 | 0.060 | 1.52 | 0.276 |
| 14 | 7 | 0.030 | 0.76 | 0.177 |
| 12 | 7 | 0.030 | 0.76 | 0.201 |
| 10 | 7 | 0.030 | 0.76 | 0.228 |
| 8 | 7 | 0.045 | 1.14 | 0.291 |
| 6 | 7 | 0.060 | 1.52 | 0.335 |
| 4 | 7 | 0.060 | 1.52 | 0.386 |
| 2 | 7 | 0.080 | 2.03 | 0.445 |
| 1 | 19 | 0.080 | 2.03 | 0.531 |
| 1/0 | 19 | 0.080 | 2.03 | 0.575 |
| 2/0 | 19 | 0.080 | 2.03 | 0.622 |
| 3/0 | 19 | 0.080 | 2.03 | 0.677 |
| 4/0 | 37 | 0.080 | 2.03 | 0.740 |
| 250 | 37 | 0.095 | 2.41 | 0.823 |
| 300 | 37 | 0.095 | 2.41 | 0.882 |
| 350 | 37 | 0.095 | 2.41 | 0.937 |
| 400 | 37 | 0.095 | 2.41 | 0.984 |
| 500 | 61 | 0.095 | 2.41 | 1.079 |
| 600 | 61 | 0.110 | 2.79 | 1.197 |
| 700 | 61 | 0.110 | 2.79 | 1.272 |
| 750 | 61 | 0.110 | 2.79 | 1.307 |
| 800 | 61 | 0.110 | 2.79 | 1.343 |
| 900 | 61 | 0.110 | 2.79 | 1.409 |
| 1000 | 61 | 0.110 | 2.79 | 1.472 |

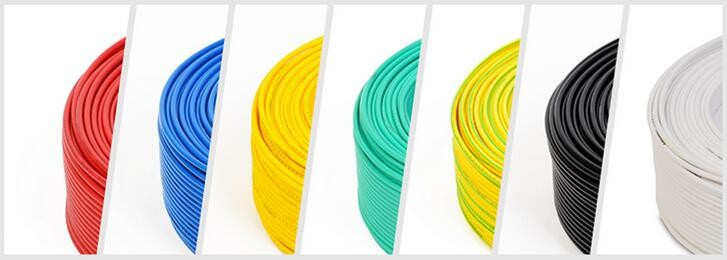

Available Color

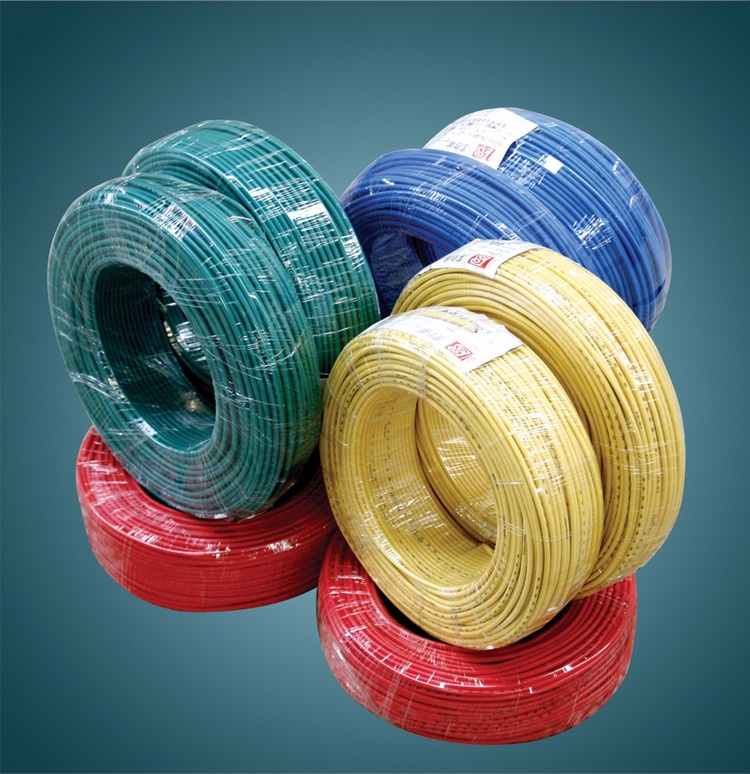

Packing shipping
Why Choose Us ?
1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
If you have another question, pls feel free to contact us below
Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
