| Prod Model: |
Pigtail |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: |
Monomode Pigtail |
| Connector: |
LC Sc or Other |
| Il: |
0.2dB |
| Operating Temperature: |
-40~80 |
| Material: |
PVC, LSZH, Ofnp |
| Color: |
Yellow or White |
| Diamter: |
0.9mm |
| Place Of Origin: |
Shenzhen of China |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
| Brand: |
Takfly |
Product Description

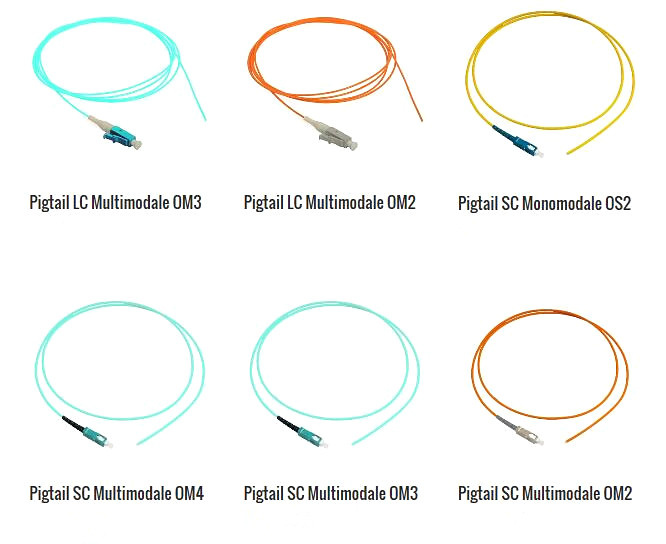

Single mode 900um Sc LC monomode Fiber Optic Pigtail
Monomode Fiber Optic Pigtail are used in permanent connections between fiber patch panels and incoming cables / single blown fibers.
Our offers a wide range of pigtails, designed and manufactured for demanding network applications. It comprises of
multimode and singlemode. Pigtails are pre-constructed with connectors. Connector options include small form factors
such as LC, E2000 as well as SC, FC and ST. These are based on 900μm tight buffer cores and suitable for internal use
only inside suitable Fiber Management Systems.
Standards Compliance
. ISO/IEC 11801
. TIA-568-C.3
. EN50173 -1,ANSI TIA/EIA 568B
Features
. Constructed from high quality connectors and standard fibers
. Wide range of connector and fibre options available
. Tight Buffer 900µm buffer internal construction as standard
. Custom lengths, connector combinations and polishes are available.
. Other cable diameters and fibre types available on request
Specifications
| ST
PC/UPC/APC | SC
PC/UPC/APC | FC
PC/UPC/APC | LC
PC/UPC/APC | MTRJ |
| Insertion Loss (dB) Max. | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.6 |
| Insertion Loss (dB) Typical. | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 |
| Return Loss SM(dB) | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |
| Return Loss MM(dB) | ≥45/≥50/≥60 | ≥45/≥50/≥60 | ≥45/≥50/≥60 | ≥45/≥50/≥60 | ≥45 |
| Sheath Material | PVC or LSZH |
| Operating Temperature | -40°C to +80°C |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Ordering Guide
| AA | B | C | D | E |
| connector Type | Fiber Type | Length | Jacket Material | Jacket Color(CL) |
| FP,SP,SA,LP | OM1=62.5/125 OM1
OM2=50/125 OM2
OM3=50/125 OM3
OM4=50/125 OM4
G652D=9/125 G652D
G657A=9/125 G657A | 01=1M
02=2M
03=3M
04=4M | 1=PVC
2=LSZH | Yellow (Singlemode),
Orange (Multimode OM1~OM2),
Aqua (Multimode OM3),
Purple (Multimode OM4).
Other colors may be
available upon request. |
