Single Mode Duplex Flat Tight Buffered LSZH Indoor Fiber Cable

Name: Single Mode Duplex Flat Tight Buffered LSZH Indoor Fiber Cable
Brand: all-electronics-online.com
SKU: 791236345
Availability: InStock
Rating: 4.6 (60 reviews)

Price:	US $ 0.3-5/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SM-DUP/FLAT
Tensile Strength:	Over 500n
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CCC
Sheath Material:	LSZH

Product Description

The duplex flat cable is suitable for patch cord making. And this a kind of indoor cable, could be used in the interconnection of fiber optic equipment.

DFC duplex flat cable use 900µm tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, such unit is extruded with a layer of PVC or LSZH material as inner jacket. The cable is completed with a layer of flat PVC or LSZH jacket. The default diameter of Child Cable is 1.8mm, and 2.0mm,2.8mm could be customized.

Item Details

Fiber Count: 2 Fibers
Fiber Type: Single-mode G.652D
Out Jacket: LSZH
Cable DIA.: 1.8mm (2.0mm, 2.8mm could be customized)
Fiber Color: Yellow

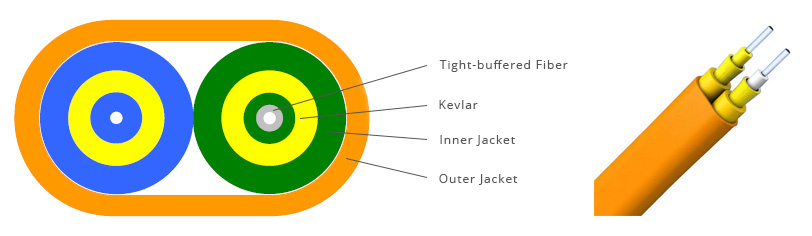

Cable Structure

Features

- Good mechanical and environmental characteristics.- Flat structure ensure compact arrangement of fibers.- All dielectric structure protect it from electromagnetic influence.- The outer jacket material have many advantages such as anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.- Aramid yarn as strength member make cable have excellent tensile strength.- Tight buffer fiber have excellent flame-retardant performance.- Tight buffer fiber ease of stripping.

Application

- Duplex optical fiber jumper or pigtail- Indoor cable distribution- Interconnect between instruments, communication equipment

Specifications

Tight buffer Diameter	Out Sheath Diameter	Weight	Minimum Allowable Tensile Strength (N)		Minimum Allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage Temperature
(MM)	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(ºC)
1.8	3.5x5.0	59	800	300	1000	500	20D	10D	-20+60
2	3.2x5.6	71	800	300	1000	500	20D	10D	-20+60
2.8	5.0x8.0	90	800	300	1000	500	20D	10D	-20+60

		G.652	50/125µm	62.5/125µm
Attenuation (+20°C) (dB/km)	@850nm		≤3.0	≤3.0
	@1300nm		≤1.0	≤1.0
	@1310nm	≤0.36
	@1550nm	≤0.22
Bandwidth (Class A) (MHz·km)	@850nm		≥600	≥200
Bandwidth (Class A) (MHz·km)	@1300nm		≥1200	≥600
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc (nm)		≤1260

Package


Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

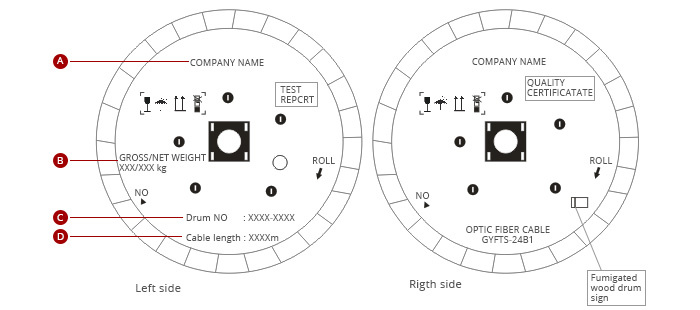

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross / Net weight
3. Drum No: XX
4. Cable Length : XX

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.

Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.

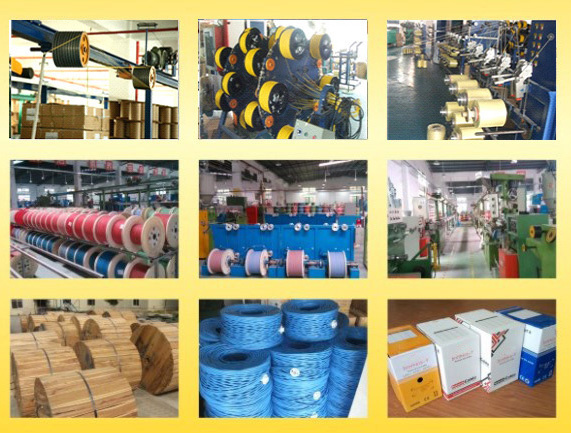

Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.
