Name: Single Mode Fiber Optic Cable 48 Core Armored Cable GYTA
Brand: all-electronics-online.com
SKU: 737875525
Availability: InStock
Rating: 4.7 (137 reviews)

Price:	US $ 0.5/Meter
Trade Terms:	FOB,EXW
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Sheath Color:	Black
Outer Sheath Material:	PE
Metallic Strengthen Member:	Steel Wire
Filler:	Filling Compound
Amored Or Not:	Armored
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001

Product Description

Single mode 9/125 Fiber Optic Cable 48 Core Armored Duct Cable GYTA

Product Description

GYTA fiber optic cable is used for duct or aerial applications.These aluminum tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance.

It is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene; High strength loose tube that is hydrolysis resistant; Cable filling materials ensure high reliability; APL makes the cable crush resistant and moisture proof. So, the GYTA has a very good watertight performance.

Item Details

Fiber Count : 24 Fibers
Strength Member Materials: Steel Wire
Fiber Type: Singlemode G.652B (Default)
Armor Layer: Aluminum tape
Outer Sheath: PE (Default)

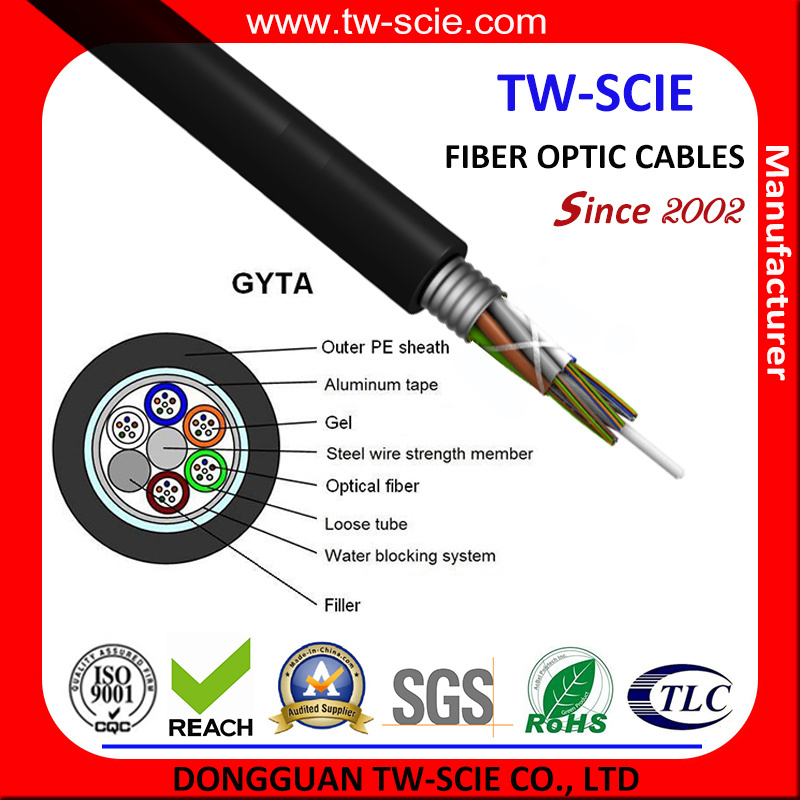

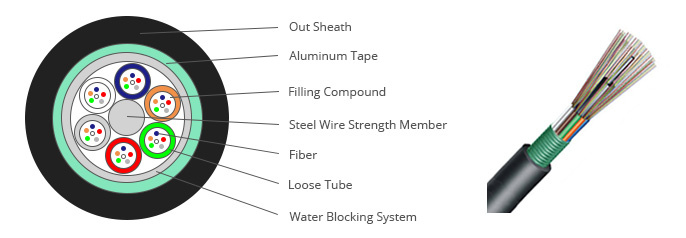

Cable Structure

1. Good mechanical and temperature performance.
2. Heigh strength loose tube that is hydrolysis resistand
3. Specially tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. PE sheath protects cable from ultraviolet radiation
6. Steel wire used as the central strength member
7.100% cable filling core filling
8. Loose tubes filling compound
9. APL moisture barrier

optical characteristics


		G.652	G.655	50/125um	62.5/125um
attenuation(+20ºC)	@850nm			≤3.0db/km	≤3.0db/km
	@1300nm			≤1.0db/km	≤1.0db/km
	@1310nm	≤0.36db/km	≤0.4db/km
	@1550nm	≤0.22db/km	≤0.23db/km
	@850nm			≤600mhz.km	≤200mhz.km
bandwidth(class A)	@1300nm			≥1200mhz.km	≥600mhz.km
numerical Aperture				0.200±0.015na	0.275±0.015na
cable cut-off waveleng th xcc				≤1620nm	≤1450nm
storage/operating temperature:-40ºC to +70ºC

Fibre Characters

Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min. Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Static	Dynamic	Short term	Long term	Short term	Long term
2-30	9.8	95	10 times O. D.	20 times O. D.	1500	600	1000	300
32-36	10.3	115
38-60	10.7	115
62-72	11.3	140
74-96	12.9	175
98-120	14.4	210
122-144	15.8	245
146-216	16.3	260
218-240	19.5	345
242-288	21.7	415

Package


Package 1	Package 2
Package 1: usually for indoor cable, light weight cables. Package 2: usually for outdoor cable, heavy weight cables Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

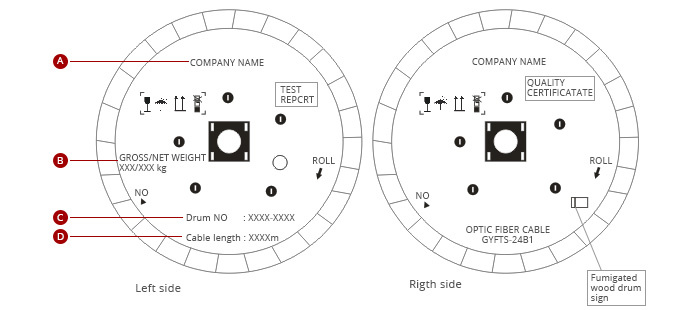

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross / Net weight
3. Drum No: XX
4. Cable Length : XX

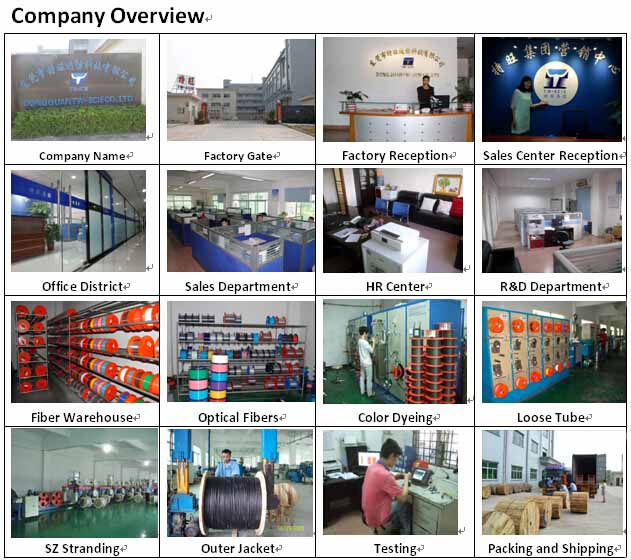

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
