| Prod Model: |
ADSS Span 100M Fiber Optic Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
ADSS Span 100m Fiber Optic Cable |
| Fiber Count: |
2-288 Core |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka, Fujikura...as Your Requiremen |
| Loose Tube Material& Filling Material: |
PBT&Jerry |
| Maximum Span: |
1500m |
| Color Of Loose Tube: |
Orange,Green , Brown,Red etc |
| Central Strength Member: |
Non-Metallic |
| Strength Material: |
High Flexible Amaid Yarn |
| Core Moisture Protection Methodology: |
Water Blocking Tape or Filling Compound |
| Installation Style: |
Self-Support Aerial |
| Application: |
Span 100m Fiber Optic Cable |
| Certification: |
Reach,Tlc,etc |
| Type: |
Single-Mode or Multimode Fiber |
| Connection Structure: |
Span 100m Fiber Optic Cable |
| Core: |
2-288 Core |
| Brand: |
Tw-Scie or OEM |
| Sheath Material: |
MDPE / HDPE / Lszh PE |
Product Description
single mode Self-supporting Aerial ADSS cheap price 48 fiber optic cable
Optical Characteristics: | | G.652 | G.655 | 50/125μm | 62.5/125μm |
| Attenuation (+20ºC) | @850nm | | | ≤3.0dB/km | ≤3.0dB/km |
| @1300nm | | | ≤1.0dB/km | ≤1.0dB/km |
| @1310nm | ≤0.36dB/km | ≤0.36dB/km | | |
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | | |
| Bandwidth (Class A) | @850 | | | ≥500MHZ·km | ≥500MHZ·km |
| @1300 | | | ≥1000MHZ·km | ≥600MHZ·km |
| Numerical Aperture | | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelengthλcc | | ≤1260nm | ≤1480nm | | |
Features:
Multi Loose Tube (MLT) Design
Non-Metallic Design
Flexible Design and Easy Handling
No Grounding Issues
High Tensile Strength
Improved Compressive Strength
Protection Against Water and Moisture
Designs for Different Span Lengths, Sag and Weather Conditions
UV Stabilized LDPE or LLDPE or MDPE or HDPE Jacket
Options:
- Higher Fiber Capacities
- Single-mode (Standard, Low Water Peak), Multi-mode (50/125, 62.5/125), Non-Zero
Dispersion Shifted
- Hybrid (Composite) Cable Designs
- Waterproof Dry Core Design
- Tensile Strength according to NESC Light, Medium, Heavy Conditions and Different Span
Lengths
- Improved Compressive Strength
- Single Jacket Design
- Rodent Resistant
- Tracking Resistant PE
Application:
This type of optical cable is aimed to be used for voice, data, broadband and CATV transmission in Long Distance, Backbone and Local Area Networks with Aerial installation method. Special design suitable for installation on Power Transmission Lines and nearby Power Utilities.
FAQ:
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10 years' history.
2.What is your fiber brand ?
Corning, YOFC, FiberHome, etc
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
5.What is your delivery time?
Usually within 2-3 working days
6. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways
not on the end.
7.What is your payment way?
T/T, L/C, D/A,D/P, Moneygram,Western Union and Paypal.
8.How to Reduce the Fiber Splice Loss?
Use good fiber core.
Good splicer with skilled splicing.
The accessories such as connectors & adapters keep in low attenuation.
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

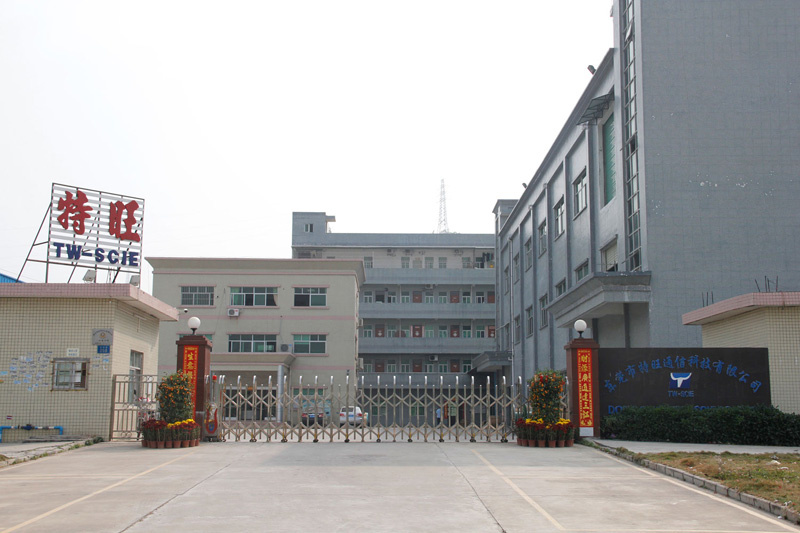

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
