Single Output 25W 5V Swith Mode Power Supply (S-25-5) 12V 24V 48V

Single Output 25W 5V Swith Mode Power Supply (S-25-5) 12V 24V 48V
Price: US $ 4.5-5.5/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: S-25
Output Type: Single
Warranty: 1 Year
Output Power: 1 - 50W
Input Voltage: 110-220V
Connection Mode: Series Switching Power Supply
Starting Mode: Separate-excited Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: CCC
Brand: Ann

Product Description

Product Description

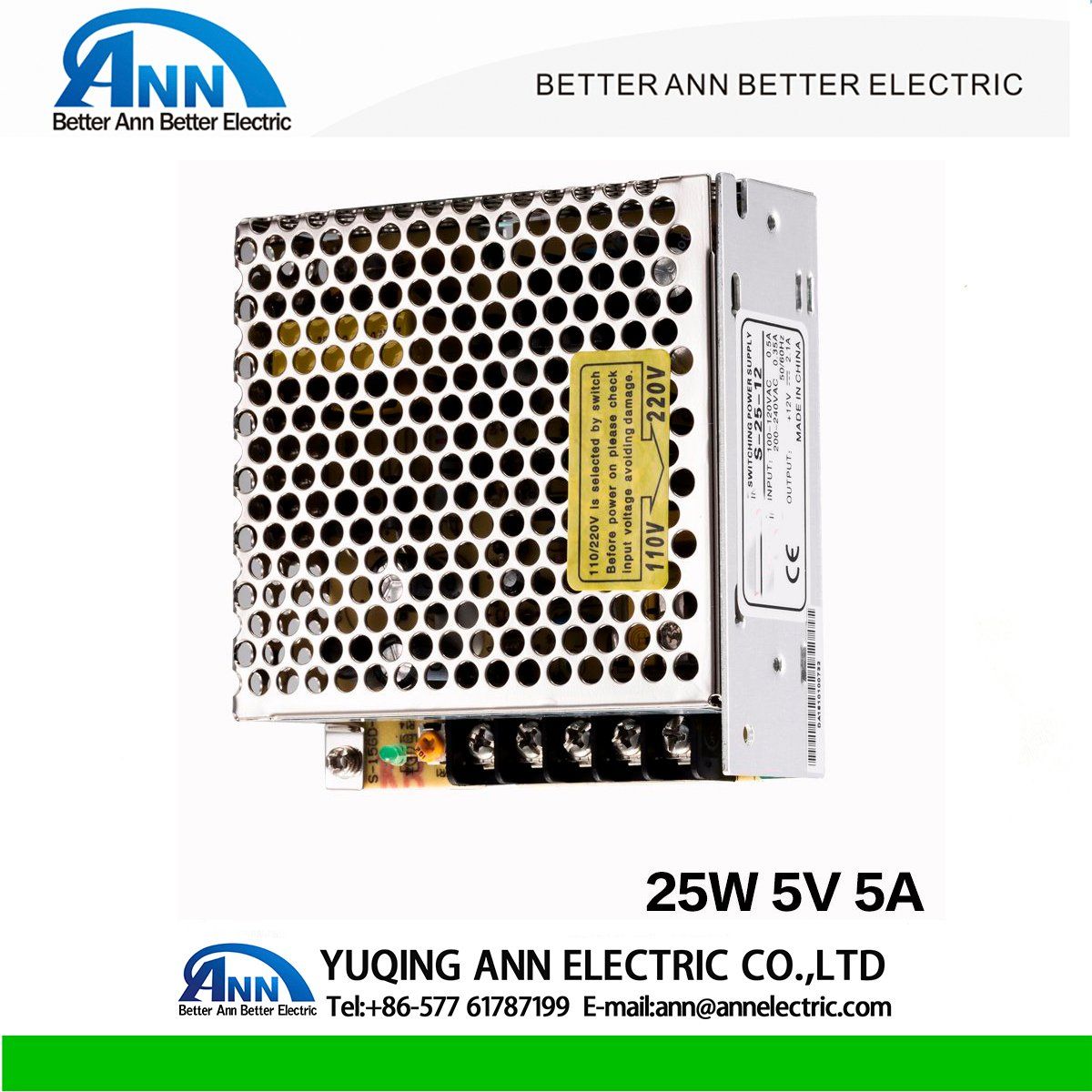

25W 5V DC Switching Power Supply

Features:

1. DC Output 5v 12v 24v

2. AC input range selectable by switch

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 12 months warranty





Specifications:



ModelS-25-5S-25-12S-25-15S-25-24
DC output voltage5V12V15V14V
Rated output current5A2.1A1.67A1.1A
Output current rage0-5A0-2.1A0-1.67A0-1.1A
Wave and noise50mVp-p50mVp-p75mVp-p100mVp-p
Inlet stability±0.5%±0.5%±0.5%±0.5%
Load stablity±1%±0.5%±0.5%±0.5%
Efficiency70%76%78%78%
Adjustable range for DC voltage±10%±10%±10%±10%
AC input voltage rangeAC90~240V 180~264VDC by switch:  47~63Hz;
Input current0.5A/115V0.25A/230V
AC INnrush currentCold-start current 15A/115V 30A/230V
Overload proctection105%~150% Tpye:Foldback current limiting Reset: auto recovery
Over-voltage protection
Setup rise hold up time200s,100ms,30ms
Withstand voltageInput and output internal 1.5KVAC,Input and enclosure 1.5KVAC,Output and enclosure 0.5KVAC
Isolation resistanceInput and output internal Input and enclosure,Output and enclosure 500VDC/100MΩ
Working temperature-10°C~+50°C
Overall dimension98*97*35mm
Safety standardsMeet ULGB4943 UL60950 EN60950 requirement
EMC standardsMeet EN55022 GB9254 class A requirement
Weight

0.3Kgs
