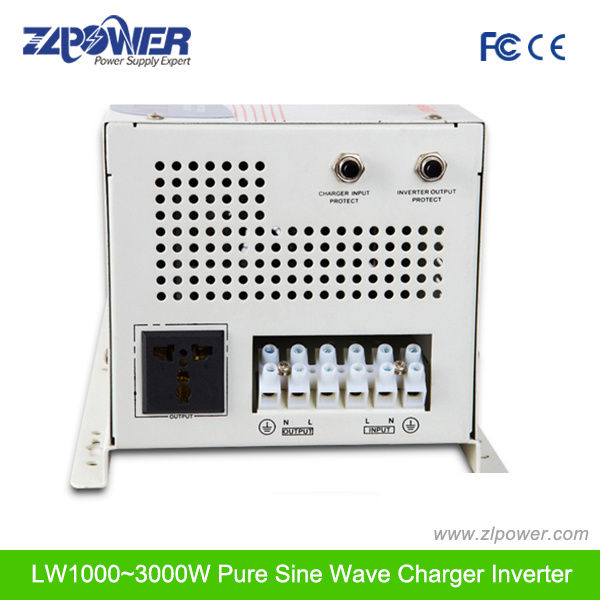

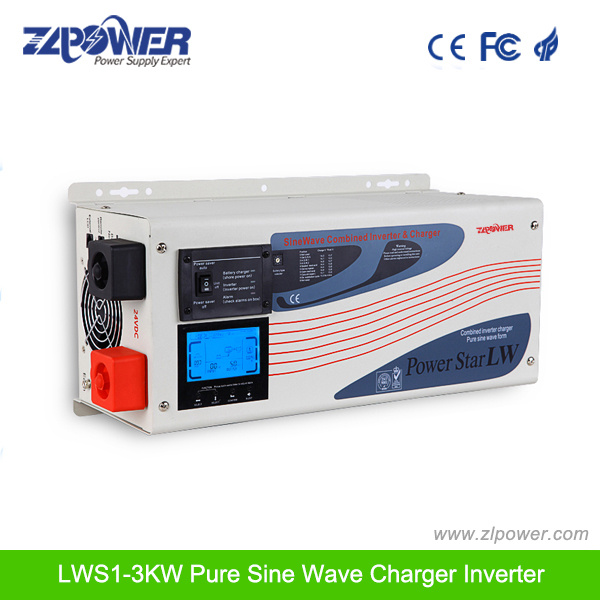

Single Output 3000W 24VDC 240VAC Pure Sine Wave Inverter/Converter
| Price: |
US $ 259/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
LW500-6000W |
| Capacity: |
3000W 24V 240V Pure Sine Wave Inverter |
| Inverter Charger: |
35AMP/70AMP AC Charger |
| Peak Power: |
3 Times of Rating Power |
| Optional Remote LCD Display: |
Yes |
| Nominal Voltage: |
110-130/220-240VAC |
| DC Input Voltage: |
12/24/48V |
| Display: |
LCD/LED Display |
| Adjustable Charge Current: |
Yes |
| Selectable DC Or AC Priority Function: |
Yes |
| Warranty: |
2 Years |
Product Description
DC/AC Inverters Type and Single Output Type 3000W 24v 240v pure sine wave inverter
PURE SINE WAVE INVERTER
1. Max 70A charge current
2. Good for power tool and home appliance use like AC, refrigerator
3. CE
LW SERIES PURE SINE WAVE INVERTER WITH CHARGER
This equipment is suitable to use in family, and under special environments, the equipment can connect to perceptual load such as air conditioner, laser printer. Stability of this equipment is good, the charging current is big and the charge rate is also very high. The output wave for this equipment sine wave.
Features
1. 500-6000W Wide range off grid pure sine wave type
2. 12v 24v 48v dc input
3. 3 times peak power
4. Adjustable charge current
5. Selectable solar or AC priority function
6. Low frequency based on transformer
7. optional remote LCD display and switch panel
8. 2 years warranty
Specification | Solar inverter 6000w Product Series | LW1000 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 |
| General Specification | Input Wave form | Sine wave (Utility or Generator) |
| Nominal voltage | 120VAC | 230VAC |
| Low voltage trip | 90v + 4% | 184v/154v + 4% |
| Low voltage reconnect | 100v + 4% | 194v/164v + 4% |
| High voltage trip | 140v + 4% | 253v + 4% |
| High voltage reconnect | 135v + 4% | 243v + 4% |
| Max input AC voltage | 150VAC | 270VAC |
| Nominal input frequency | 50Hz or 60Hz (Auto detect) |
| Low freq trip | 47Hz for 50Hz, 57Hz for 60Hz |
| High freq trip | 55Hz for 50Hz, 65Hz for 60Hz |
| Output wave form | (Bypass mode) same as input |
| Overload protection | Circuit breaker |
| Short circuit protection | Circuit breaker |
| Transfer switch rating | 30amp or 40amp |
| Efficiency on line transfer time | 95%+ |
| Line transfer time | 10ms Typical |
| Bypass without battery connected | yes |
| Max bypass current | 30amp or 40amp |
| Bypass overload current | 35amp or 45amp: Alarm |
| Inverter Specification Output | Output wave form | Pure sine wave |
| Output continuous power watts | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Output continuous power VA | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Power factor | 0.9-1.0 |
| Nominal output voltage rms | 120/230VAC |
| Output voltage regulation | 10% rms |
| Output frequency | 50Hz + 0.3Hz or 60Hz + 0.3Hz |
| Nominal efficiency | >88% |
| Surge ratings | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Short circuit protection | Yes, fault after 10 seconds |
| Inverter Specification Input | Nominal input voltage | 12V | 24V | 48V |
| Minimum start voltage | 10V | 20V | 40V |
| Low battery alarm | 10.5V | 21V | 42V |
| Low battery trip | 10V | 20V | 40V |
| High voltage alram | 16V | 32V | 64V |
| Power saver | Below 25watts when enabled |
| Power saver | Same switched on/off on remote |
| Charge Mode Specification | Input voltage range | 95-127VAC | 194-243VAC/ 164-243VAC(W) |
| Output voltage range | Dependent on battery type |
| Charge current | 35A/70A |
| Battery initial voltage for start up | 0-15.7v for 12v (*2 for 24v; *4 for 48v) |
| Over charge protection shutdown | 15.7v for 12v (*2 for 24v; *4 for 48v) |
| Others | Remote control/RS232/USB | Yes, Optional |
| Size: in mm | 1000/2000/3000 Model: 442*218*179 |
| | 4000/5000/6000 Model: 598*218*179 |
| Net weight | LW1000 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 |
| | 18kgs | 20kgs | 22kgs | 35gs | 38kgs | 40kgs |
