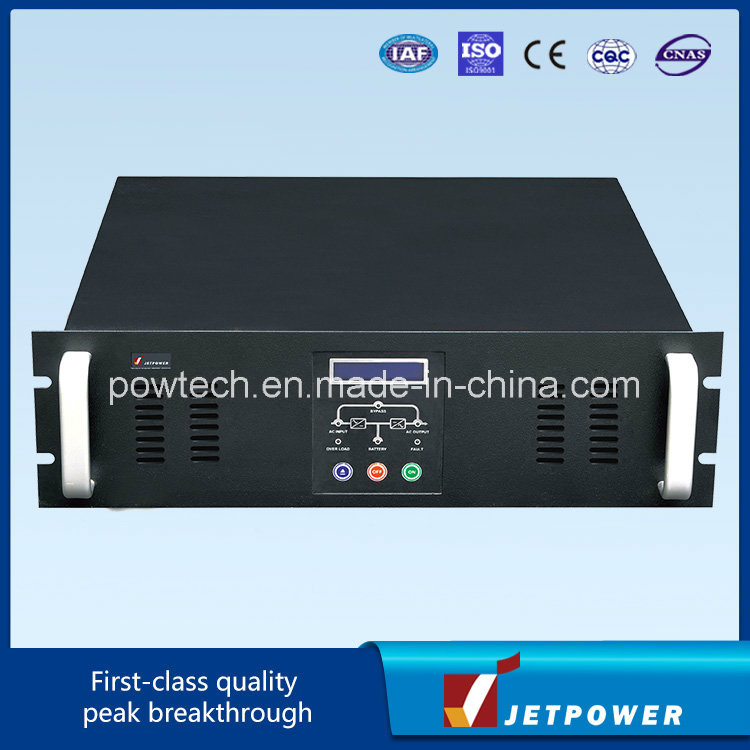

Single Phase 220VDC/AC Electric Power Inverter (2kVA)
| Price: |
US $ 450-540/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
ND220-1020 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
19 Inches |
| High: |
3u |
| Install: |
Rack or Tower Mount |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Application: |
Railway and Electric Power Industry |
| Brand: |
Jetpower |
Product Description
220VDC/AC Electric Power Inverter
Main Features:
(1) SPWM technology, pure sine wave output
(2) With output isolation transformer
(3) 100% Non linear load ability
(4) DC input reverse polarity protection,
(5) CPU control, advanced anti-interference technology, good electromagnetism compatibility
(6)User friendly LCD+LED display, easy to operate.
(7)Comprehensive protection: Over voltage, low voltage, short circuit, over load protection and etc
(8) Optional three working modes: AC mains first, DC inverter first, pure DC inverter
(9) Install: 19 inch rack or standalone
| Model | ND 220 | ND220 | ND220 | ND220 | ND220 | ND220 | ND220 | ND220 |
| -1010 | -1020 | -1030 | -1050 | -1100 | -1150 | -1200 | -1300 |
| DC input | Rated DC input voltage (V DC ) | 220 |
| Rated DC input current (A) | 4.5 | 9 | 13.5 | 22 | 45 | 74.2 | 99 | 149 |
| DC input voltage range (V DC ) | 180~260Vdc |
| Bypass | Utility AC input voltage (V AC ) | 220Vac±20%, 50Hz/60hz±10% |
| Utility | Rated AC input current (A) | 4.5 | 9 | 13.5 | 22 | 45 | 67.5 | 90 | 135 |
| input | Bypass transfer time (ms) | ≤4 |
| AC output | Rated capacity (KVA) | 1 | 2 | 3 | 5 | 10 | 15 | 20 | 30 |
| Rated output power (KW) | 0.8 | 1.6 | 2.4 | 4 | 8 | 12 | 16 | 24 |
| Rated output voltage and frequency | 220V AC , 50(60)H Z |
| Rated output current (A) | 4.5 | 9 | 13.5 | 22 | 45 | 67.5 | 90 | 135 |
| Output voltage regulation (V) | 220Vac±2% |
| Output frequency regulation(Hz) | (50±0.25)hz |
| THD | ≤ 3% |
| Dynamic response (load 0←→100%) | 5% |
| Power factor | 0.8 |
| Overload | 150%,60s |
| Crest factor | 3:01 |
| Efficiency at rated load | 90% |
| Environment | Insulation strength (between input & output) | 1500V AC , 1min |
| Noise (1m) | ≤50dB |
| Temperature | -10 ºC ~+50 ºC |
| Humidity | 0~90%, no condensation |
| Altitude (m) | ≤2000 |
| Sizes | Rack type (W* D * H, mm) | 440*450*133 | 440*450*177 | 440*500*221.5 | N/A | N/A | N/A | N/A |
| Tower type(W*D*H,mm) | 200×480×490 | 210×612×540 | 240×540×680 | 343×630×700 |
| Weight ( kg)(Rack type) | 33 | 41 | 50 | 48 | N/A | N/A | N/A | N/A |
| Weight ( kg)(Tower type) | 31 | 41 | 51 | 58 | 112 | 160 | 180 | 258 |
| Protection | DC input reversely protection, DC input under voltage,over voltage, overload, short circuit, over temperature |
