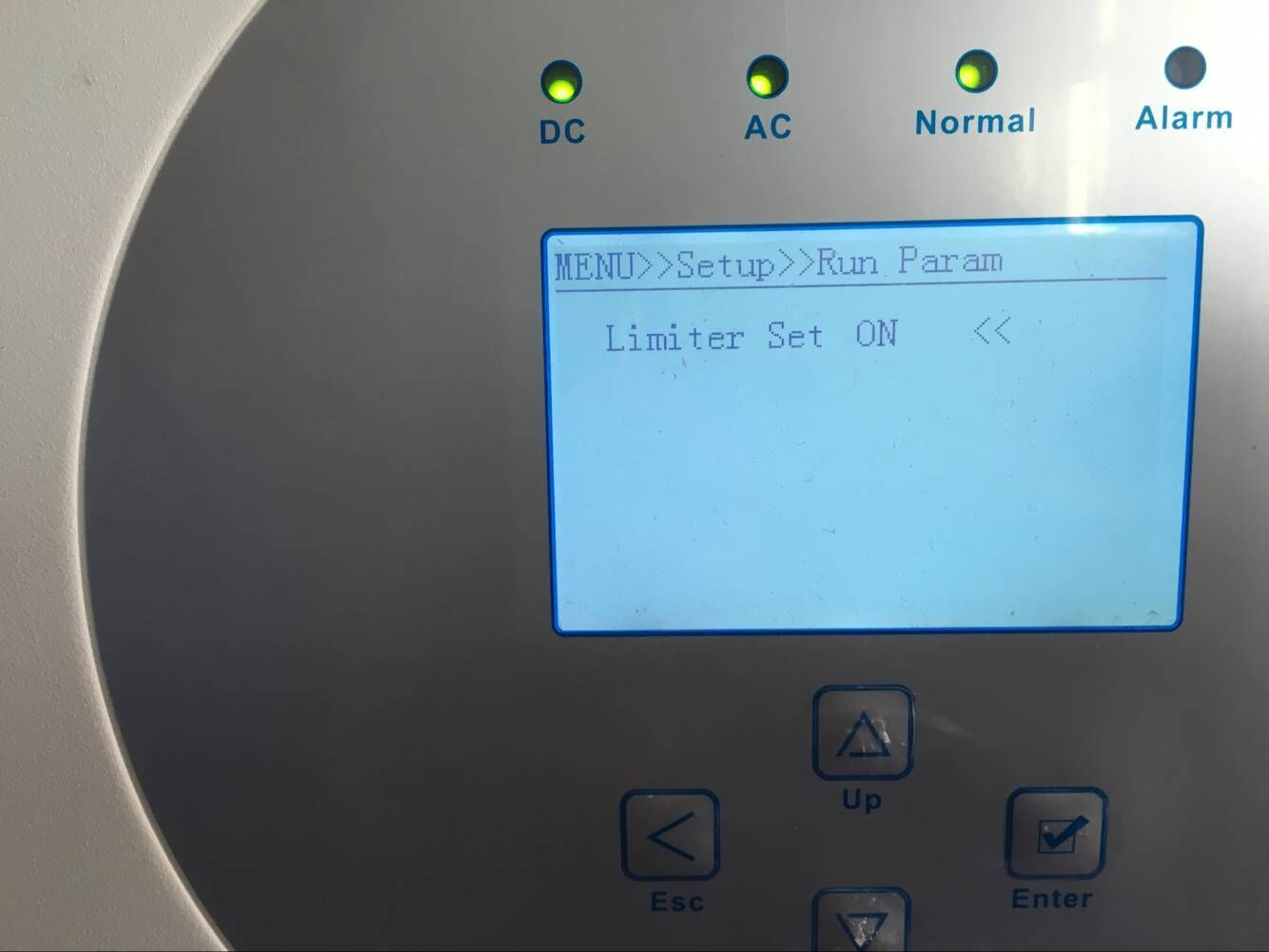

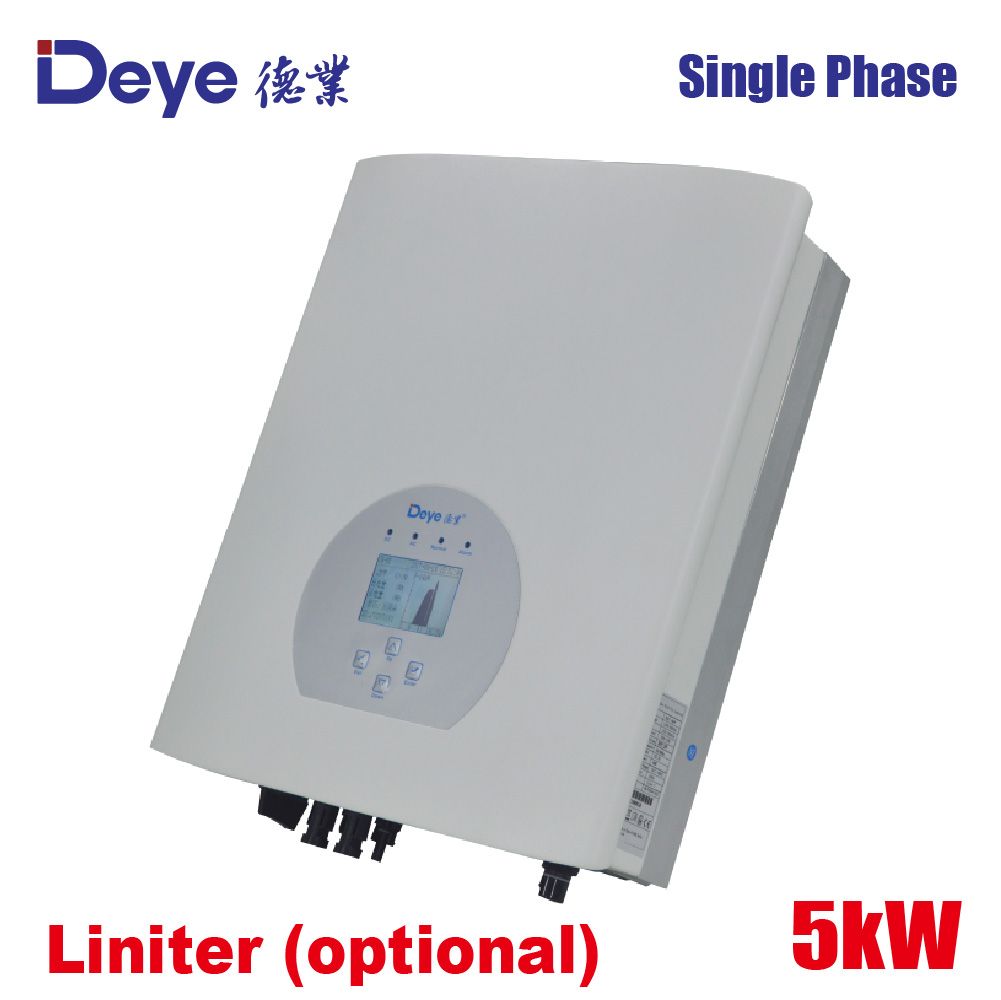

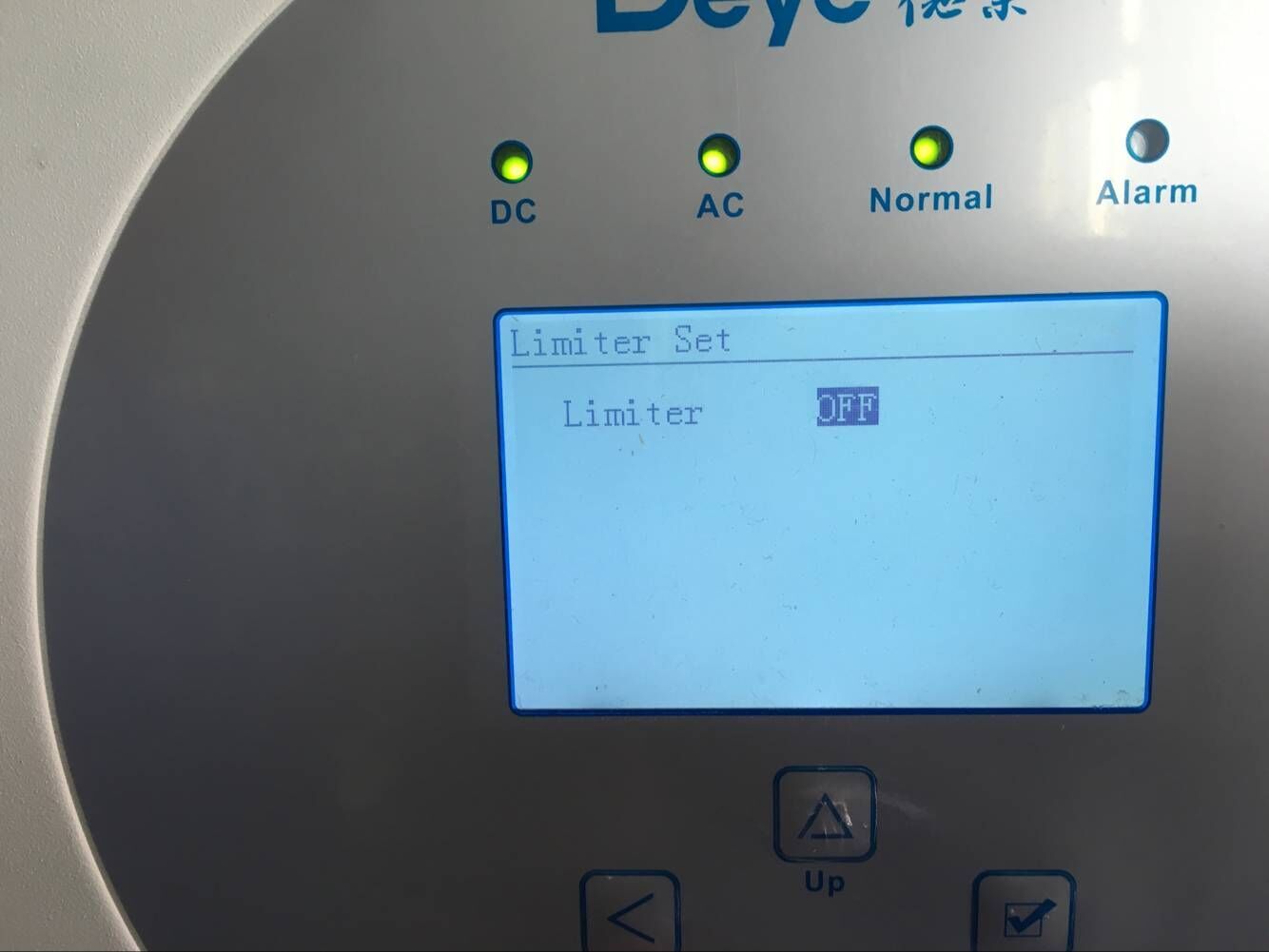

Single Phase 5kw String Grid Tie Inverter with Limiter

Name: Single Phase 5kw String Grid Tie Inverter with Limiter
Brand: all-electronics-online.com
SKU: 728503772
Availability: InStock
Rating: 4.7 (130 reviews)

Price:	US $ 300-900/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SUN-5K-G
Product Name:	String Inverter
Power:	3.5kw/5kw
Input Voltage Range:	323-418(Optional)

Product Description

Model:	SUN-5K-G
Energy source	Grid-connected PV
Input Side
Max. DC Power(kw)	5.5
Max. DC Input Voltage(V)	600
Start-up DC Input Voltage(V)	120
MPPT Oprating Range(V)	110-550
Max. DC Input Current(A)	10+10
MPPT Number/Max. String Number	2/2
Output Side
Rated Output Power(kw)	5
Max. Transient Power(kw)	5.3
Max. Active Power(kw)	5.3
Rated AC Grid Voltage(V)	220
AC Grid Voltage Range(V)	180-270(Optional)
Rated Grid Frequency(HZ)	50/60(Optional)
Operating phase	Single phase
Rated AC Grid Output Current(A)	22.7
Max. AC Output Current(A)	23
Output Power Factor	>0.99
Grid Current THD	<3%
DC Injection Current(mA)	<0.5%
Grid Frequency Range	47-52 or 57-62(Optional)
Efficiency
Max. Efficiency	98.3%
Euro Efficiency	97.5%
MPPT Efficiency	>99%
Protection
DC Reverse-Polarity Protection	Yes
AC Short Circuit Protection	Yes
AC Output Overcurrent Protection	Yes
Output Overvoltage Protection-Varistor	Yes
Insulation Resistance Protection	Yes
Ground Fault Monitoring	Yes
Surge Protection	Yes
Islanding Protection	Yes
Temperature Protection	Yes
Integrated DC Switch	Optional
General Data
Size(mm)	455W550H240D
Weight(kg)	30
Topology	Transformerless
Internal Consumption	<6W(Night)
Running Temperature	-25-60ºC
Ingress Protection	IP65
Noise Emission(Typical)	<30dB
Cooling Concept	Natural convection
Max. Operating Altitude Without Derating	2000m
Designed Lifetime	>20 years
Grid Connection Standard	EN50438, AS4777.2:2015, VDE0126-1-1, IEC61727, NB/T32004(CQC), IEC62109-1-2
Operating Surroundings Humidity	0-100%
Stafty EMC/Standard	IEC62109-1/-2, AS3100, EN1000-6-1, EN61000-6-3, NB/T32004
Features
DC Connection	MC-4 mateable
AC Connection	IP67 rated plug
Display	LCD-256-128/3.5TFT
Interface	RS485/RS232

Any question and more details, contact me freely.

Blake
5kw Grid Tie Inverter, 5kw String Inverter, Single phase 5kw output string power inverter

Ningbo Deye Inverter Technology Co., Ltd. Which predecessor is Sunshine Technology (China)Co., Ltd. is a professional High-Tech company developing, producing and marketing Solar related products including Grid tie inverter, Off grid inverter, MPPT solar charge controller etc. Our company has got the national software enterprise certification. We own provincial engineering technology center. We have one of the most experienced reserch team who are experienced in development of solar related products. We have a remarkable power of technology, which has reached the national and international level. In recent years, in the field of solar inverter, we invested an huge amount of energy in developing and popularizing, we have established solid symbiosis with a couple of industry-leading enterprises including Texas Instruments, the biggest semiconductor manufacturer in the world. Deye group now own a 120 thousand square meters of development and production base and high presision automatic equipment. With a determined will to be better, a sustained innovation, and the pursuing of outstanding, we sincerely look forward to your partnership to make a better future.
