| Prod Model: |
Queen Star Series 6-20Kva |
| Frequncy: |
50/60Hz Optional |
| Battery Nominal Voltage: |
192/240VDC |
| Transfer Time: |
0ms |
| Intelligent Slot: |
RS232, Snmp Card, Eco,Epo |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description

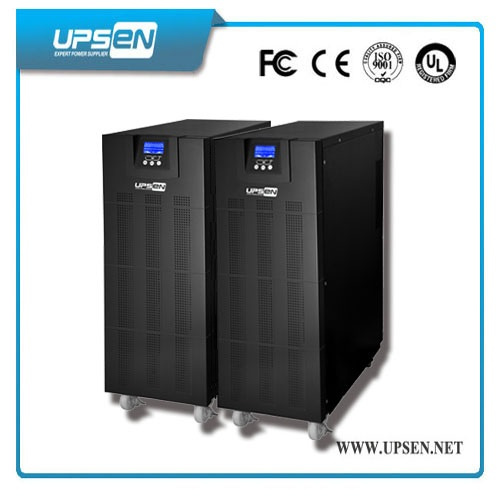

Single phase 6000VA 4800W Smart Online UPS for Medical Equipment
Model: High Frequency Online UPS Queen Star Series 6-20 Kva (1ph in/1ph out)
Key Features:
1:Optional Extended Battery Banks & Chargers
2:Superior Brownout, Surge & Transient Protection
3:Smart RS232 communication with monitoring software
4:Low initial investment and flexible for future expansion
5:Wide input voltage range with high frequency technology
6:LCD Display with Advanced Monitoring for Easy UPS Management
7:Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
8:Selection of Single or Dual Utility Input to enhance the utility power protection
9:Multiple Harmonic Wave Suppression Technology to ensure green power concepts
10:Direct DC cold start function offers emergency on UPS by battery without utility power
11:Flexible Battery Configuration. It can be set on the front panel with 28/30/32 Units of Batteries
12:Intelligent battery management directly checking and setting charge and setting charge and discharge of battery on LCD extends battery life
Applications:
Emergency lighting equipment,Fire alarm and security systems,Telecommunication equipment,Electric equipment and telemeter equipment,Office Automation,Telecom System,Network Rooms,Education System,Medical Equipment,Financial System Securities System
Technical Specification
| Queen Star Series Q6K-20Kva | | | |
| Model | Q6K | Q6KL | Q10K | Q10KL | 31Q10KL | 31Q15KL | 31Q20KL |
| Capacity | 6KVA/4800W | 10KVA/8000W | 15KVA/12KW | 20KVA/16KW |
| Input | Nominal Voltage | 220/230/240Vac | 380/400/415Vac |
| Voltage Range | 176~276Vac (1P2W+G) | 304~478Vac (3P4W+G) |
| Current | 31A (max) | 50A (max) | 50A (max) | 75A (max) | 100A (max) |
| Frequency | 46~54Hz/56~64Hz |
| Power Factor | ≥0.99 |
| Output | Voltage | 220/230/240± 2%Vac (1P2W+G) |
| Frequency | 50/60Hz(adjustable) 50/60Hz± 5% (Line mode)
50/60Hz ± 0.05Hz ( Battery mode) |
|
|
| Current | 27.3A | 45A | 68A | 91A |
| Power Factor | 0.8lag |
| Waveform | Pure Sine Wave |
| Waveform Distortion | Line load <2% | Line load <3% |
| Back-up Time | Full Load | ≥7′ | Depends on external batteries bank's Capacity | ≥5′ | Depends on external batteries bank's Capacity |
| Half Load | ≥20′ | ≥13′ |
| Battery Nominal Voltage | 192/240Vdc |
| Transfer Time | 0ms |
| Overload Capacity | >105% 1min, >120% 30s transfer to bypass, shut down in 1min |
| Communication | SNMP,RS-232,USB+Intelligent Slot |
| Operating Environment | Temperature | 0C~40ºC |
| Humidity | 15%~90% |
| Dimension | Width (mm) | 260 | 260 | 260 | 260 | 260 |
| Depth (mm) | 560 | 533 | 560 | 533 | 560 |
| Height (mm) | 717 | 501 | 717 | 501 | 717 |
| Net Weight(Kg) | 68 | 18 | 70 | 20 | 28 | 30 | 30 |
| *Specification are subject to change without prior notice |
