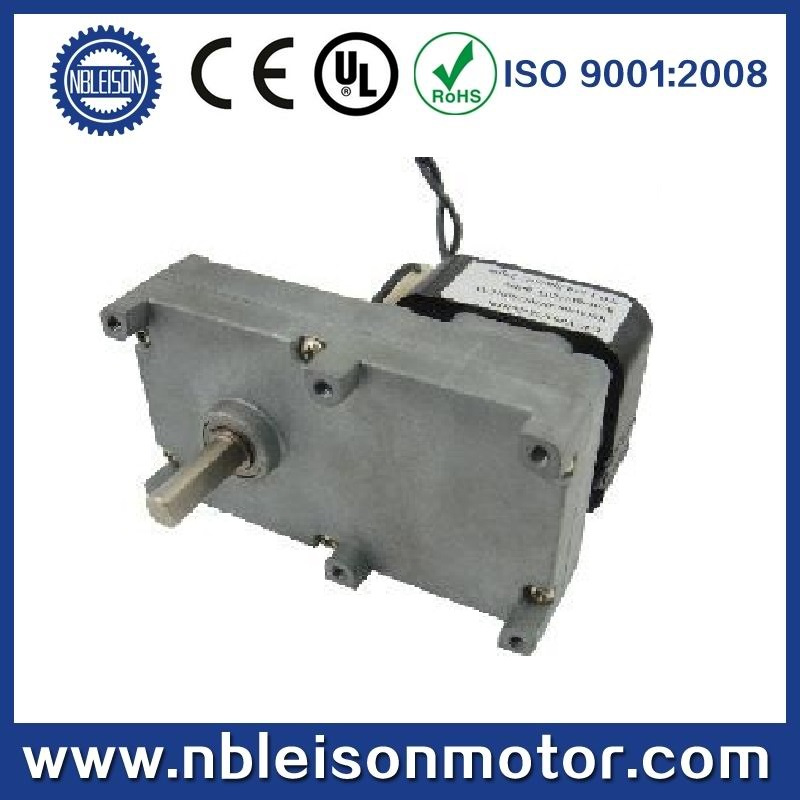

Single Phase AC Shade Pole Gear Motor

Name: Single Phase AC Shade Pole Gear Motor
Brand: all-electronics-online.com
SKU: 708862575
Availability: InStock
Rating: 4.4 (94 reviews)

Price:	US $ 17.6-40/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GF-YJ61
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Driving
Number Of Stator:	Single-Phase

Product Description

Shade Pole Motor:

1. OUTPUT POWER: 1-10W
2. WEIGHT: 1450~1700g(APPROX)
3. Typical applications:
Pan/TiltCamera, auto shutter, welding machines, water
Meter IC card, grill, oven, cleaning machine, garbage
Disposers, household appliances, slot machines, money
Detector, automatic actuator.

4. The technical data are only for reference, We can make the motor's according to customer's requirment.

GEARED MOTOR TORQUE/SPEED

Reduction ratio	1/134	1/253	1/394	1/494	1/587	1/720	1/1269	1/1601	1/1927	1/2709	1/3084
Rated speed(rpm)at 60HZ	20.1	10.7	6.9	5.5	4.6	3.8	2.1	1.7	1.4	1.0	0.9
Number of gear trains	3	4	4	4	4	4	5	5	5	5	5
GF-YJ61-10 L=10.5 Kgf@cm Rated torque	5.9	10.0	15.6	19.6	23.2	28.5	44.9	56.7	68.2	95.9	109
GF-YJ61-12 L=12 Kgf@cm Rated torque	7.8	13.4	20.8	26.1	31.0	38.0	59.9	75.6	90.9	127	145
GF-YJ61-14 L=14.5 Kgf@cm Rated torque	9.8	16.7	26.0	32.6	38.7	47.5	74.9	94.5	113	159	182
GF-YJ61-16 L=16.5 Kgf@cm Rated torque	13.7	23.4	36.4	45.6	54.2	66.5	104	132	159	200	200
GF-YJ61-20 L=16.5 Kgf@cm Rated torque	17.6	30.1	46.8	58.7	69.7	85.5	134	170	200	200	200
GF-YJ61-25 L=25.5 Kgf@cm Rated torque	21.5	36.7	57.2	71.7	85.2	104	164	200	200	200	200
GF-YJ61-30 L=30.5 Kgf@cm Rated torque	27.4	46.8	72.8	91.3	108	133	200	200	200	200	200
GF-YJ61-35 L=35.5 Kgf@cm Rated torque	34.2	58.4	91.0	114	135	166	200	200	200	200	200
GF-YJ61-40 L=40 Kgf@cm Rated torque	39.1	66.8	104	130	155	190	200	200	200	200	200
Note	Voltage can make as customers' request
Packing Details	CTN size:31X30XH28CM 12pcs/CTN N.W. 20Kgs

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
