CE RoHS AC Shade Pole Motor

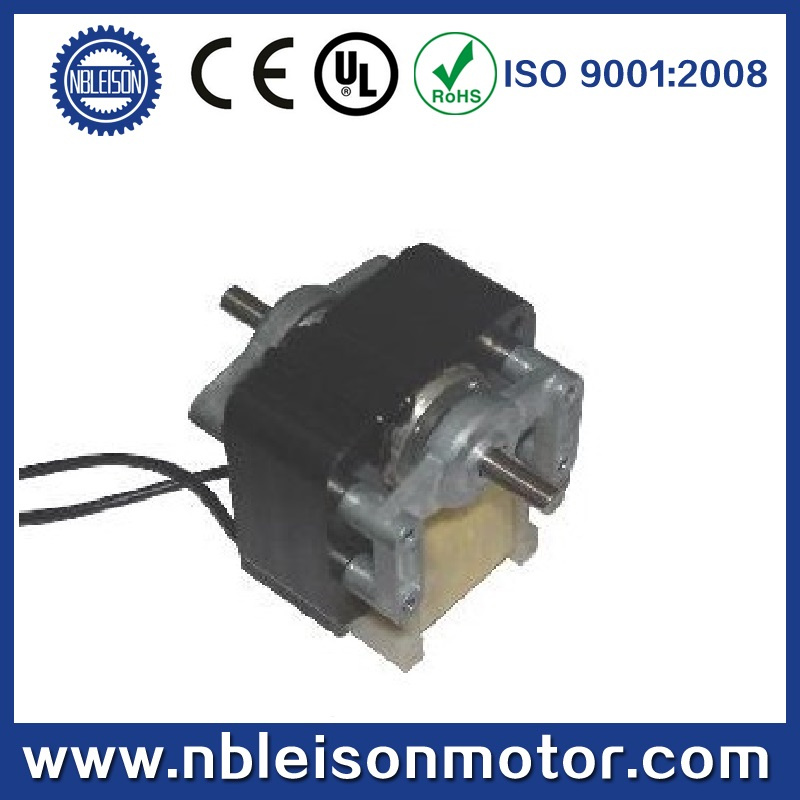

Name: CE RoHS AC Shade Pole Motor
Brand: all-electronics-online.com
SKU: 708868585
Availability: InStock
Rating: 4.7 (82 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJ61
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Driving
Number Of Stator:	Single-Phase

Product Description

Shade Pole Motor:

1, Single phase shade pole motor is safe and reliable, low noise Characteristics hard, good starting, long life, etc.
2, Motors have UL TUV certification.
3, Motor direction can be produce to Customers'request.
4, Apply for different type of gearboxes: VF(69.9X76.2), TT(60X95), GF(69.9X119.1), MF(70X70) QF(73.2X95.8), ZF(63.5X90.2), RF(63.5X90.2), KF(63.5X68.3), VFO(69.9X76.2)gearedbox.
5. The technical data are only for reference, We can make the motor's according to customer's requirment.

Motor Model	Size(A)	Rated	At Maximum efficiency
	mm	Volt.	Freq.	Current	Speed	Torque	Input
		V	Hz	A	r/min	g·cm	Power(W)
YJ61-10/1	10.5	220~240	50	0.16	2200	70	17.5
YJ61-10/2	10.5	100~120	60	0.28	2700	60	16
YJ61-12/1	12	220~240	50	0.16	2400	80	17
YJ61-12/2	12	100~120	60	0.2	2600	80	18
YJ61-14/1	14.5	220~240	50	0.18	2400	100	19
YJ61-14/2	14.5	100~120	60	0.2	2600	100	20
YJ61-16/1	16.5	220~240	50	0.25	2450	140	26
YJ61-16/2	16.5	100~120	60	0.28	2600	140	27
YJ61-20/1	20.5	220~240	50	0.3	2450	180	30
YJ61-20/2	20.5	100~120	60	0.38	2700	180	32
YJ61-25/1	25.5	220~240	50	0.33	2400	220	35
YJ61-25/2	25.5	100~120	60	0.41	2600	220	42
YJ61-30/1	30.5	220~240	50	0.45	2400	280	45
YJ61-30/2	30.5	100~120	60	0.52	2600	280	46
YJ61-35/1	35.5	220~240	50	0.65	2500	350	53
YJ61-35/2	35.5	100~120	60	0.9	2800	350	58
YJ61-40/1	40	220~240	50	0.83	2500	400	62
YJ61-40/2	40	100~120	60	1.2	2800	400	75

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
