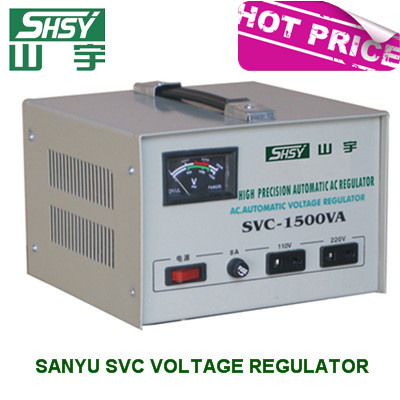

Single Phase Automatic Voltage Regulator/Stabilizer (SVC 0.5kVA to 50kVA)

Prod Model:	SVC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	160-250
Output Voltage:	220V/110V+-2.5%
Adjustable Time:	<1sec Against 10% Input Voltage Deviation
Efficiency:	>90%
Ambient Temperature:	-10- 40
Wave Form Distortion:	Non Additional Waveform Distortion
Withstand Voltage:	>1500V/Min
Insulation Resistance:	>2m Omh
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	Low Frequency
Brand:	Sanyu

Product Description

1. Voltage regulator, automatic voltage regulator, AC voltage-SVC10kVA, SVC15kVA, SVC20kVA, SVC30kVA, SVC40kVA

2. CE, ISO9002, SGS, CCC certificates, etc.

3. Features:
This series of voltage regulators with self-voltage regulation or compensation Surge, has features of small size, light weight, continuously adjustable voltage, output voltage and high precision, wide range of voltage regulation, low loss, no waveform distortion, which is widely used for civilian appliance regulators, industrial equipments, medical devices.

It's the most cost-effective regulated power suply on the current market.

This series of regulated power supply has set up the over-voltage protection, the length of delay time and selective output, overcurrent protection functions.

It's leading among the similiar products.
Input voltage 160-250 Ultra-low voltage 130-250V
Output voltage 220± 3% with 110V output
Phase Single-phase
Frequency 50-60Hz
Adjustment time Less than 0.5s Input voltage change 10%
Rated output current 0.5kVA 1kVA 2kVA 3kVA 5kVA 10kVA 15kVA 20kVA
2A 4A 6A 8A 12A 20A 28A 40A
Ambient temperature -5 degree to 40 degree
Temperature rise Less than 60 degree
Relative humidity Less than 90%
Waveform distortion No additional distortion
Efficiency More than 90%
Pressure Meet part standards

Model specifications Machine size mm Weight kg
SVC Single-phase 500VA 190× 190× 140 5
1000VA 225× 225× 160 8
1500VA 225× 225× 160 9
2000VA 245× 260× 205 12
3000VA 225× 285× 260 15
5000VA 245× 460× 200 25
7000VA 280× 320× 580 40
10000VA 280× 320× 580 40
15000VA 335× 400× 640 45
20000VA 435× 400× 880 45
30000VA 510× 330× 910 90
