| Prod Model: |
Ideal Star Series 300W-1000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Saver: |
Yes |
| Soft Start: |
Yes |
| Inverter Type: |
off Grid DC to AC Inverter |
| Warranty: |
12 Months |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Application: |
Home Theater |
| Brand: |
Upsen |
Product Description

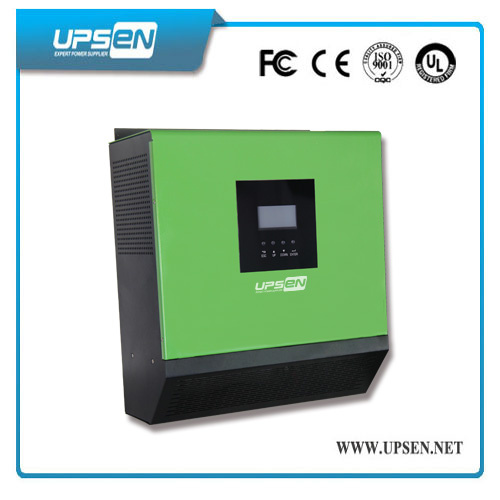

single phase inverter charger mini dc ac power inverter

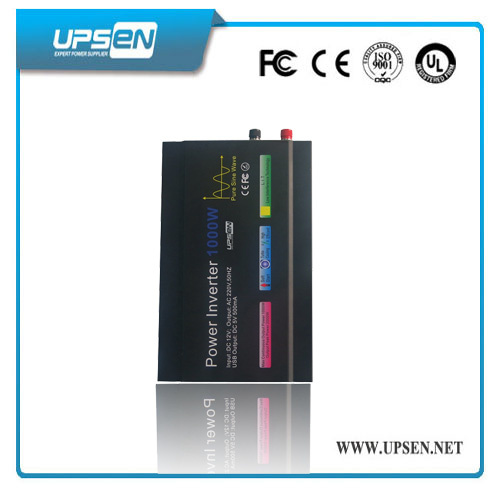

Pure Sine Wave Inverter Ideal Star Series 300W-1000W (1ph in/1ph out)
Key Features:
1:Free installation, easy to operate
2:Pure sine wave output, available for sensitive load
3:Save the power and improves the working efficiency
4:Excellent performance and high conversion efficiency
5:Low noise design, strong anti-interference, low radiation
6:AC Grid priority& battery priority working mode are selectable
7:Delay before transfer, extra protections for loads under generator mode
8:Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
9:Automatically detects low voltage and shuts down to protect your battery
10:High frequency design, higher transfer efficiency, low standby power loss, long standby time
11:CPU controled intelligent cooling fan, greatly extend life time of the fan, more efficiency and save energy
Application
Home,office,Monitoring,Communications Equipment,Automation systems,Data processing systems,TV ,Computer room,Data center,Emergency Lighting Systems,Vending Machines,Geophysical Equipment etc.
Technical Specification
Model | IS300 | IS500 | IS600 | IS800 | IS1000 |
| Rated power | 300W | 500W | 600W | 800W | 1000W |
| Peak power | 600W | 1000W | 1200W | 1600W | 2000W |
| Start method | Soft start |
| DC input | Rated
input voltage | 12V/24V/48V(optional) |
| AC Output | Voltage | 100V/110V/220V/230V/240V(optional) |
| Frequency | 50HZ/60HZ(optional) |
| Waveform | Pure Sine Wave |
| Maximum DC | 110% |
loads output
power |
Total
Harmonic
Distortion | THD≤2% |
Rated output
efficiency | >85% |
| Protection | High input
voltage
shutdown | 15.0V, automatically shutdown, alarm twice |
Low input
voltage
shutdown | 10.0V, automatically shutdown, alarm twice |
Low input
voltage
alarm | 10.5V, no power off, alarm once |
Over
temperature
protection | When the temperature of internal heat sink is above 80ºC,
it will shutdown automatically and alarm three times |
Short
circuit
protection | Shutdown, alarm five times, restart a utomatically |
| Overload | Shutdown, alarm four times, restart automatically |
| protection |
| Reverse Input | Quick-break fuse |
| Environment | Temperature | -10 - 40ºC |
| Humidity | 0%-95% |
| Noise of the fan | <55dB |
| Insulation resistance | EN50081-1/EN55022 |
| Insulating strength | EN50081-1/EN55022 |
| Weight (Kg) | 1.16 | 1.92 | 3 |
| Size | 235*115*65 | 295*132*72 | 320*185*72 |
| W*D*H(mm) |
| *Specifications are subject to change without prior notice. |
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
