| Prod Model: |
QZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Brand: |
Jetpower |
Product Description

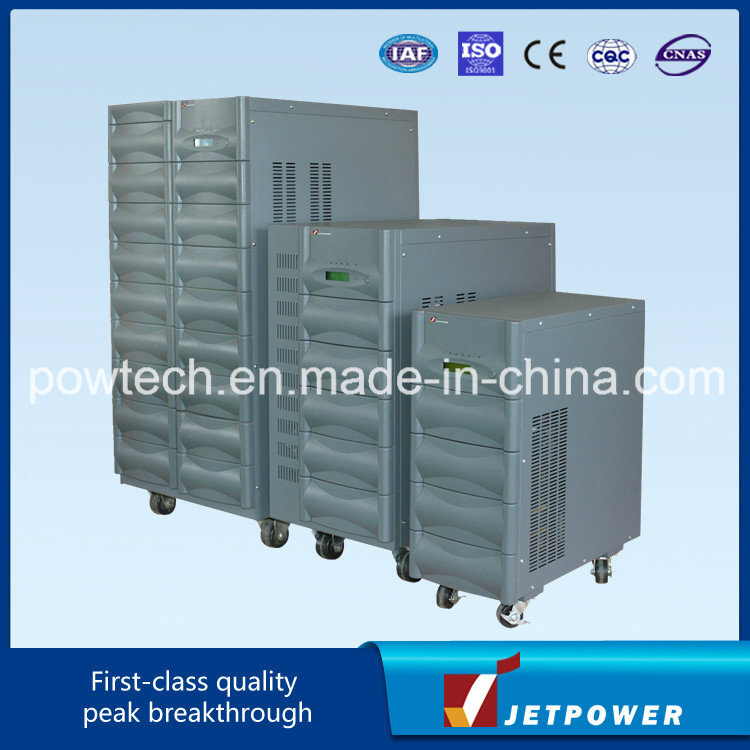

QZ series use the advanced PWM and IGBT inverted technology, capable of precisely controlling all kinds of operation parameters of the UPS, therefore they can provide a high quality and reliable AC power source for your precise equipments. With their unique AVR design that expands the input range, the QZ series are very suitable for harsh environment, reduce battery charge/discharge times, thus extend battery life. Besides, the long backup UPS with large built-in charger (10A) can rapidly recharge external battery so as to provide perfect protection for long blackout.
QZ series utilize microprocessor control to replace traditional analog or digital components in its control board. The design not only increases the MTBF but also provides a precise and reliable output. With proven field experience all over the world, the QZ series provide an optimum choice for complete protection solution from micro computers to large scaled computers, from communication systems to industrial automatic control equipments.
Main Features:
High Reliable
Adopt on-line double-conversion technology
IGBT, PWM inverter together with digital
Design with 100% unbalance protection
100% Non linear load ability
Microprocessor controller
AVR design, expand input voltage range (160vac ~ 300vac)
Key components with redundant design for higher reliability
Comprehensive protection
Lightning and surge protection
EMI/RFI filter protection
Input Overvoltage protection
Output shortcircuit protection
Overload protection (150% for 3s)
Over temperature protection
Super Safety
The output isolate transformer can avoid the destruction of abnormal signal & lightning stoke
With static bypass, repair bypass, battery maintain bypass
Cold start
3.Applications: Data management equipment and system, Automatic control system, Hospital, Mini Office System, Telecommunication System, Bank.
Technical specifications
quartz series,2-60k
2K~20K (1-in/1-out) |
Model |
2K |
3K |
6K |
10K |
15K |
20K |
Capacity (VA/W) |
2K/1.6K |
3K/2.4K |
6K/4.8K |
10K/8K |
15K/12K |
20K/16K |
Input voltage |
220V±25%, 1-phase/3-wire |
Noise |
≤52dB (distance: 1m) |
≤55dB(distance: 1m) |
Sizes (W×D×H,mm) |
530×240×592 |
624×343×760 |
Weight (Kg) (w/o battery ) |
35 |
35 |
53 |
91 |
110 |
122 |
6K3~60K3(3-in/1-out) |
Model |
6K 3-1 |
10K 3-1 |
15K 3-1 |
20K 3-1 |
30K 3-1 |
40K 3-1 |
50K 3-1 |
60K 3-1 |
Capacity (VA/W) |
6K/4.8K |
10K/8K |
15K/12K |
20K/16K |
30K/24K |
40K/32K |
50K/40K |
60K/48K |
Input voltage |
380V±25%, 3-phase/5-wire |
Noise |
≤55dB(distance: 1m) |
≤60dB(distance: 1m) |
Sizes (W×D×H,mm) |
530×240×592 |
624×343×1020
|
624×480×1100 |
Weight (Kg) (w/o battery ) |
53 |
139 |
158 |
178 |
263 |
335 |
400 |
480 |
|
Common parameter
Input |
Frequency |
50Hz/60Hz±10% |
|
Power factor |
≥92% |
Output |
Voltage |
220V±0.5% |
|
Voltage regulation |
±1% (static); ±2% (dynamic) (20ms from 0-100% load change) |
|
Frequency regulation |
50Hz/60Hz±0.05%(on battery mode) |
|
Frequency tracking rate |
<1Hz/s |
|
Dynamic response |
±0.4%(100% load change) |
|
THD |
<3% @ linear load (full load); <5% @ non-linear load (full load) |
|
Waveform |
True sine wave |
Efficiency |
AC input to AC output |
≥91% |
Transfer time |
Mains fails or restores |
0s |
Battery |
Voltage |
192V for 2K to 20K ; 336V for 30K to 60K |
|
Charge time |
8 hours to 90% |
Alarm |
Battery discharge |
Beeps every four (4) seconds when AC mains fails |
|
|
Beep every one (1) second when battery voltage low |
|
|
Continuously beeps when stopping battery discharge |
|
Fault |
Continuously beeps |
Protection & Display |
Battery |
Automatically shutdown when battery low, no fuse switch protection. |
|
Overload |
Automatically jumps to BYPSS when 110~150% overload for 30 seconds and automatically resumes when overload removed. |
|
Over temperature |
Automatically jump to BYPSS when UPS internal temperature >85ºC, |
|
Short circuit |
Current limit, automatic shutdown, fuse and no fuse switch protection |
|
UPS abnormal |
Automatically jumps to BYPASS |
|
Noise filter |
10~10KHz at 40 db;100KHz~100MHz at 70db |
|
LCD display |
Display input voltage/frequency, battery voltage and output power (%) |
Environment |
Temperature |
-10~40ºC |
|
Relative humidity |
10%~90%(no condensation) |
|
Altitude |
150 |
